Availability Policy

Overview

The Availability Policy can be created to alert you whenever a particular monitor or any monitor out of a group of monitors goes down. Let us consider how to create a policy so that an alert is sent out whenever the availability state of a monitor changes.

Navigation

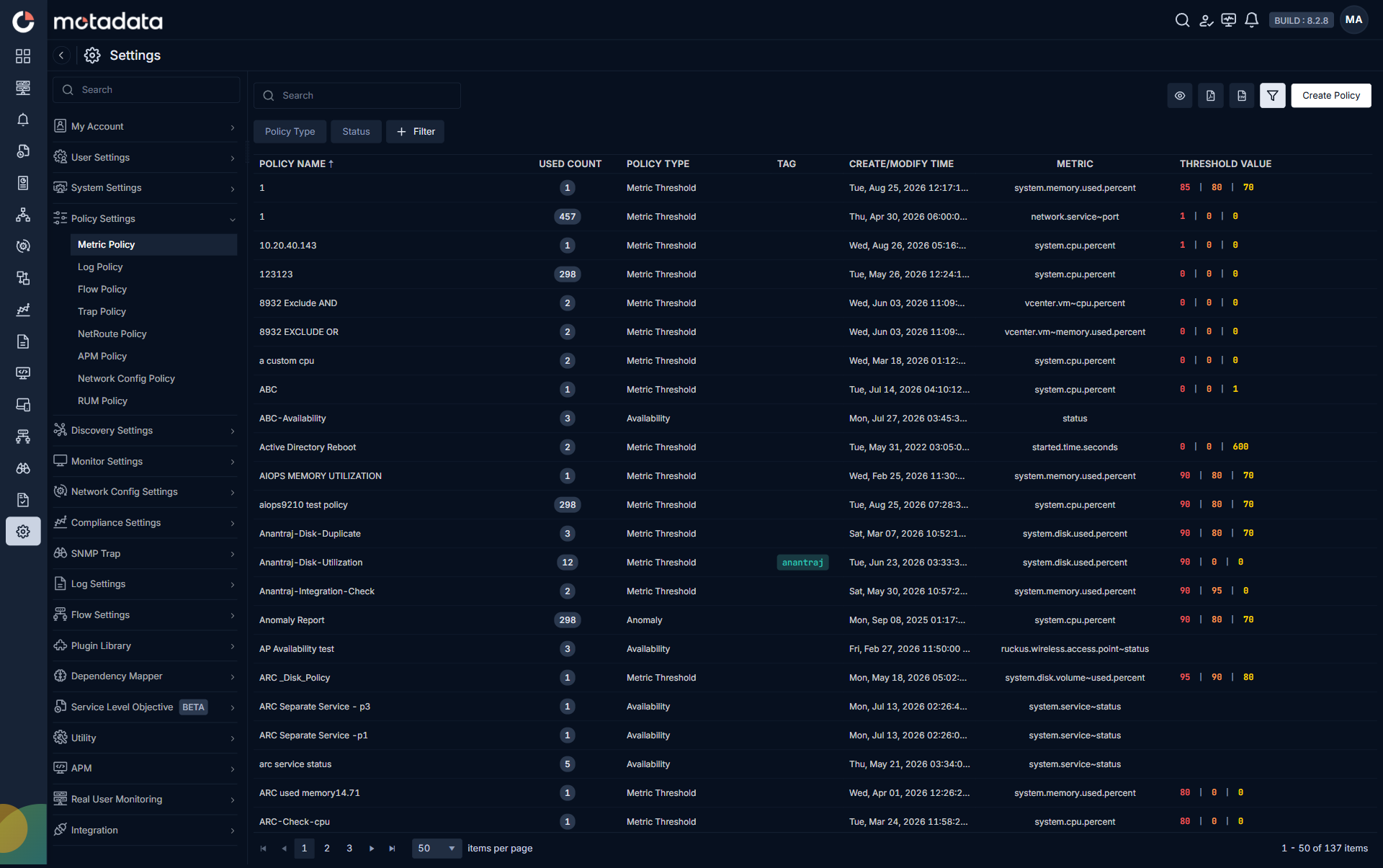

Go to Menu, Select Settings . After that, Go to Policy Settings . Select Metric/Log/Flow policy based on the type of policy you want to create. The list of the created policies is now displayed.

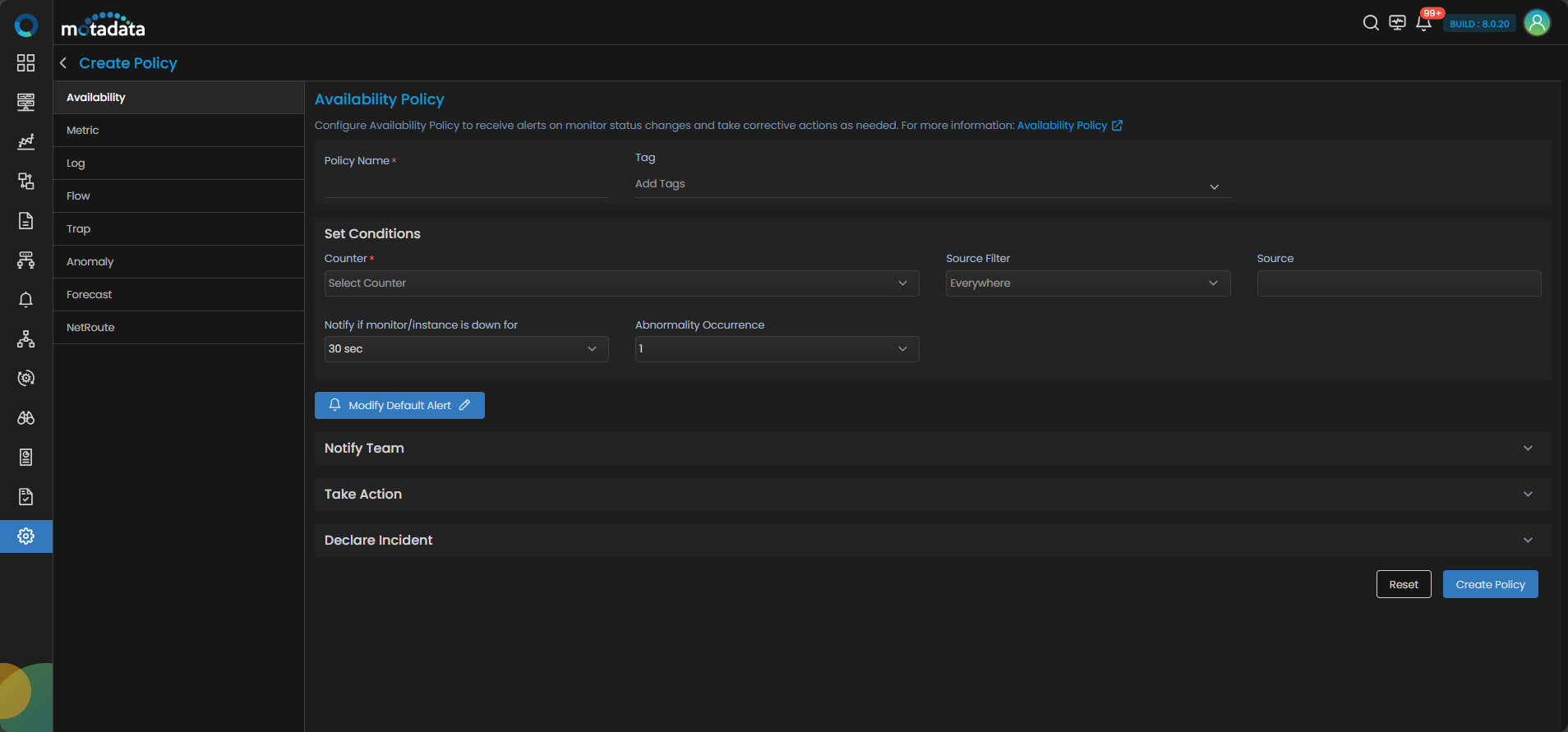

Select to start creating a policy. The screen to create Availability Policy is now displayed.

Configuring Availability policy

Enter the following parameters to create availability policy:

Field	Description
Policy Name	Enter a unique name of the policy you want to create.
Tag	Enter a name to logically categorize the policy. You can quickly and easily identify a policy based on the tag assigned to it. This tag can be used later on to filter the policies as per your requirement.

Set Conditions

Field	Description
Select Counter	Select the metric for which you want to create the policy. Click on the dropdown to view the available options.
Monitor/Group/Tag/Everywhere	- Select Monitor if you want to create the policy for a single monitor. - Select Group if you want to create the policy for a group of monitors. In case you create the policy for a group, it is configured for all the monitors present in the group individually. - Select Tag if you want to create the policy for all monitors that belong a specific Tag. - Select Everywhere if you want to create the policy for all the monitors created in the system. This option is selected by default.
Select Monitor/Select Group/Add Tag	Select the specific Monitor, Group, or the Tag for which you want to create the policy. This dropdown will show results based on the option you have selected in the previous option. Leave this field blank if you have selected 'Everywhere' in the previous option.

note

Make sure that in case you select a specific monitor(s) in the previous selection, the monitor(s) has the metric for which you are creating the policy. In case you select Everywhere, the policy will be created for all the monitors in the system having the metric you have selcted.

Notify if Monitor/Instance is down for	Specify the time window during which the policy will check the monitor/instance to have the 'Down' value for the metric you selected above. This is the evaluation window in which the AIOps will check if the polling value comes up as 'Down'.
Abnormality occurrence	Specify the number of times the monitor/monitor instance should be 'Down' consecutively within the evaluation window specified above to trigger an alert.

Assumption Based Scenarios

To further understand the last two parameters, let us consider a few scenarios with following assumptions in mind:

• The polling period is 1 min.

• The Notify if Monitor/Instance is down for is ‘5 min’

• The Abnormality Occurrence is ‘3’ i.e., the system will check for 3 consecutive occurrences of ‘down’ polling value for the selected metric in the 5-minute window to trigger an alert. Kindly note that the 5 min(in this case) window to check the metric will be reset everytime a value other than 'down' comes up for the metric in question.

Now, let us consider a few scenarios to understand the concept better.

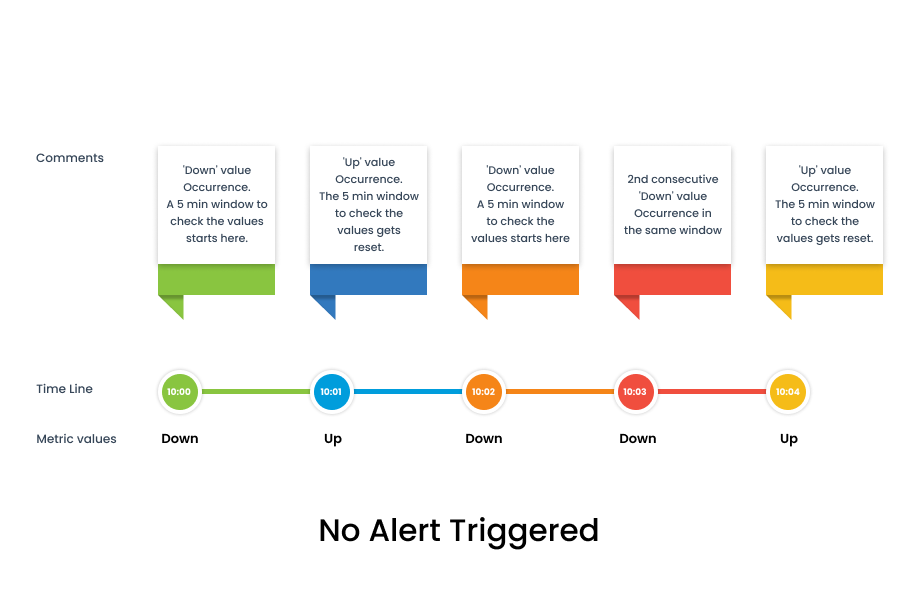

Scenario 1

In this case, no Alert gets triggered because 3 consecutive instances of down occurences do not occurr in the 5 min time window.

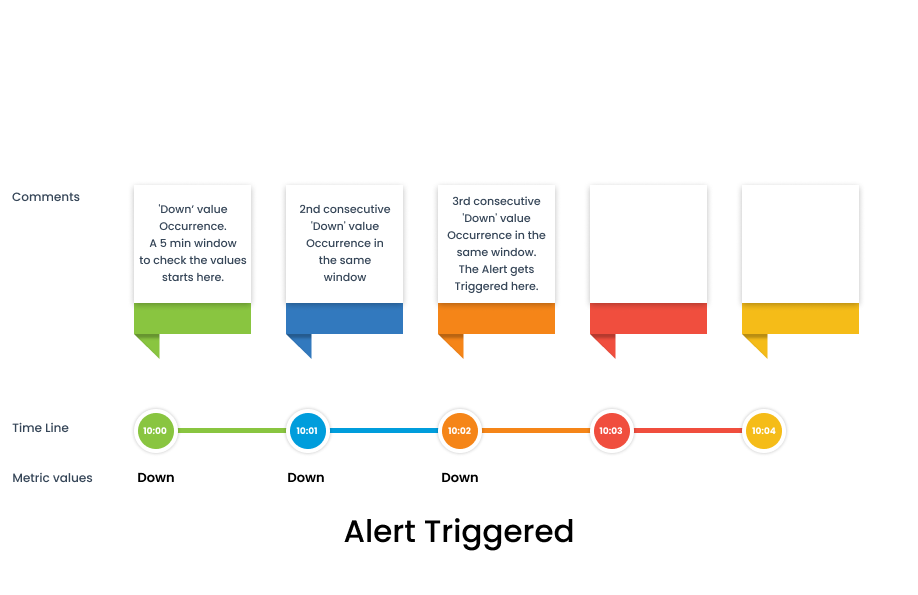

Scenario 2

In this case, alert gets triggered because we get 3 consecutive instances of down occurences at 10:00, 10:01, and 10:02 which falls within the 5 minutes of time window that starts at 10:00 with the 1st 'Down' occurence.

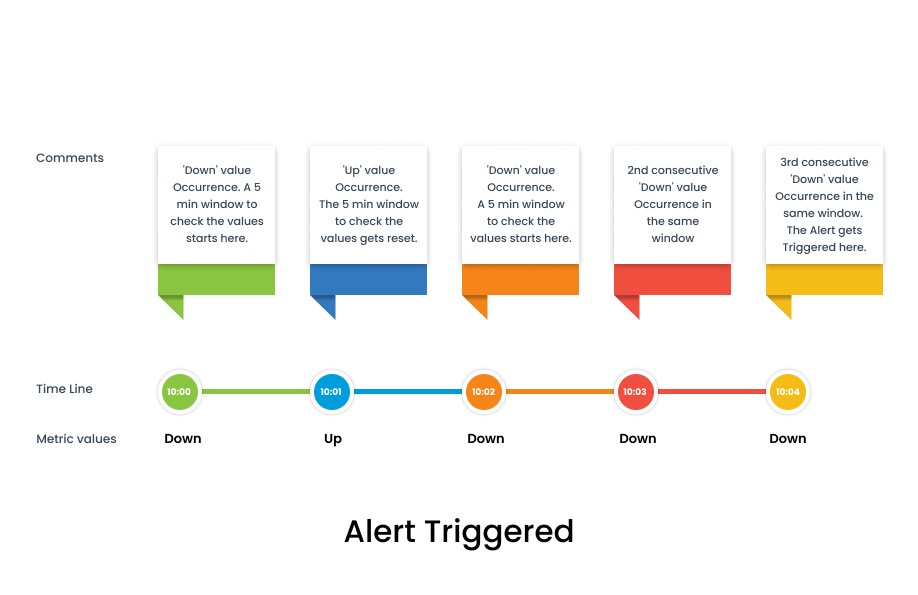

Scenario 3

In this case, a 5 minute window to check the metric value starts at 10:00 but it gets reset at 10:01 due to the occurence of 'Up' value. The alert then gets triggered because we get 3 consecutive instances of 'Down' occurence at 10:02, 10:03, and 10:04.

Now, let us get back to other parameters to start creating the policy.

Notify Team

Field	Description
Notify	There are two ways you can populate this field: Username of registered user in MotadataAIOps (The alert notification will be sent over email and SMS to the mapped email address and phone number respectively). Any email address (In case the recipient whom you wish to notify is not a registered user, you can enter an email address).
If severity is	Select the severity level using individual checkboxes in the dropdown.You can select multiple, all, or a single option as per your requirement. You can also have different recipients notified at different severity levels. For instance, you can notify johndoe@motadata.com when severity level hits Critical and send an alert notification to janedoe@motadata.com when severity level is Major.
Play Sound	Activate this toggle to enable sound notifications when an alert is triggered.
If Severity is	Choose the severity level at which the sound notification should be triggered. This option becomes visible only when the Play Sound toggle is switched ON.
Renotification	Turning on the toggle will resend the alert at a specific interval defined by you. If turned off, Motadata AIOps will not renotify about the alert.
Renotify	Similar to Notify Team field, enter the username or email address of the recipient. Also choose a preset duration for renotification along with the severity level at which they system will renotify you if the alert severity is not changed.
Do not renotify if acknowledged	If the toggle is turned on, Motadata AIOps will not send a renotification to the recipient if they mark the alert as acknowledged.

Take Action

Field	Description
De-provision the Monitor/Instance when Down Occurrences	Select the time period for which you want the monitor to be de-provisioned after it goes down.
Action to be taken	Select a runbook from the dropdown to be executed when the alert is triggered.
When Status is	You can use this option to map the action you selected in the previous step to status of the alert. This means that you can execute different runbooks based on the whether the alert is in the 'Down' state or 'Clear' state respectively.
Create New	Select this button to start creating a new runbook which you might want to assign to the policy you are creating.

Select the Create Policy button to create the policy based on the details entered.

Select the Reset button to erase all the current field values, if required.
