Proxy Server Settings
Overview
Proxy server settings allow users to configure a proxy server for network communication within Motadata AIOps. A proxy server acts as an intermediary between the Motadata AIOps and the internet, enhancing security, performance, and control over network traffic.
To configure the proxy server settings, users need to provide specific details related to the proxy server, including the proxy server address, port, timeout, proxy type, and authentication requirements.
We will provide step-by-step instructions on how to configure the proxy server settings in the Motadata AIOps. We will cover the necessary details required to ensure successful configuration and usage of this feature.
Navigation
Go to Menu. Select System Settings
. After that, select Proxy Server Settings. The proxy server settings screen will now be displayed.

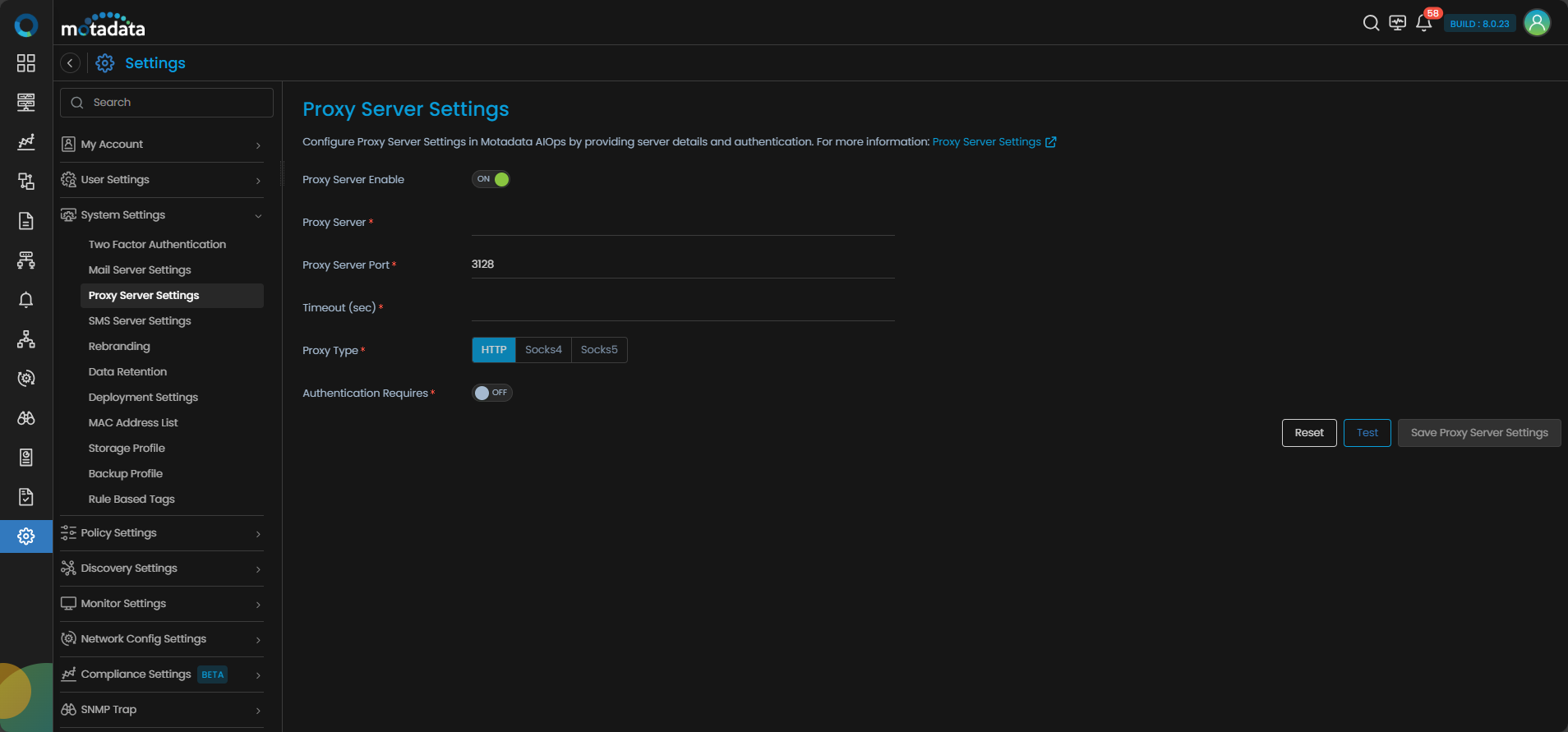

Proxy Server Settings Screen
The proxy server settings screen allows you to enter the required information for configuring the proxy server in Motadata AIOps. Below is a summary of the available fields:
| Option | Description |
|---|---|
| Proxy Server Enable | Switch to enable or disable the proxy server in Motadata AIOps. |
| Proxy Server | Address of the proxy server. |
| Proxy Server Port | Port number for the proxy server communication. |
| Timeout (Sec) | Timeout duration in seconds for the connection. |
| Proxy Type | Type of proxy server being used (HTTP, SOCKS4, SOCKS5). |
| Authentication Required | Switch to specify if authentication is required. |
| User Name | Username for proxy server authentication (if required). |
| Password | Password for proxy server authentication (if required). |
Once you have entered all the necessary details in the respective fields, click on the Test button to verify the connection with the proxy server. A successful connection test ensures that the provided settings are correct.
Once you have entered all the necessary details in the respective fields, click on the Save Proxy Server Settings button to save the configured proxy server settings.
Note that incorrect or incomplete proxy server settings may result in network connection issues. Ensure that you double-check all the provided details before saving the settings.
