MAC Address List

Overview​

The MAC Address List feature in Motadata AIOps allows users to manage a list of MAC addresses associated with devices in their network infrastructure. MAC addresses, also known as Media Access Control addresses, are unique identifiers assigned to network interface controllers (NICs) for communication over a network.

The MAC Address List feature provides a centralized repository for storing and managing MAC addresses for all the devices discovered in Motadata AIOps.

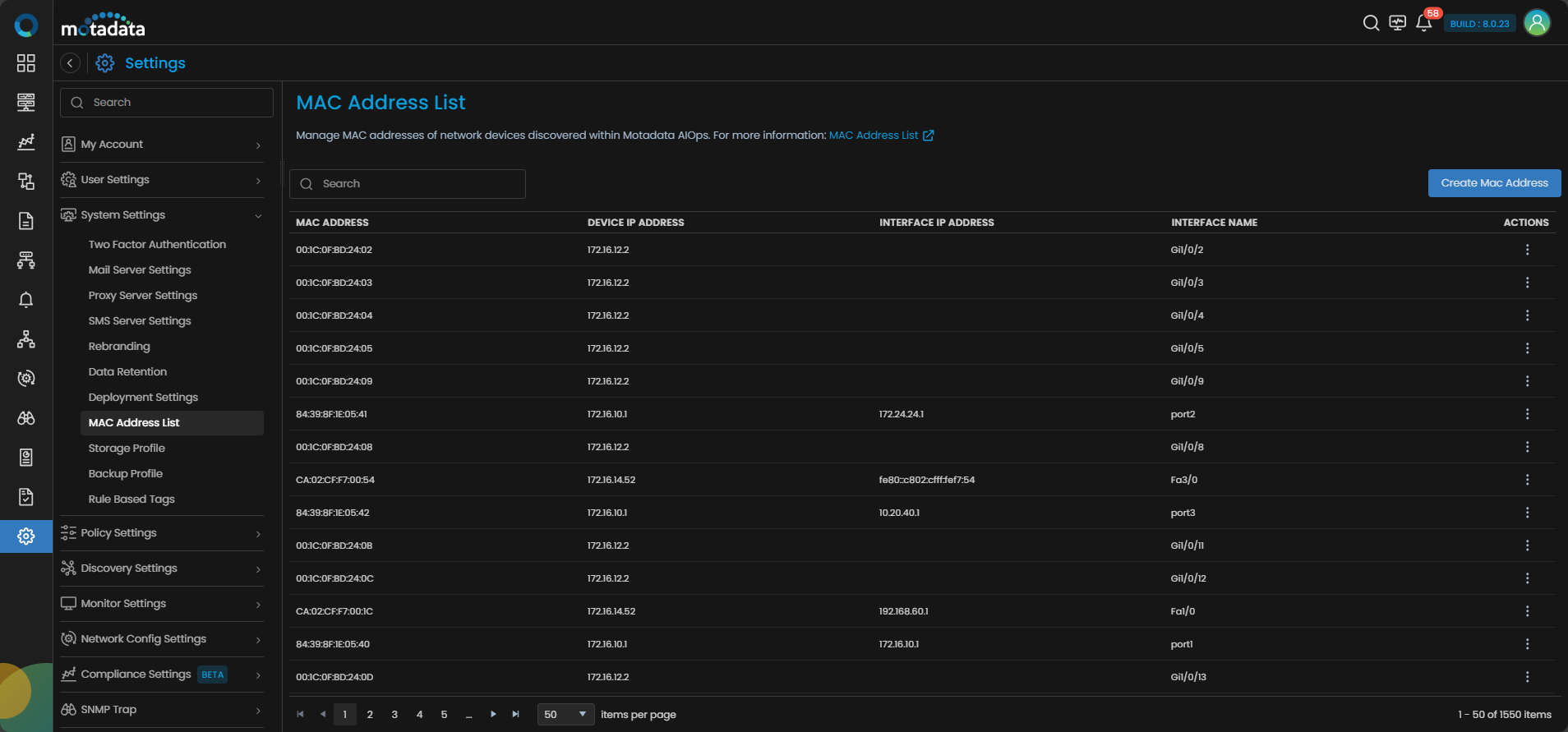

Go to Menu. Select System Settings . After that, select MAC Address List. The MAC Address list is now displayed.

Managing MAC Addresses​

The MAC Address List screen provides options to add, edit, and delete MAC addresses. Follow the steps below to perform these operations:

Adding MAC Addresses​

To add a new MAC address to the list, follow these steps:

  1. Click on the Create MAC Address button on the MAC Address List screen.
  2. Enter the MAC address in the provided field. Ensure that the MAC address is entered in the correct format (e.g., 00:1A:2B:3C:4D:5E).
  3. Enter the other required details such as Device IP Address, Interface IP Address, and Interface Name.
  4. Click to add the MAC address to the list.

Editing MAC Addresses​

To edit an existing MAC address in the list, follow these steps:

  1. Locate the MAC address in the list that you want to edit.
  2. Click on the Edit button associated with the MAC address.
  3. Modify the details as required.
  4. Click to save the changes.

Deleting MAC Addresses​

To delete a MAC address from the list, follow these steps:

  1. Locate the MAC address in the list that you want to delete.
  2. Click on the Delete button associated with the MAC address.
  3. Confirm the deletion in the prompt that appears.

Please exercise caution when deleting MAC addresses, as it can impact the accuracy of network-related operations and monitoring.
