NetRoute Monitoring
Overview
NetRoute within Motadata AIOps delivers comprehensive network visibility by presenting a topological view of end-to-end network paths. This feature enables users to gain a clear understanding of traffic flow and routing across their infrastructure.
Real-time monitoring capabilities allow for the detection of route changes and the analysis of multi-path traffic, while hop-by-hop performance metrics highlight active paths and identify critical issues such as packet loss and slowdowns.
By providing historical path analysis, NetRoute facilitates in-depth insights into network availability, latency, and bandwidth utilization over time. This historical perspective is crucial for understanding network behavior and identifying recurring issues.
Navigation
Go to Menu. Select Nonitor Settings
. After that, select NetRoute Settings. The configuration page for creating a NetRoute is now displayed.

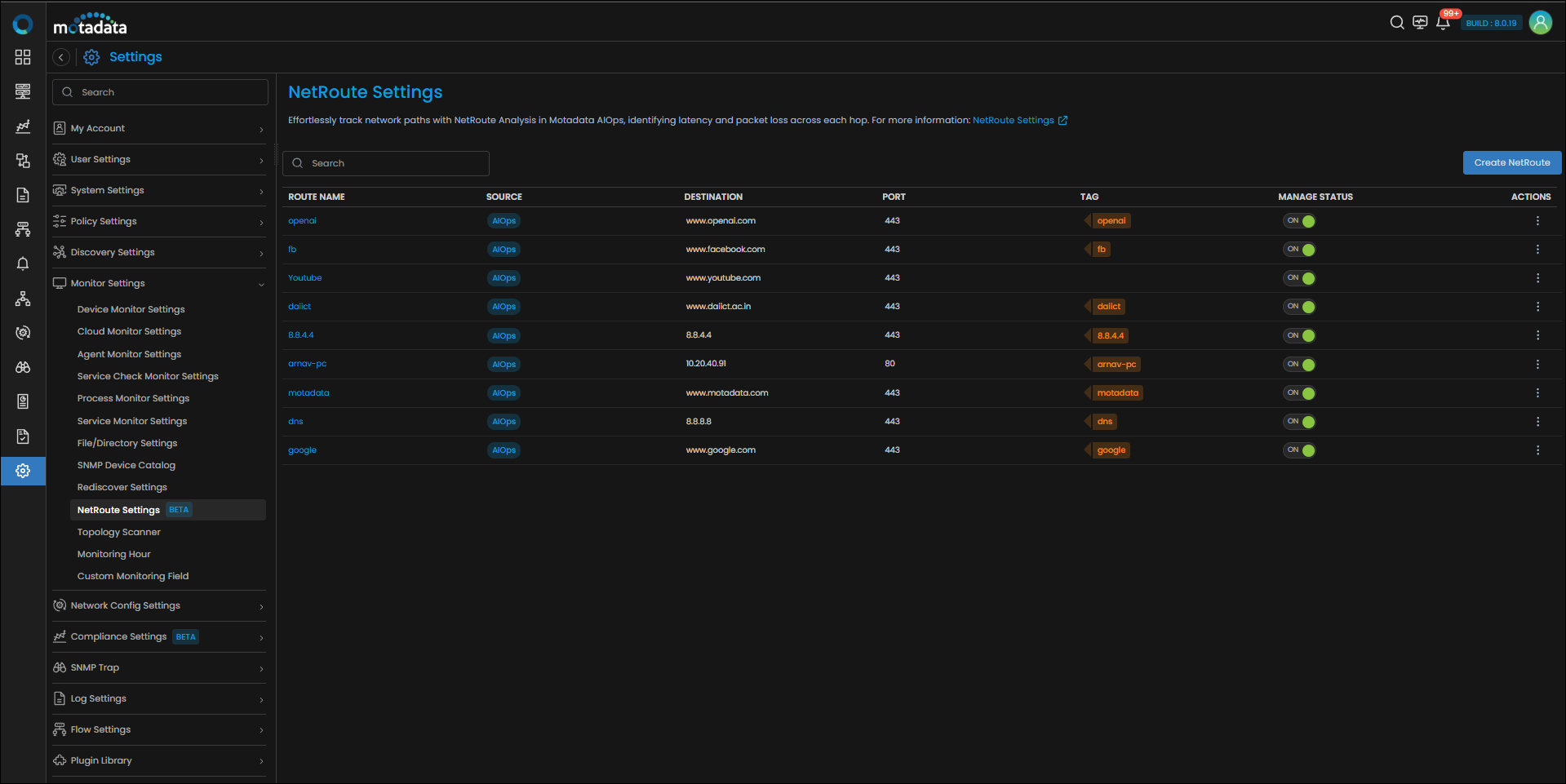

NetRoute Settings Screen
You shall be able to view the below options on the screen:
| Field | Description |
|---|---|
| Route Name | Displays the description for the path. |
| Source | Displays the name/IP of the AIOps server. |
| Destination/IP/Host/URL | Displays the name/IP of the path destination device. |
| Port | Displays port number information. |
| Tags | Displays associated tags to the NetRoute. |
| Manage Status | Displays if the path is being managed or not by AIOps. |
| Action | Below are the actions available for a NetRoute: - Edit: Edit details for the NetRoute. - Delete: Delete the specific NetRoute. |
Creating a NetRoute in Motadata AIOps
Click on the Create NetRoute button to start creating a NetRoute. You will need to provide below-mentioned parameters to configure it:
| Field | Description |
|---|---|
| Path Name | Provide a descriptive name for the path. |
| Destination/IP/Host/URL | Provide a Hostname, Host IP, or a URL for the destination device. |
| Port | Mention the port number of the destination device. |
| Interval | Mention the desired interval between two consecutive polls (in minutes). |
| Select Source | Use the dropdown menu to select a source monitor. |
| Tag | Provide a tag to the NetRoute for easy grouping and recognition. |
- Click on Create NetRoute to save and apply the configuration.
- Click on Reset to clear all fields and start afresh.
Define a NetRoute Policy
Once you have configured a NetRoute, it can be used to create policies which will utilize severity-based indicators to generate actionable alerts and notify users through default channels. Creating a policy ensure a proactive alert mechanism enabling efficient network management and rapid troubleshooting which further minimized potential disruptions.
Refer to NetRoute Policy page under Basic Policies section to create a NetRoute Policy.
