Preset Dashboards

Preset Dashboards in Motadata AIOps provide you with graphical representations of flow datasets, giving you meaningful insights into your network. By default, this screen displays the information for all devices sending their flow to Motadata AIOps.

Actions available on the preset dashboards​

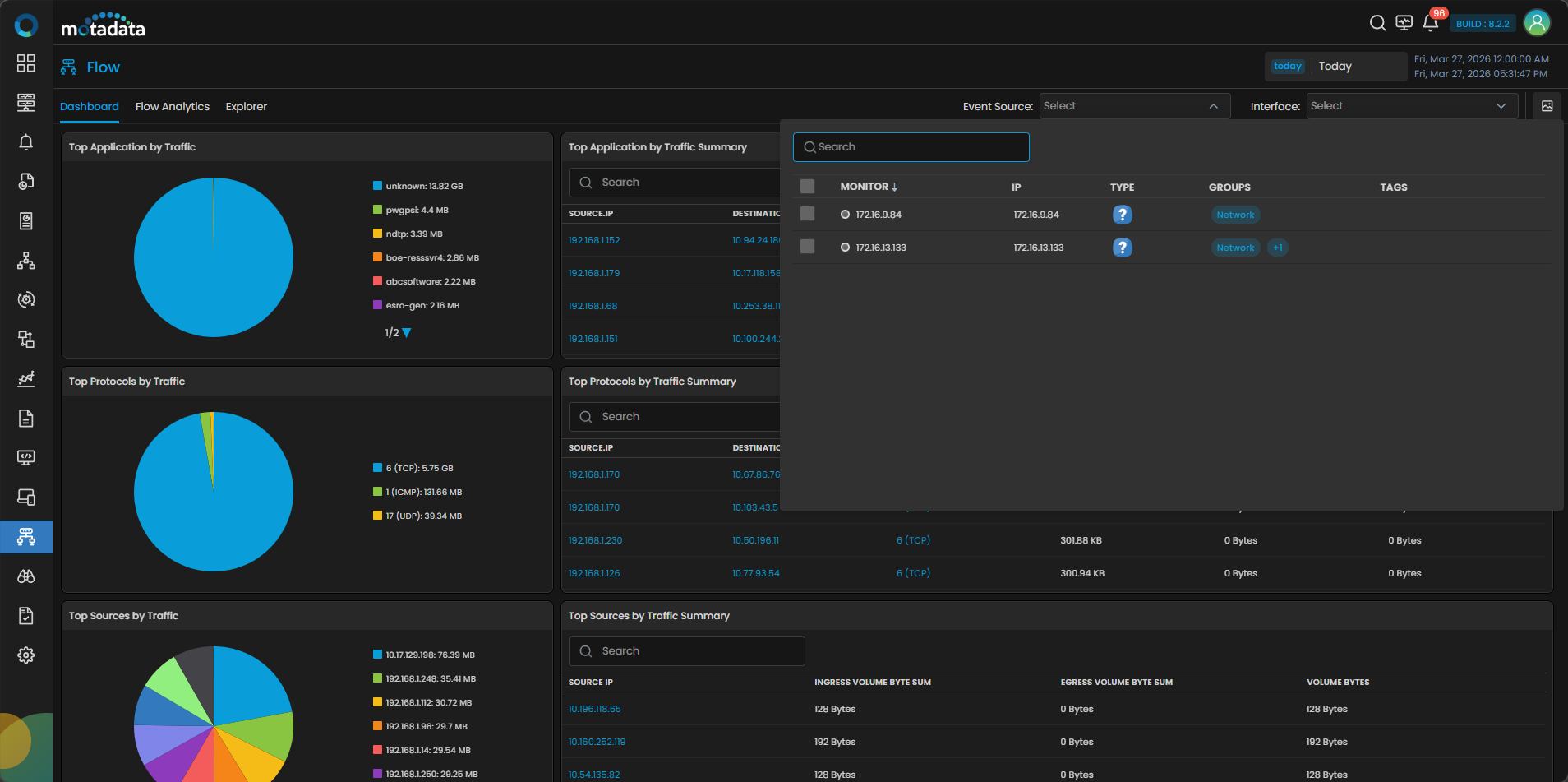

Select the Event Source​

To display flow data on the dashboard for a specific event source, follow these steps:

  1. Click on the Event Source drop-down at the top of the screen above the dashboard.

  2. A dropdown menu containing a list of all devices sending their flow data to Motadata AIOps will appear.

  3. Select the desired event source(s) from the list to display their data on the dashboard.

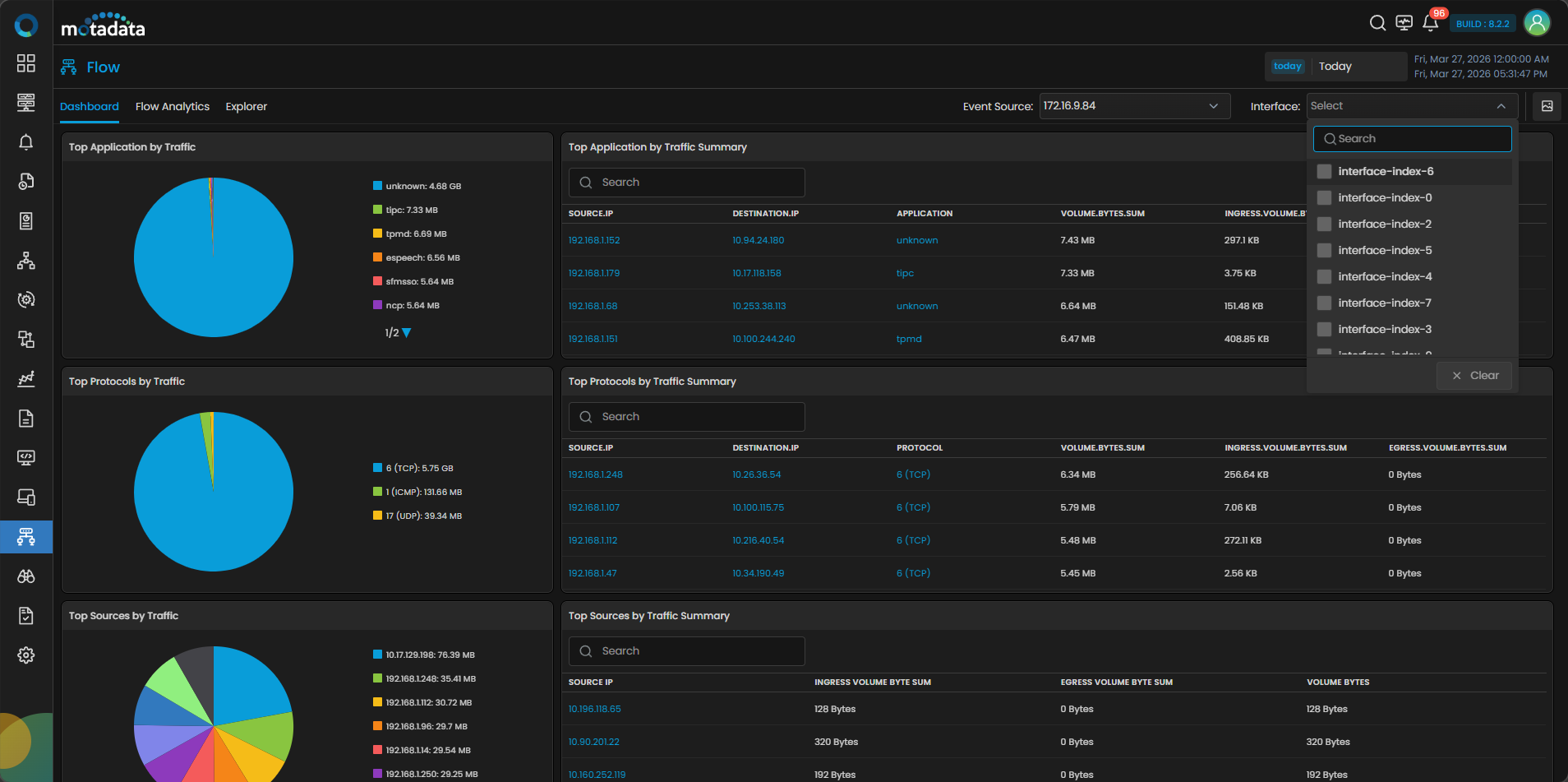

Select the Interface​

To display flow data on the dashboard for a specific interface, follow these steps:

  1. Click on the Interface drop-down at the top-right of the screen above the dashboard.

  2. A dropdown menu containing a list of all interfaces for which flow data is being sent to Motadata AIOps will appear.

    note

    Interfaces are only available in the dropdown if there is flow data moving in or out of that interface, and if the corresponding device is configured as a Monitor.

  3. Select the desired interface(s) from the list to display their data on the dashboard.

Take a screenshot of the dashboard​

Select to take a screenshot of the dashboard.

Change the time period of the flow data​

Select to change the time period for which flow data is shown on the dashboard.
