How to analyze the flow data?

Overview​

Motadata ObserveOps (formerly known as AIOps) provides a powerful tool called Flow Explorer for analyzing network flows. It efficiently processes large amounts of flow data and represents it visually using a Sankey diagram.

To ensure optimal network performance and prevent issues caused by bandwidth hogs and high traffic, it's crucial to proactively identify and resolve them before they cause problems.

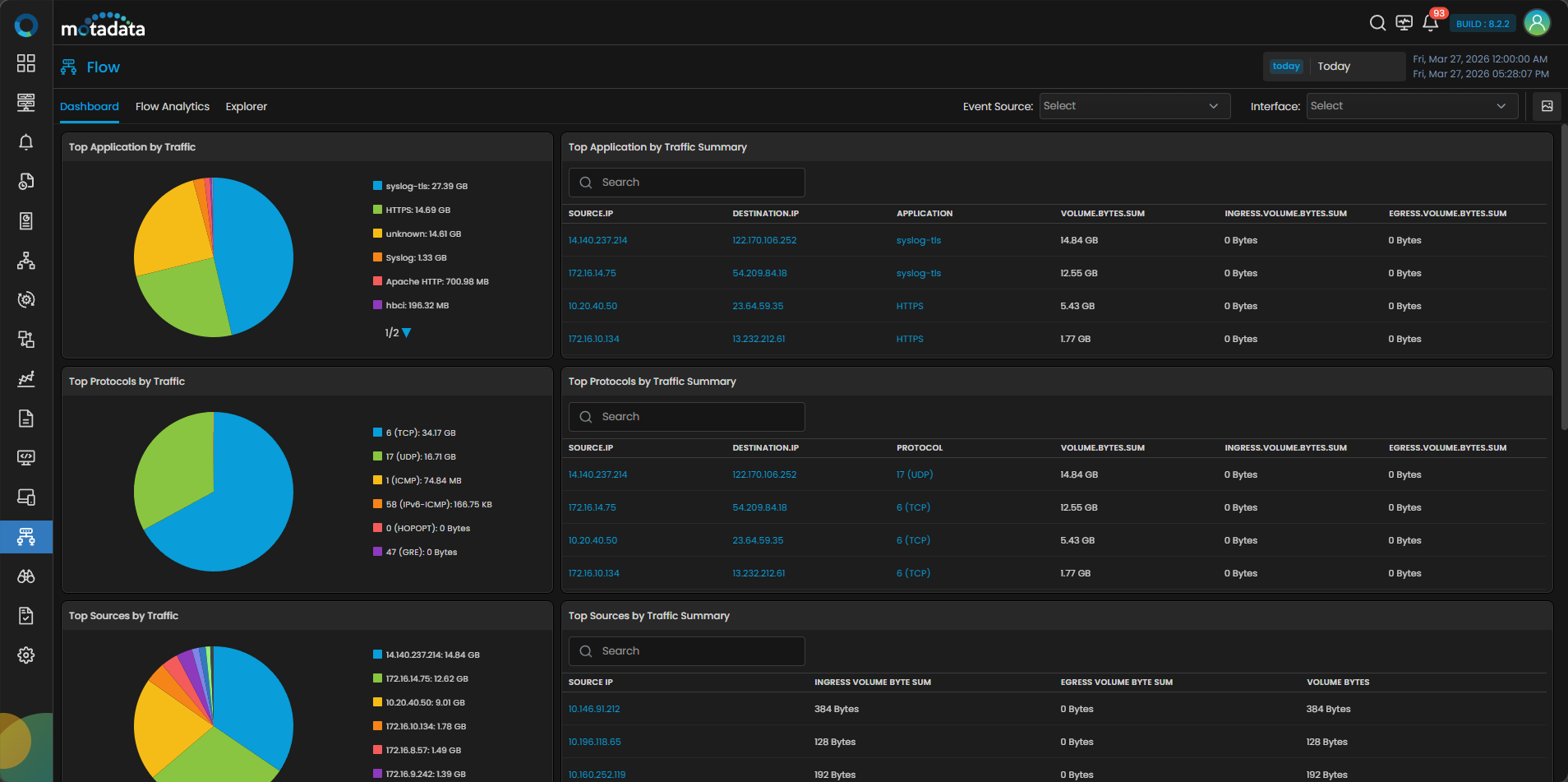

Go to the Menu, Select Flow Explorer . The Flow Dashboard screen is now displayed.

Flow Analysis in Motadata ObserveOps (formerly known as AIOps)​

The flow analysis in Motadata ObserveOps (formerly known as AIOps) could be done in one of the following ways:

  • Preset Dashboards: The flow analytics screen includes multiple inbuilt widgets that represent important data sets such as Event Per Second, Total Events, Flow Volume, Flow Events Per Second, Top Application By Traffic, etc.

  • Flow Explorer: This tool enables visualizing the flow for all devices sending their flow data to Motadata ObserveOps (formerly known as AIOps), enabling the user to analyze traffic patterns, monitor network bandwidth usage at a granular level, identify the users with maximum bandwidth usage, and trace conversations between internal and external endpoints.

Types of Flow supported in Motadata​

  • sFlow (v5/v9)
  • jFlow
  • NetFlow
  • NBAR2
  • IPFIX (v10)
