SNMP Trap Profile
Overview
The SNMP Trap Profile in Motadata AIOps is a crucial feature that allows the application to identify and process SNMP traps. Each SNMP Trap Profile is mapped to a unique combination of Trap OID and severity, which helps Motadata AIOps to first identify and then assign a severity to a trap when it is received by Motadata AIOps. The SNMP trap profile also has a message mapped to it. This message helps you to identify what the issue is about.
Navigation
Go to Menu. Select Settings. Then, Select SNMP Trap
. After that, Select SNMP Trap Profile. The screen to view and create SNMP Trap Profiles is now displayed.

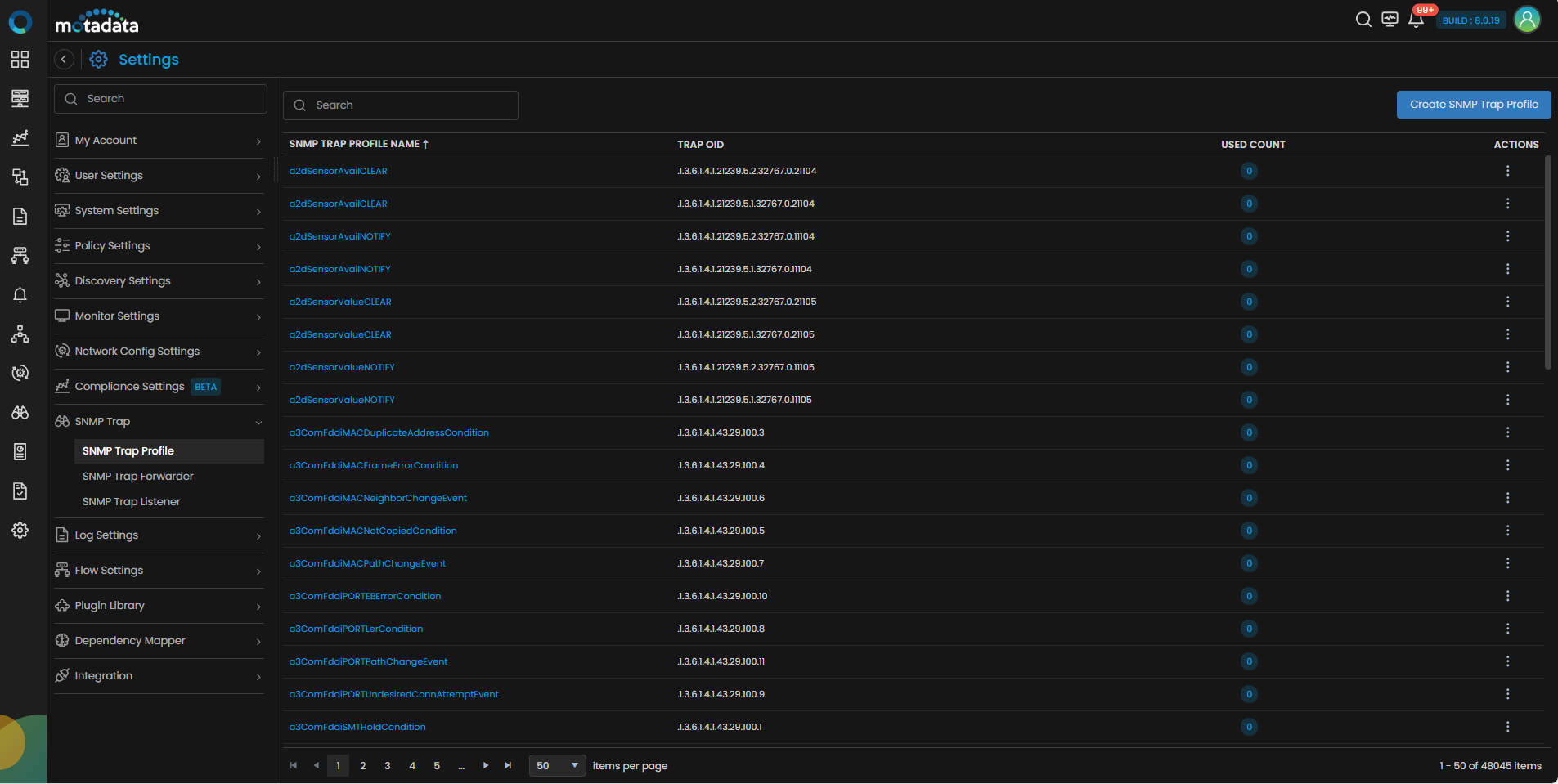

SNMP Trap Profile Screen
The following fields are available on the SNMP Trap Profile screen:
| Field | Description |
|---|---|
| SNMP Trap Profile Name | This name is used to identify an SNMP Profile. |
| Trap OID | This field is used to indicate the OID corresponding to the Trap. |
| Severity | This field is used to indicate the severity of the trap. This severity is generally used to understand the urgency and the impact of the trap. |
| Used Count | This count is used to indicate the number of SNMP forwarders using the profile. |
| Actions | Select the option Edit SNMP Trap Profile to modify any details of the trap profile that you might have created. |
How to create an SNMP Profile?
In addition to the inbuilt set of trap profiles, you can also create custom trap profiles for specific devices or applications for which a trap profile is not already available in the inbuilt set of profiles. In case you are able to view a trap in trap explorer but the name, message, and the severity corresponding to that trap is not visible, it means that the SNMP trap profile corresponding to that trap OID is not available. You can create a SNMP trap profile for that trap OID so that Motadata AIOps is able to identify the trap.
In summary, the SNMP Trap Profile in Motadata AIOps enables the application to identify and process SNMP traps efficiently. By creating and configuring the SNMP Trap Profiles, you can ensure that the application assigns the appropriate severity to each trap, enabling you to prioritize and resolve issues quickly.

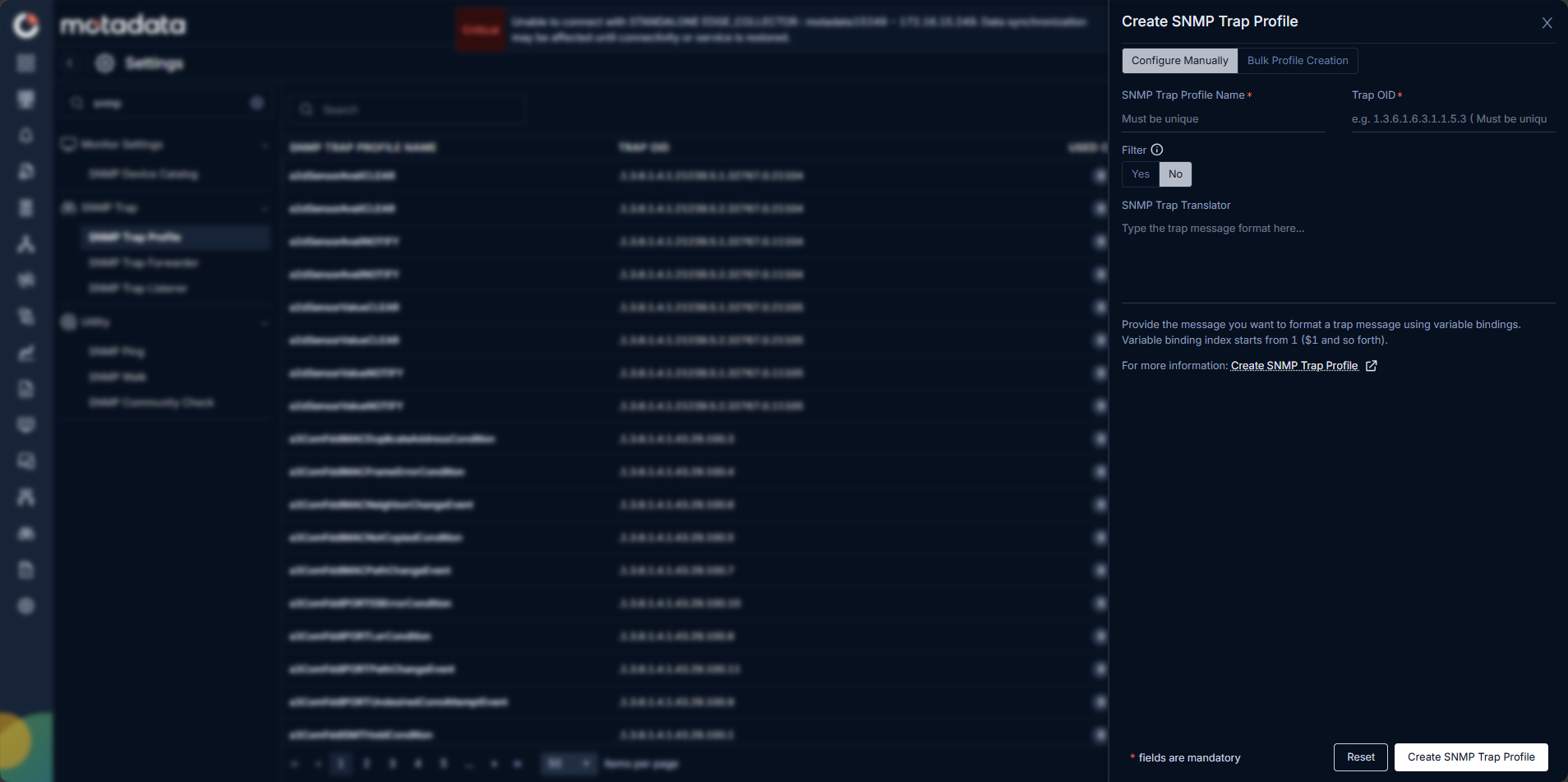

Select
to create a new SNMP Trap profile.

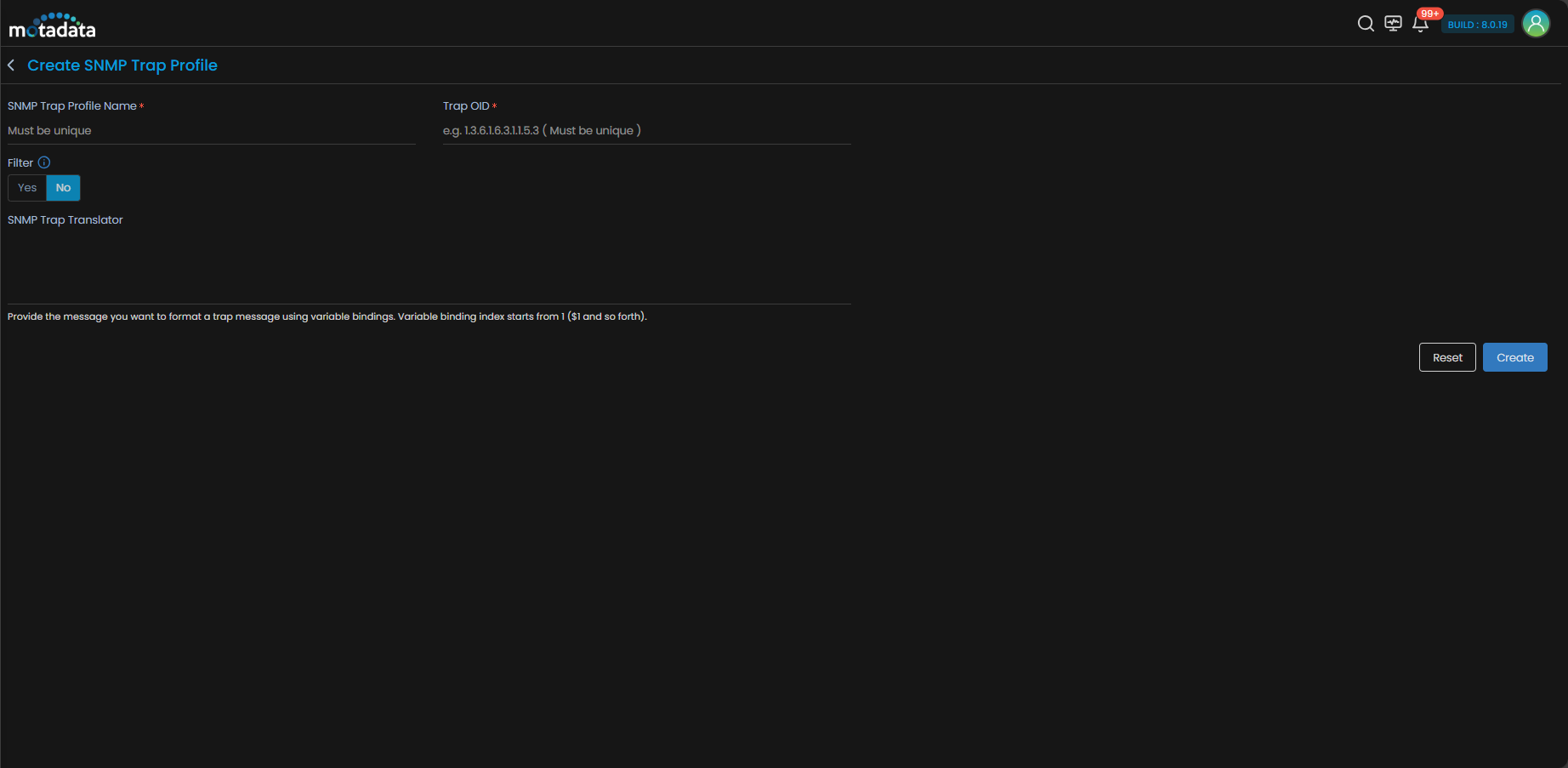

The screen to create a new SNMP Trap profile is now displayed.
The following fields are available on the Create SNMP Trap Profile screen:
| Field | Description |
|---|---|
| SNMP Trap Profile Name | Enter the name of the SNMP Trap Profile you wish to create. |
| Trap OID | Enter the Trap OID of the trap for which you are creating the SNMP Trap Profile. |
| Filter | - Yes: Select this option if you want Motadata AIOps to drop this trap and in turn not show it in the Trap Explorer. - No: Select this option if you want Motadata AIOps to ingest this trap and show it in the Trap Explorer. |
| Severity | Enter the Severity that you wish to assign to the trap. |
| SNMP Trap Translator | Enter the message that you wish to display in the trap explorer after the trap is received by Motadata AIOps. |
Select the Create button to create the SNMP trap profile.
Select the Reset button to erase all the current field values, if required.
