Nutanix VM
- version: 1.0
- Compatibility: v 7.5.500
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), SSL Enabled (Mandatory), Username (Optional), Password (Optional), Metric Collection Interval (Mandatory)
- Operation: Collects information from switch devices.

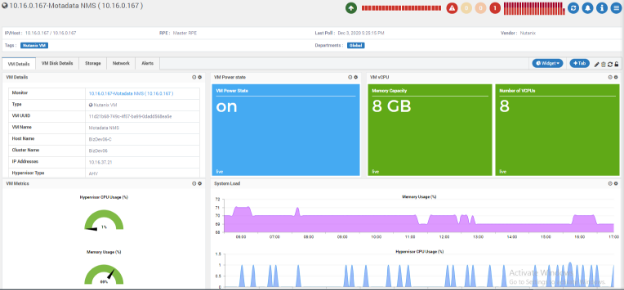

Nutanix VM Overview
- Plugin-Metrics:
| Metric | Data Type |
|---|---|
| Total Disk Capacity (MB) | Numeric |
| Memory Capacity (MB) | Numeric |
| Memory Reserved Capacity (MB) | Numeric |
| Number of VCPUs | Numeric |
| Number of Network Adapters | Numeric |
| Cluster Name | String |
| Cluster UUID | String |
| Cluster IP | String |
| Hypervisor Type | String |
| Memory Usage (%) | Numeric |
| Hypervisor Memory Usage (%) | Numeric |
| VM Name | String |
| VM UUID | String |
| VM Power State | String |
| Guest OS | String |
| IP Addresses | String |
| Host Name | String |
| Host UUID | String |
| Write IOPS | Numeric |
| Read IOPS | Numeric |
| IOPS | Numeric |
| Average IO Latency (usecs) | Numeric |
| IO Bandwidth kBps | Numeric |
| Controller Write IOPS | Numeric |
| Controller Read IOPS | Numeric |
| Controller IOPS | Numeric |
| Controller Average IO Latency (usecs) | Numeric |
| Controller IO Bandwidth kBps | Numeric |
| Hypervisor Write IOPS | Numeric |
| Hypervisor Read IOPS | Numeric |
| Hypervisor IOPS | Numeric |
| Hypervisor Average IO Latency (usecs) | Numeric |
| Hypervisor IO Bandwidth kBps | Numeric |
| Hypervisor CPU Usage (%) | Numeric |
| Read IO Bandwidth (kBps) | Numeric |
| Write IO Bandwidth (kBps) | Numeric |
| Hypervisor Recieved (Bytes) | Numeric |
| Hypervisor Transmitted (Bytes) | Numeric |
| Total VM Unresolved Alerts | Numeric |
Instance Columns:
Disk
| Metric | Data Type |
|---|---|
| Disk | String |
| Disk Address | String |
| Disk Capacity (MB) | String |
| Disk Write IOPS | Numeric |
| Disk Read IOPS | Numeric |
| Disk IOPS | Numeric |
| Disk Average IO Latency (usecs) | Numeric |
| Disk IO Bandwidth kBps | Numeric |
| Disk Controller Write IOPS | Numeric |
| Disk Controller Read IOPS | Numeric |
| Disk Controller IOPS | Numeric |
| Disk Controller Average IO Latency (usecs) | Numeric |
| Disk Controller IO Bandwidth kBps | Numeric |
| Disk Hypervisor Write IOPS | Numeric |
| Disk Hypervisor Read IOPS | Numeric |
| Disk Hypervisor IOPS | Numeric |
| Disk Hypervisor Average IO Latency (usecs) | Numeric |
| Disk Hypervisor IO Bandwidth kBps | Numeric |
NIC
| Metric | Data Type |
|---|---|
| NIC | String |
| NIC Mac Address | String |
| NIC IP Address | String |
| NIC isConnected | String |
Alert
| Metric | Data Type |
|---|---|
| Alert | String |
| Alert Issue | String |
| Alert Affected Entities | String |
| Alert Severity | String |
| Alert Create Time | String |
| Alert Last Occurence Time | String |
| Alert Acknowledged | String |
