Juniper Router
- version: 8.4
- Compatibility: v 7.7.4
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: Improvement: SNMP Polling Capability
- Plugin-Metrics:

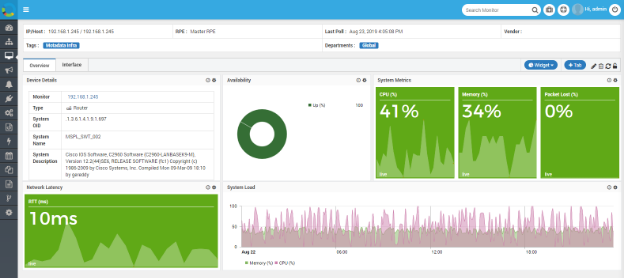

Router Overview
- version: 8.3
- Compatibility: v 7.6.6
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: Improvement: SNMP Polling Capability
- Plugin-Metrics:
Router Overview
- version: 8.2
- Compatibility: v 7.6.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: Improvement: Polling Enhancement
- Plugin-Metrics:
Router Overview
- version: 8.1
- Compatibility: v 7.6.2
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: New Feature: Improved Rate Calculation
- Plugin-Metrics:
Router Overview
- version: 7.9
- Compatibility: v 7.6.1
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: New Feature: Discovery via SNMP is added
- Plugin-Metrics:
Router Overview
- version: 7.8
- Compatibility: v 7.6.1
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: Addition of Flag for Duplication with values YES or NO. Default: NO
- version: 7.7
- Compatibility: v 7.6.0
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from Last Version: Performance Improvement for Polling Functionality
- version: 7.6
- Compatibility: v 7.6.0
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
- Change from last version: Added new default templates
- Plugin-Metrics:
Router Overview
| Metric | Data Type |
|---|---|
| Uptime (Seconds) | Numeric |
| Uptime | String |
| Mac Address | String |
| System Location | String |
| System Name | String |
| System OID | String |
| System Description | String |
| CPU (%) | Numeric |
| Memory (%) | Numeric |
| RTT (ms) | Numeric |
| Packet Lost (%) | Numeric |
| 64 Bit Counter | String |

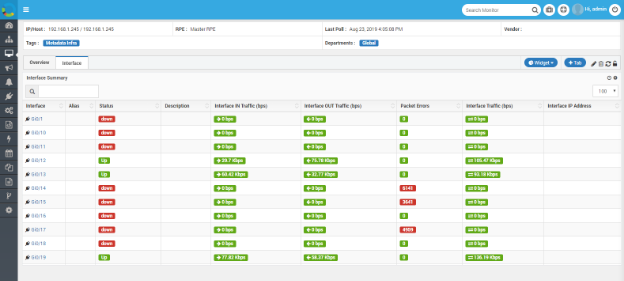

- Instance Metric:
Router Instance Metrics
| Instance Metric | Data Type |
|---|---|
| Interface: | String |
| Interface Index: | String |
| Interface Alias: | String |
| Interface Description: | String |
| Interface Type: | String |
| Interface Operational Status: | String |
| Interface Address: | String |
| Interface Admin Status: | String |
| Interface Speed (Mbps): | Numeric |
| Interface IN Traffic (bps): | Numeric |
| Interface OUT Traffic (bps): | Numeric |
| Interface Traffic (bps): | Numeric |
| Interface IN Traffic Volume (Bytes): | Numeric |
| Interface OUT Traffic Volume (Bytes): | Numeric |
| Interface Traffic Volume (Bytes): | Numeric |
| Interface OUT Utilization (%): | Numeric |
| Interface IN Utilization (%): | Numeric |
| Interface Utilization (%): | Numeric |
| Interface Packet Discards: | Numeric |
| Interface Packet Errors: | Numeric |
| Interface OUT Packets: | Numeric |
| Interface Packets: | Numeric |
| Interface IN Packets: | Numeric |
| Interface Packet Lost (%): | Numeric |
| Interface IP Address: | String |
| Interface Last Change: | String |
| Interface IN Traffic (Bytes): | Numeric |
| Interface OUT Traffic (Bytes): | Numeric |
| Interface Traffic (Bytes): | Numeric |
- Data Models
data-models:
primary: “Juniper Firewall Metrics†instance:
- name: “Juniper Firewall Interface Metrics†columns: “Interface,Interface Index,Interface Alias,Interface Description,Interface Type,Interface Operational Status,Interface Address,Interface Admin Status,Interface Speed (Mbps),Interface IN Traffic (bps),Interface OUT Traffic (bps),Interface Traffic (bps),Interface IN Traffic Volume (Bytes),Interface OUT Traffic Volume (Bytes),Interface Traffic Volume (Bytes),Interface OUT Utilization (%),Interface IN Utilization (%),Interface Utilization (%),Interface Packet Discards,Interface Packet Errors,Interface OUT Packets,Interface Packets,Interface IN Packets,Interface Packet Lost (%),Interface Last Change,Interface IP Address,Interface IN Traffic (Bytes),Interface OUT Traffic (Bytes),Interface Traffic (Bytes)â€
Juniper Router
- version: 7.5
- Compatibility: v 7.5.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Version (Mandatory), Community, Security Level, Authentication Protocol, Privacy Protocol, Security User Name, Authentication Password, Private Password, Monitor Unused Port (Mandatory), Metric Collect Interval (Second)
- Operation: Collects information from Router devices.
