Linux SNMP
- Version: 8.8
- Compatibility: v 7.7.9
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from last version: Bug Fix: An incorrect uptime metric data value was displayed for the Linux SNMP device.
- Version: 8.7
- Compatibility: v 7.7.4
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from last version: Performance Improvement
Linux SNMP Device
- Version: 8.6
- Compatibility: v 7.7.1
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from last version: Improvement: Upgradation in the Demo Server
Linux SNMP Device
- Version: 8.5
- Compatibility: v 7.7.0
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: Packet Loss KPI is visible in GUI
Linux SNMP Device
- Version: 8.4
- Compatibility: v 7.6.8
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: Test Methods added for Demo Server
Linux SNMP Device
- Version: 8.3
- Compatibility: v 7.6.6
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: SNMP Polling Capability
Linux SNMP Device
- Version: 8.2
- Compatibility: v 7.6.5
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Bug Fix: Changes in the interface rediscovery
Linux SNMP Device
- Version: 8.1
- Compatibility: v 7.6.4
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: SNMP Based Polling
Linux SNMP Device
- Version: 8.0
- Compatibility: v 7.6.4
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: Added RTT Parameters
Linux SNMP Device
- Version: 7.9
- Compatibility: v 7.6.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices
- Change from Last Version: Improvement: Polling Enhancement
- Plugin-Metrics:
Linux SNMP Device
- Version: 7.7
- Compatibility: v 7.6.0
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices.
- Change from Last Version: New Feature: Discovery via SNMP is added
- Plugin-Metrics:
Linux SNMP Device
- Version: 7.6
- Compatibility: v 7.6.0
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices.
- Change from Last Version: Performance Improvement for Polling Functionality
- Version: 7.5
- Compatibility: v 7.5.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Processes (Optional), Key File Name (Optional), Passphrase (Optional), Services (Optional), Metric Collect Interval (Second)
- Operation: Collects information from Linux SNMP devices.
- Plugin-Metrics:

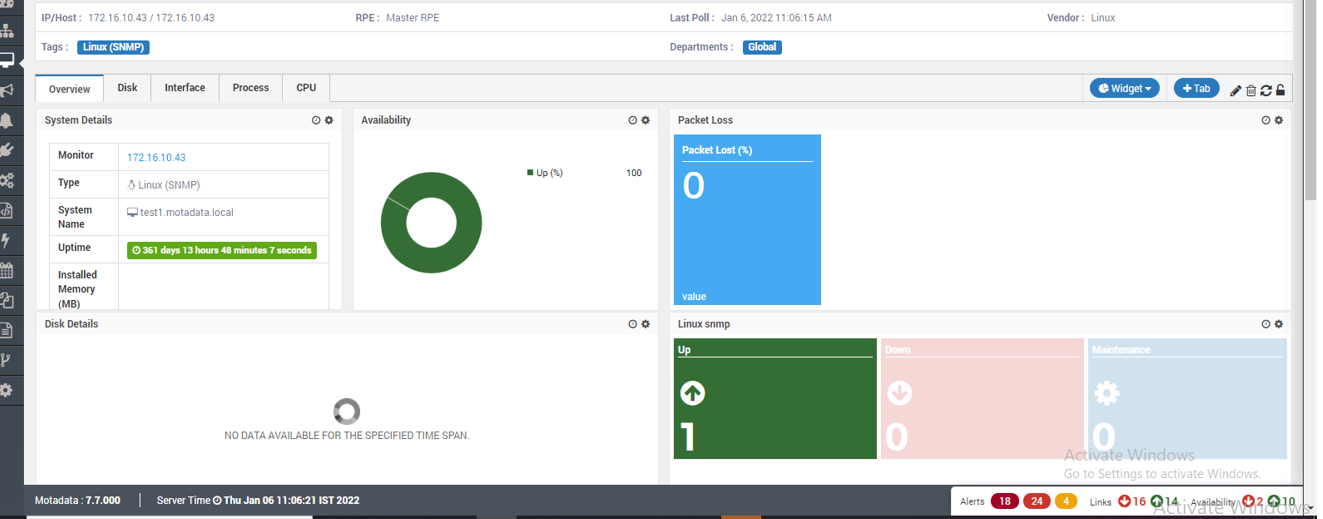

Linux SNMP Device
| Instance Metric | Data Type |
|---|---|
| CPU (%): | Numeric |
| 64 Bit Counter | String |
| Uptime (Seconds) | String |
| Free Disk (MB): | Numeric |
| Used Memory (MB): | Numeric |
| Total CPU Cores | Numeric |
| Memory (%): | Numeric |
| Disk (%): | Numeric |
| Free Memory (MB): | Numeric |
| System Description | String |
| CPU (%): | Numeric |
| System Name: | String |
| Disk Capacity (MB): | Numeric |
| Used Disk (MB): | Numeric |
- Instance Metrics

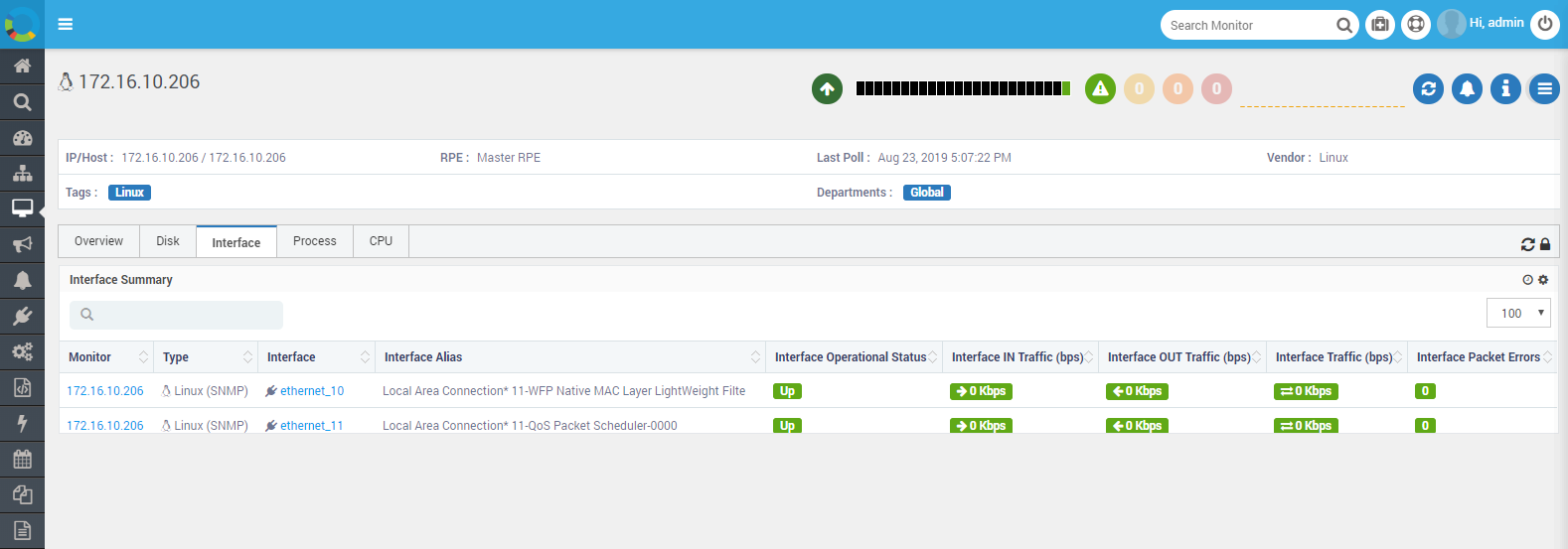

Interface Metrics
| Interface | Data Type |
|---|---|
| Interface: | String |
| Interface Index: | String |
| Interface Alias: | String |
| Interface Description: | String |
| Interface Type: | String |
| Interface Operational Status: | String |
| Interface Address: | String |
| Interface Admin Status: | String |
| Interface Speed (Mbps): | Numeric |
| Interface IN Traffic (bps): | Numeric |
| Interface OUT Traffic (bps): | Numeric |
| Interface Traffic (bps): | Numeric |
| Interface IN Traffic Volume (Bytes): | Numeric |
| Interface OUT Traffic Volume (Bytes): | Numeric |
| Interface Traffic Volume (Bytes): | Numeric |
| Interface OUT Utilization (%): | Numeric |
| Interface IN Utilization (%): | Numeric |
| Interface Utilization (%): | Numeric |
| Interface Packet Discards: | Numeric |
| Interface Packet Errors: | Numeric |
| Interface OUT Packets: | Numeric |
| Interface Packets: | Numeric |
| Interface IN Packets: | Numeric |
| Interface Packet Lost (%): | Numeric |
| Interface IP Address: | String |
| Interface Last Change: | String |
| Interface IN Traffic (Bytes): | Numeric |
| Interface OUT Traffic (Bytes): | Numeric |
| Interface Traffic (Bytes): | Numeric |
Disk Volume:

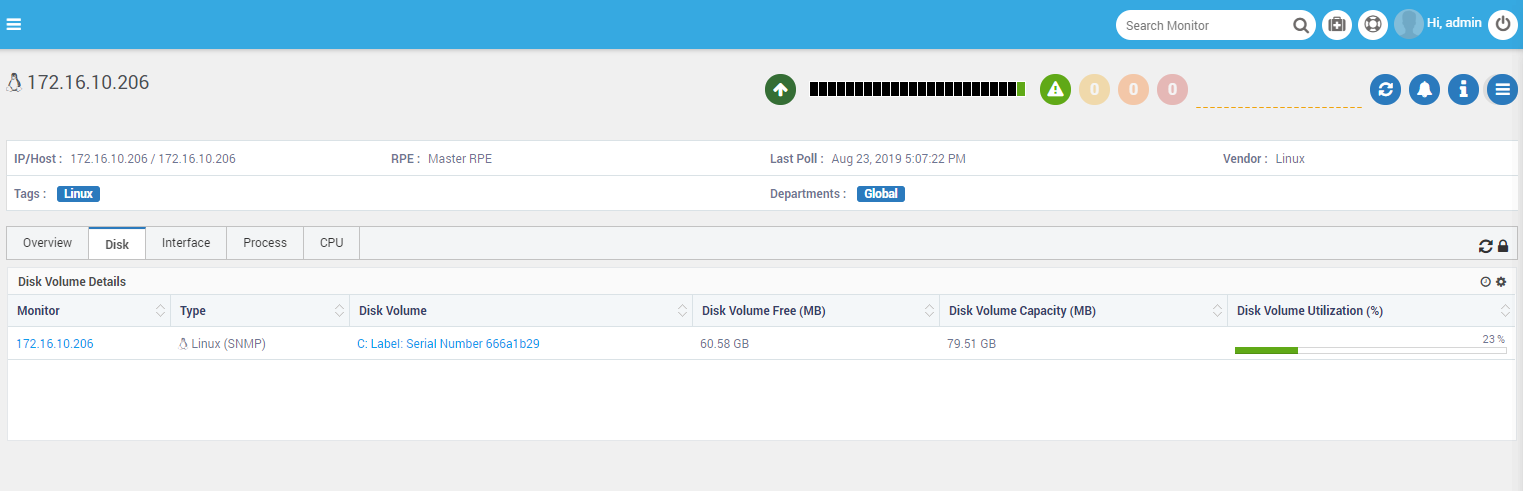

Linux SNMP Disk Volume
| Disk Volume: | String |
|---|---|
| Disk Volume Capacity (MB): | Numeric |
| Disk Volume Used (MB): | Numeric |
| Disk Volume Free (MB): | Numeric |
| Disk Volume Utilization (%): | Numeric |

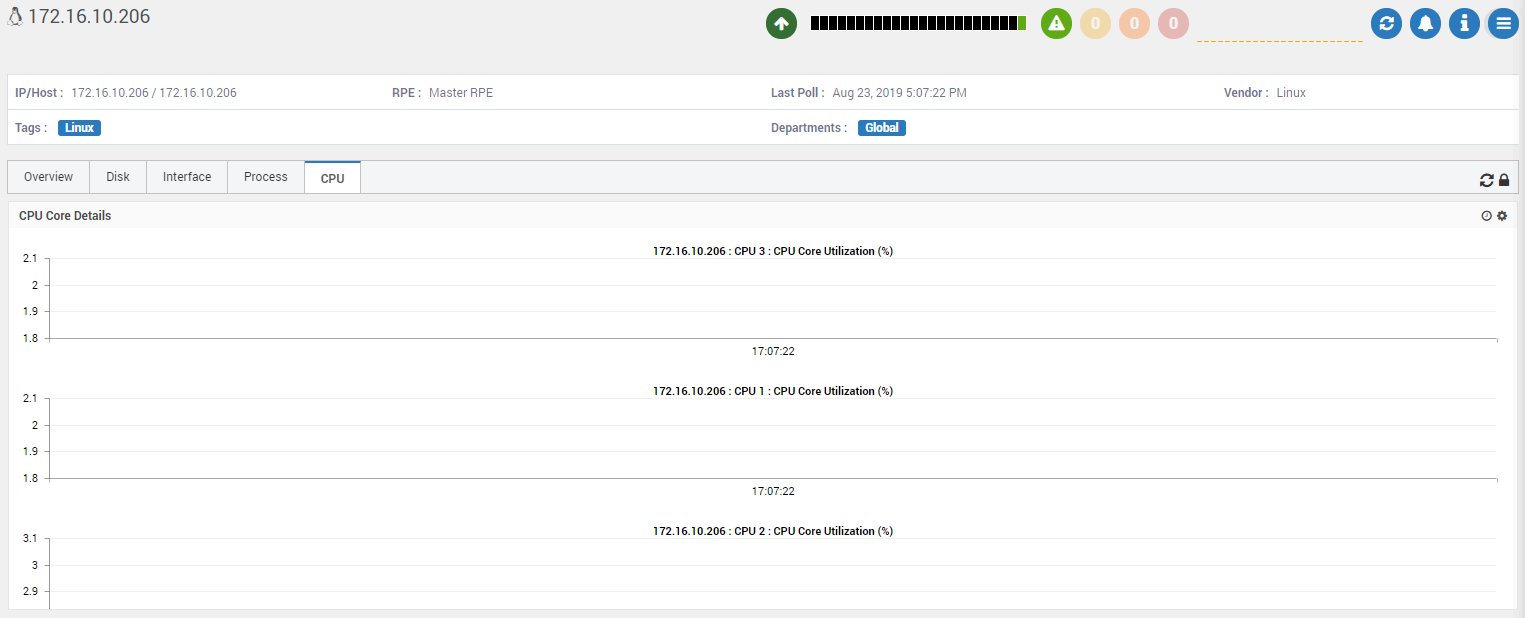

CPU Core:
| CPU Core: | Numeric |
|---|---|
| CPU Core Utilization (%): | Numeric |
Process:
| Process: | String |
|---|---|
| Process Id: | Numeric |
| Process Path | Numeric |
| Process CPU (Seconds) | Numeric |
| Process Memory Usage (KB): | Numeric |
| Process Memory (%): | Numeric |
