Windows DNS
- version: 7.8
- Compatibility: v 7.6.2
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Metric Collect Interval (Mandatory)
- Operation: Collects information from Windows DNS
- Changes from last version: Bug Fix: Status updated for processes
- Plugin-Metrics:

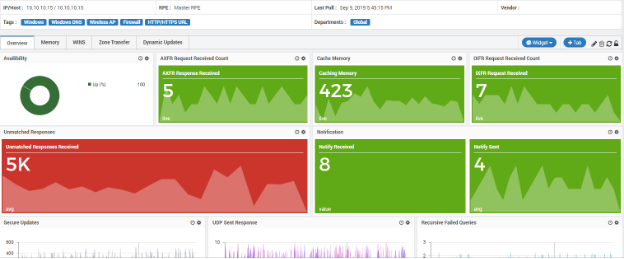

Windows DNS
- version: 7.7
- Compatibility: v 7.6.2
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Metric Collect Interval (Mandatory)
- Operation: Collects information from Windows DNS
- Changes from last version: Addition of Flag for Duplication with values YES or NO. Default: NO
- Plugin-Metrics:
Windows DNS
- version: 7.5
- Compatibility: v 7.5.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), Username (Mandatory), Password (Mandatory), Metric Collect Interval (Mandatory)
- Operation: Collects information from Windows DNS.
- Plugin-Metrics:
Windows DNS
| Metric | Data Type |
|---|---|
| AXFR Request Received | Numeric |
| AXFR Request Sent | Numeric |
| AXFR Response Received | Numeric |
| AXFR Success Received | Numeric |
| AXFR Success Sent | Numeric |
| Caching Memory | Numeric |
| Database Node Memory | Numeric |
| Dynamic Update Queued | Numeric |
| Dynamic Update Received/sec | Numeric |
| Dynamic Update Received | Numeric |
| Dynamic Update Rejected | Numeric |
| Dynamic Update Timeouts | Numeric |
| IXFR Request Received | Numeric |
| IXFR Request Sent | Numeric |
| IXFR Response Received | Numeric |
| IXFR Success Received | Numeric |
| IXFR Success Sent | Numeric |
| IXFR TCP Success Received | Numeric |
| IXFR UDP Success Received | Numeric |
| Nbstat Memory | Numeric |
| Notify Received | Numeric |
| Notify Sent | Numeric |
| Record Flow Memory | Numeric |
| Recursive Queries/sec | Numeric |
| Recursive Queries | Numeric |
| Recursive Query Failure/sec | Numeric |
| Recursive Query Failure | Numeric |
| Recursive Send Timeouts | Numeric |
| Secure Update Failure | Numeric |
| Secure Update Received/sec | Numeric |
| Secure Update Received | Numeric |
| TCP Message Memory | Numeric |
| TCP Query Received/sec | Numeric |
| TCP Query Received | Numeric |
| TCP Response Sent/sec | Numeric |
| TCP Response Sent | Numeric |
| Total Query Received/sec | Numeric |
| Total Query Received | Numeric |
| Total Response Sent/sec | Numeric |
| Total Response Sent | Numeric |
| UDP Message Memory | Numeric |
| UDP Query Received/sec | Numeric |
| UDP Query Received | Numeric |
| UDP Response Sent/sec | Numeric |
| UDP Response Sent | Numeric |
| Unmatched Responses Received | Numeric |
| WINS Lookup Received/sec | Numeric |
| WINS Lookup Received | Numeric |
| WINS Response Sent/sec | Numeric |
| WINS Response Sent | Numeric |
| WINS Reverse Lookup Received/sec | Numeric |
| WINS Reverse Lookup Received | Numeric |
| WINS Reverse Response Sent/sec | Numeric |
| WINS Reverse Response Sent | Numeric |
| Zone Transfer SOA Request Sent | Numeric |
| Dynamic Update NoOperation/sec | Numeric |
| Dynamic Update NoOperation | Numeric |
| Dynamic Update Written to Database/sec | Numeric |
| Dynamic Update Written to Database | Numeric |
| Recursive Timeout/sec | Numeric |
| Zone Transfer Request Received | Numeric |
| Zone Transfer Failure | Numeric |
| Zone Transfer Success | Numeric |
