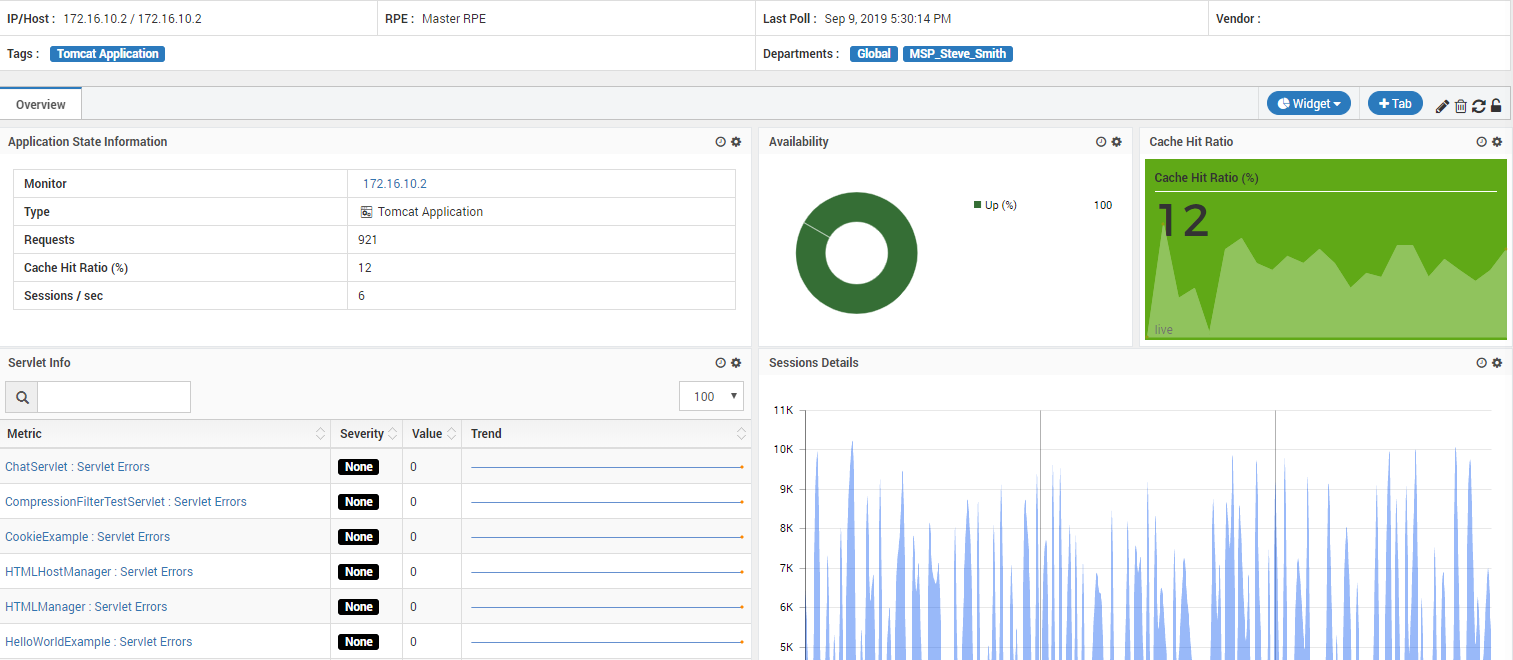

Tomcat Application
- Version: 3.4
- Compatibility: v 7.5.900
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), JMX Port (Mandatory), Username (Mandatory), Password (Mandatory), Metric Collect Interval (Mandatory)
- Operation: monitors the Tomcat Application.
- Plugin-Metrics:
- Version: 3.3
- Compatibility: v 7.5.3
- Requires: Host/IP/CIDR/CSV (Mandatory), Port (Mandatory), JMX Port (Mandatory), Username (Mandatory), Password (Mandatory), Metric Collect Interval (Mandatory)
- Operation: monitors the Tomcat Application.
- Plugin-Metrics:
Tomcat Application
| Metric | Data Type |
|---|---|
| JSP Accesses | Numeric |
| Sessions / sec | Numeric |
| Expired Sessions | Numeric |
| Application State | String |
| Requests | Numeric |
| URL | String |
| Created Sessions | Numeric |
| JSP Reloads | Numeric |
| Errors | Numeric |
| Cache Hits | Numeric |
| Cache Accesses | Numeric |
| Application Path | String |
| Requests/sec | Numeric |
| Rejected Sessions | Numeric |
| Active Sessions | Numeric |
| Application Description | String |
| JSP Unloads | Numeric |
| Request Time (ms) | Numeric |
| Cache Hit Ratio (%) | Numeric |
Instance Columns:
JSP Page
| Metric | Data Type |
|---|---|
| JSP Page | String |
| JSP Page Reloads | Numeric |
| JSP Page Unloads | Numeric |
| JSP Page Accesses | Numeric |
Servlet
| Metric | Data Type |
|---|---|
| Servlet | String |
| Servlet Requests | Numeric |
| Servlet Requests/sec | Numeric |
| Servlet Errors | Numeric |
| Servlet Max Request Time (ms) | Numeric |
| Servlet Request Time (ms) | Numeric |
| Servlet Load Time (ms) | Numeric |
