Standalone HA Deployment (3 Machines)

Configure Patroni-based HA on 3 machines and ServiceOps automatically recovers from a database failure without manual intervention.

In this layout, each application node co-locates the ServiceOps application and the PostgreSQL database on the same server. The Observer node runs HAProxy, ETCD, and the Application Observer.

Prerequisites

Before starting, confirm the following:

• Operating System: Ubuntu and RHEL
• PostgreSQL Version: 16 or 17
• 3 machines provisioned and reachable over the network
• ServiceOps installed on both APP + DB Node 1 and APP + DB Node 2 (follow the Standalone Installation Guide)
• Back up your database before starting any HA configuration step if you are working on an existing production environment. See the ServiceOps Application and Database Backup Procedure.
• Root or sudo access on all 3 machines
• Setup scripts extracted on their respective machines:
  • MotadataETCDSetupU24 on the Observer machine
  • MotadataPatroniSetupU24 on both APP + DB machines
  • MotadataAppHASetup on the Observer machine
• Firewall ports open on each machine:

Machine	Open Ports
Observer	80 (Optional), 443, 2379, 2380, 5000, 7000
APP + DB Node 1 and Node 2	80 (Optional), 443, 5432, 8008

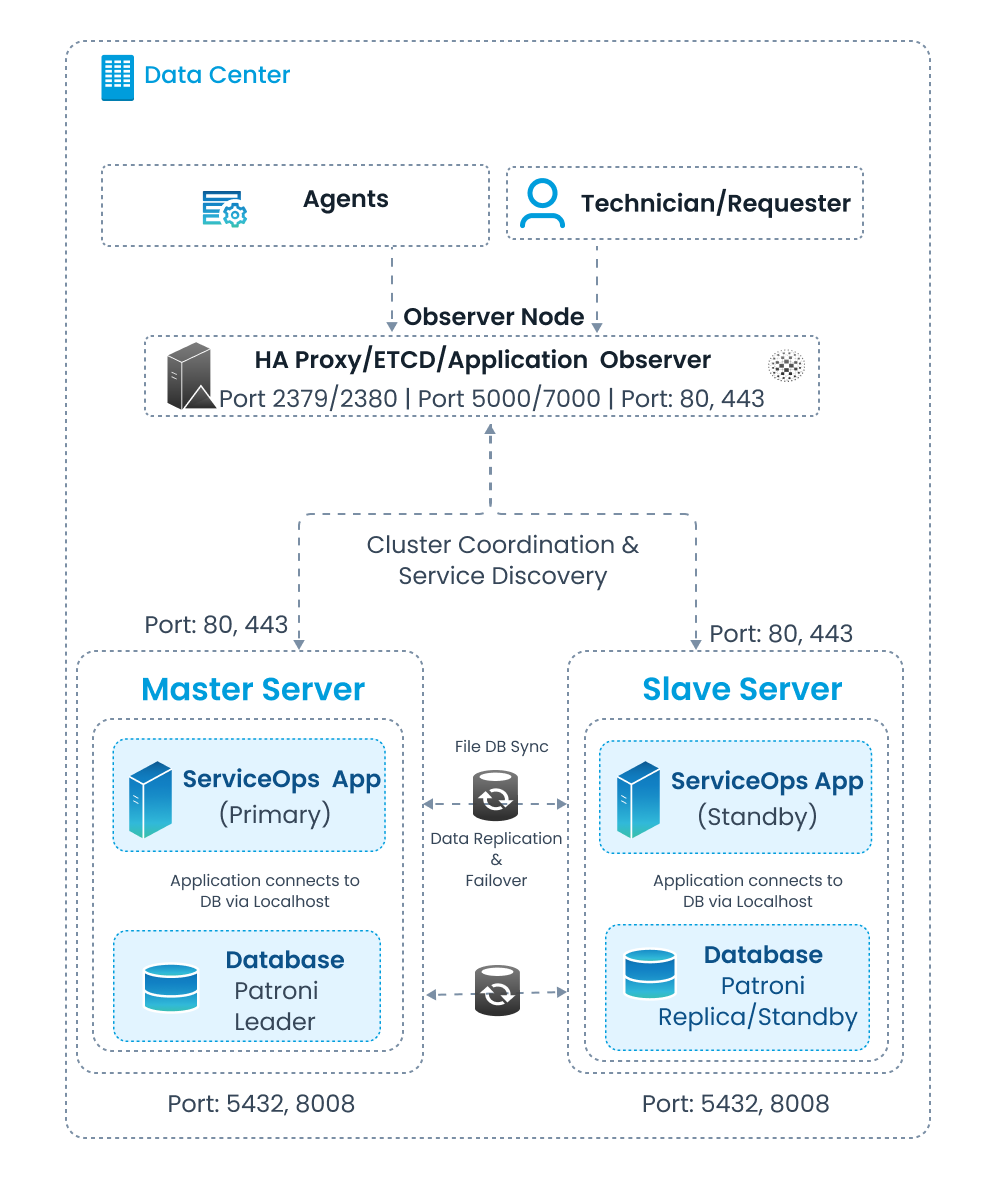

Architecture Overview

The 3-machine standalone layout assigns the following roles:

Role	Description	Example IP
Observer / HAProxy / ETCD	Manages load balancing, cluster coordination, and failover	172.16.13.42
APP + DB Node 1 (Master)	Runs the active ServiceOps application and the Patroni Leader database	172.16.12.171
APP + DB Node 2 (Slave)	Runs the standby ServiceOps application and the Patroni Replica database	172.16.12.177

Components and Roles

• Observer Node (HA Proxy/ETCD/Application Observer): Acts as the single entry point for all client traffic (Agents, Technicians, Requesters). HAProxy load-balances application traffic on ports 80 (optional) and 443, and routes database connections to the Patroni Leader through port 5000 and 7000. ETCD (ports 2379/2380) stores cluster state, maintains distributed consensus, and coordinates Patroni leader election. The Application Observer monitors both servers and triggers failover scripts when the Master becomes unavailable.
• Master Server (ServiceOps App Primary + Patroni Leader Database): Active server handling all live application requests. The ServiceOps application connects to the co-located Patroni Leader database via localhost. Accessible from the Observer on ports 80 (optional) and 443; Patroni communicates on ports 5432, and 8008.
• Slave Server (ServiceOps App Standby + Patroni Replica/Standby Database): Passive standby server kept in continuous sync with the Master and promoted automatically on failure. The ServiceOps application connects to the co-located Patroni Replica database via localhost. Port profile: 80/443 for application traffic; 5432, and 8008 for Patroni.
• Patroni: Manages PostgreSQL high availability on both nodes. Continuously replicates the database from the Master (Leader) to the Slave (Replica) and automatically promotes the Slave to Leader if the Master fails.
• ETCD: Distributed key-value store used for cluster coordination, service discovery, and Patroni leader election between the Observer and both servers.
• File DB Sync: Synchronizes non-database files (attachments, patches, packages, logs) bidirectionally between Master and Slave, ensuring file-level consistency across both nodes.

Procedure

Step 1: Download Setup Files

Download the zip file containing all setup files from the Download Links page and extract it on all three machines before proceeding.

Step 2: Set Up the Observer (ETCD and HAProxy)

Run the following steps on the Observer machine (172.16.13.42).

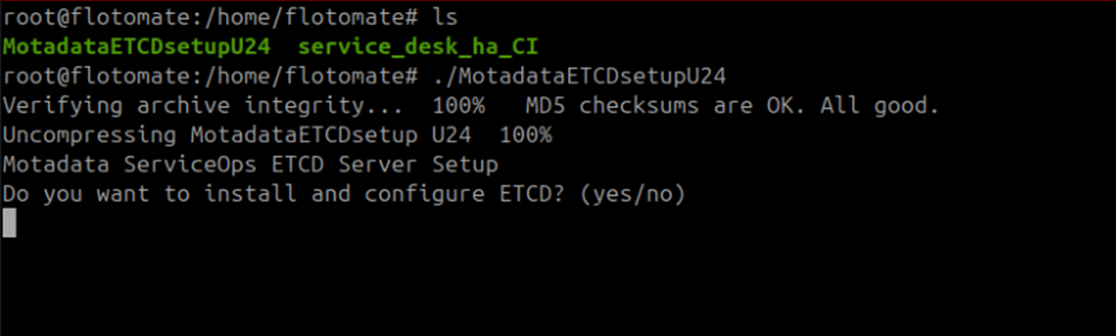

1. Give MotadataETCDSetupU24 execute permissions and run it:

   chmod 777 MotadataETCDSetupU24
   ./MotadataETCDSetupU24

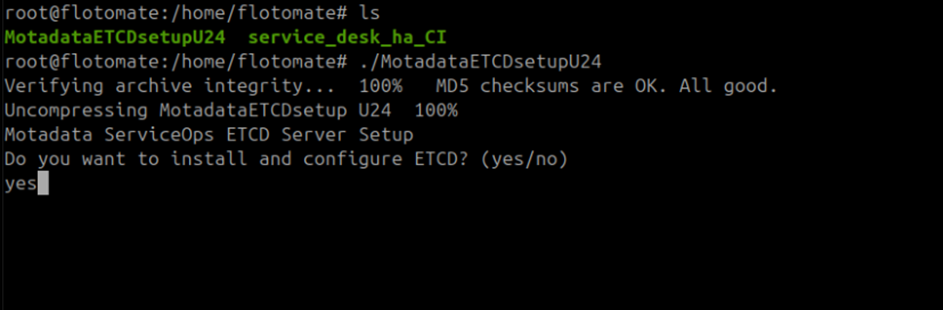

2. Type yes when prompted to install and configure ETCD.

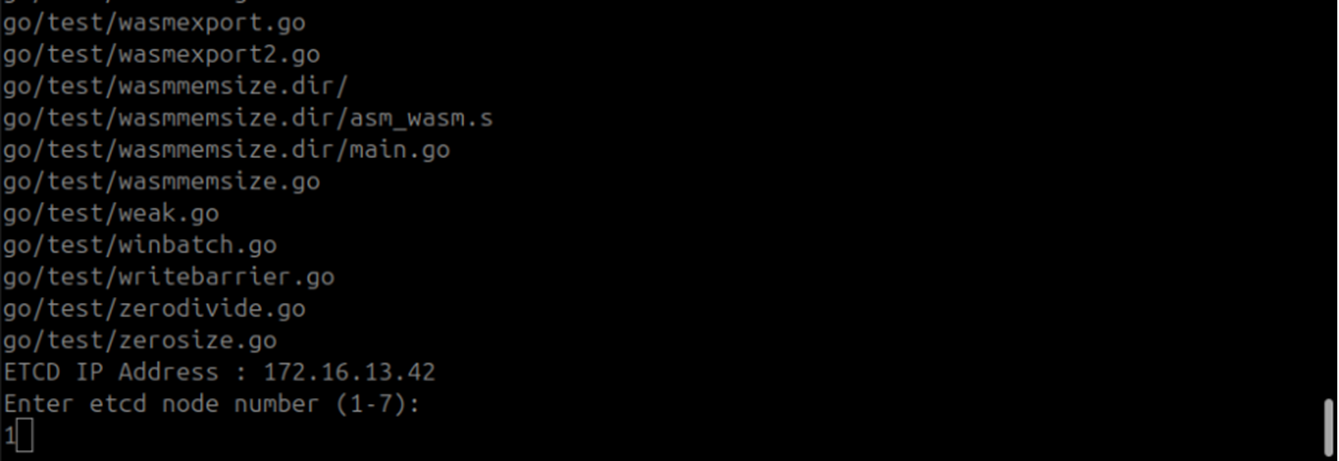

3. Enter 1 when prompted for the ETCD node number. This setup uses a single ETCD node.

   Maximum ETCD Cluster Nodes

   This setup supports a maximum of 7 ETCD cluster nodes. Leave all additional node prompts blank for a single-node setup.

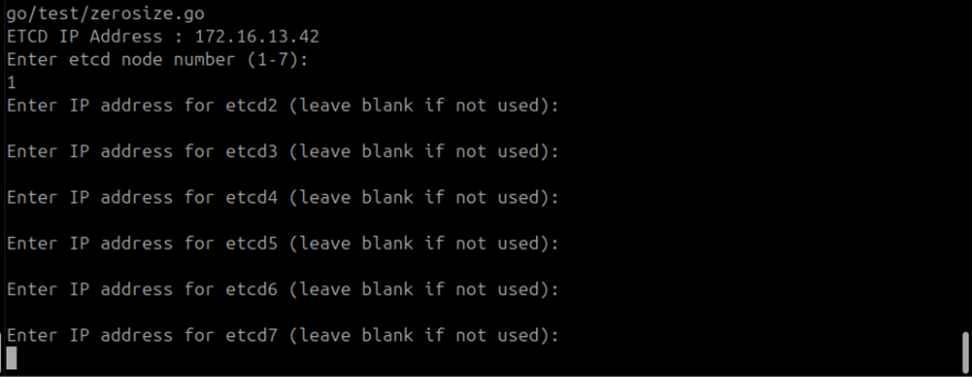

4. Leave all additional ETCD node prompts blank and press Enter.

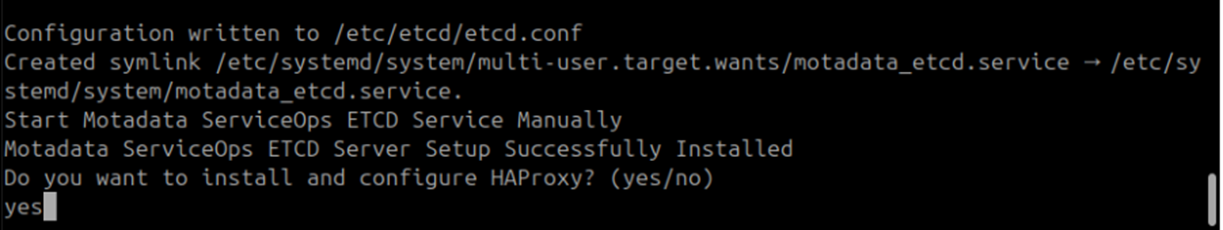

5. Type yes when prompted to install and configure HAProxy.



6. Enter the DB and APP IP addresses when prompted:

   Prompt	Value
   DB Node 1 IP	172.16.12.171
   DB Node 2 IP	172.16.12.177
   APP Node 1 IP	172.16.12.171
   APP Node 2 IP	172.16.12.177

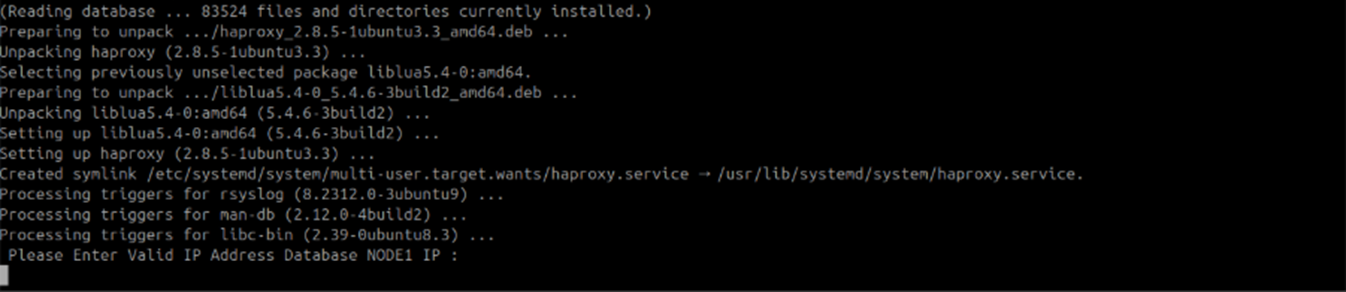

ETCD and HAProxy setup is complete.

Verify the HAProxy Configuration

Open /etc/haproxy/haproxy.cfg and confirm it matches this structure:

global
    maxconn 100

defaults
    log global
    mode tcp
    retries 2
    timeout client 30m
    timeout connect 4s
    timeout server 30m
    timeout check 5s

listen stats
    mode http
    bind *:7000
    stats enable
    stats uri /

listen postgres
    bind *:5000
    option httpchk
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server etcd1 172.16.12.171:5432 maxconn 100 check port 8008
    server etcd2 172.16.12.177:5432 maxconn 100 check port 8008

listen backend
    bind *:80
    balance roundrobin
    mode tcp
    option tcp-check
    server ubuntu1 172.16.12.171:80 check port 80
    server ubuntu2 172.16.12.177:80 check port 80

Verify ETCD Service Status

Check that the ETCD service is running before continuing:

systemctl status motadata_etcd

If the service is inactive, start it:

systemctl start motadata_etcd

Step 3: Configure the Master Database

Run the following steps on APP + DB Node 1 / Master (172.16.12.171).

1. Give MotadataPatroniSetupU24 execute permissions and run it:

   chmod 777 MotadataPatroniSetupU24
   ./MotadataPatroniSetupU24

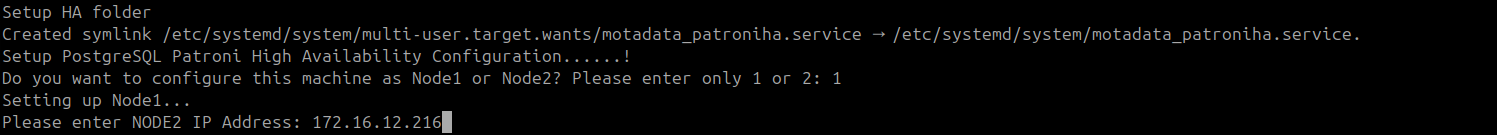

2. Enter 1 when prompted to select Node 1 or Node 2.

3. Enter the Slave IP address when prompted: 172.16.12.177.



4. Enter the ETCD IP address when prompted: 172.16.13.42.

Patroni setup on the Master node is complete.

Step 4: Configure the Slave Database

Run the following steps on APP + DB Node 2 / Slave (172.16.12.177).

1. Give MotadataPatroniSetupU24 execute permissions and run it:

   chmod 777 MotadataPatroniSetupU24
   ./MotadataPatroniSetupU24
2. Enter 2 when prompted to select Node 1 or Node 2.
3. Enter the Master IP address when prompted: 172.16.12.171.
4. Enter the ETCD IP address when prompted: 172.16.13.42.

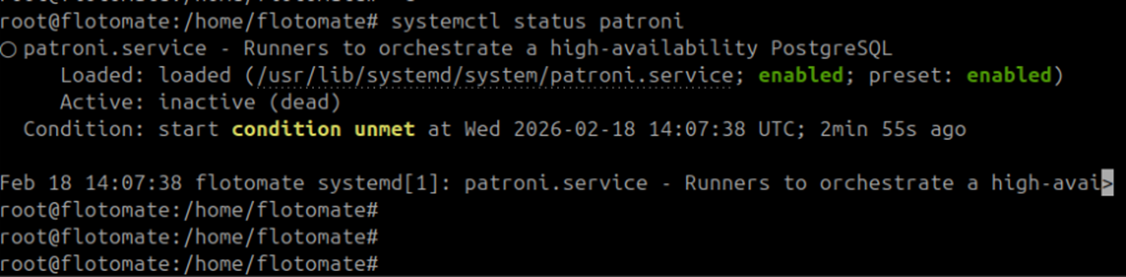

Verify Patroni Is Inactive on the Slave Before Continuing

After setup, confirm the Patroni service on the Slave is inactive. If it shows active or running, stop it:

systemctl stop patroni

Do not continue to Step 5 until the Slave Patroni service is inactive.

Step 5: Configure the Master Application

Run the following steps on APP + DB Node 1 / Master (172.16.12.171).

1. Copy MotadataPatroniHAMasterSlaveAppConfig from the Master /opt/HA folder to the home directory.

2. Give it execute permissions and run it:

   chmod 777 MotadataPatroniHAMasterSlaveAppConfig
   ./MotadataPatroniHAMasterSlaveAppConfig

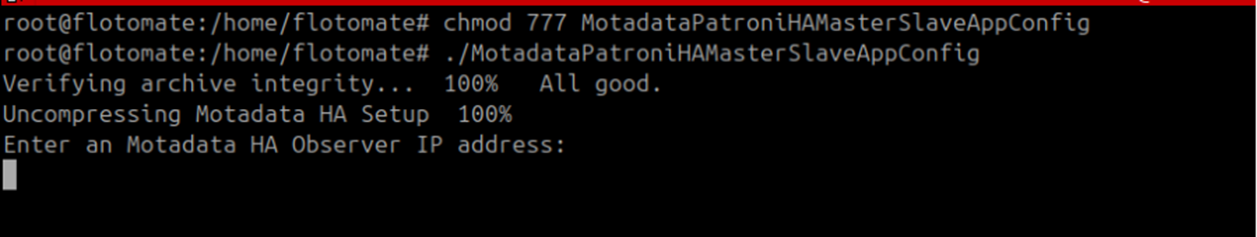

3. Enter the Observer IP address when prompted: 172.16.13.42.

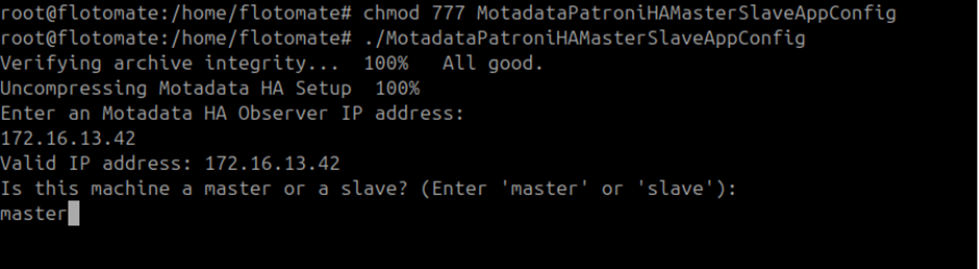

4. Enter master when asked for the machine role.

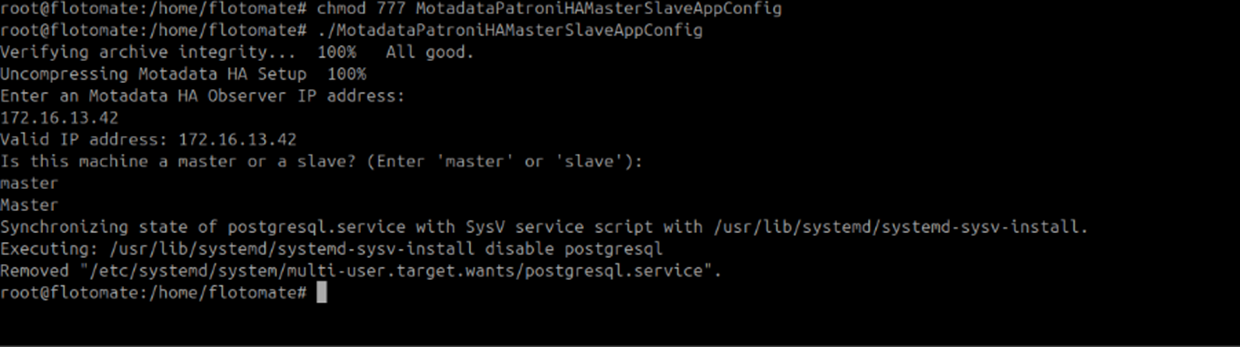

Master application configuration is complete.

Step 6: Configure the Slave Application

Run the following steps on APP + DB Node 2 / Slave (172.16.12.177).

1. Copy MotadataPatroniHAMasterSlaveAppConfig from the Master /opt/HA folder to the home directory on the Slave.

2. Give it execute permissions and run it:

   chmod 777 MotadataPatroniHAMasterSlaveAppConfig
   ./MotadataPatroniHAMasterSlaveAppConfig

3. Enter the Observer IP address when prompted: 172.16.13.42.

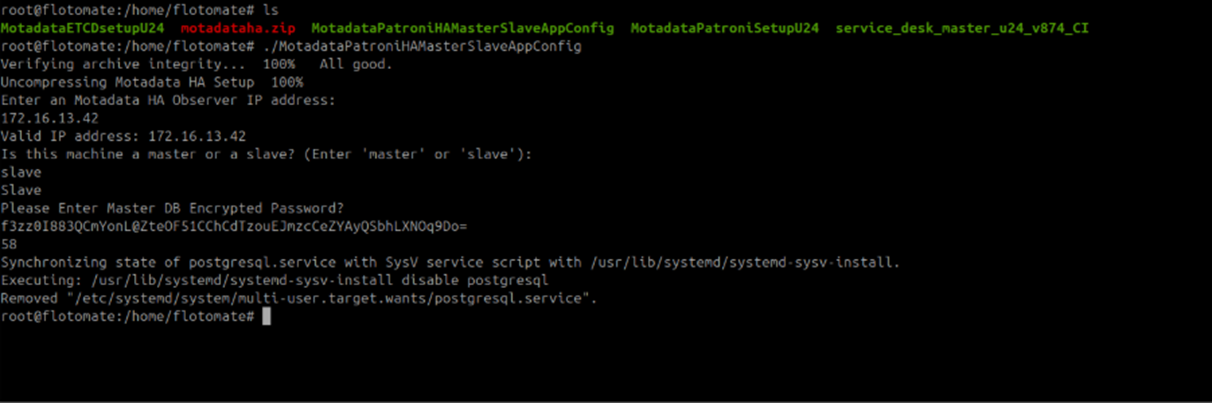

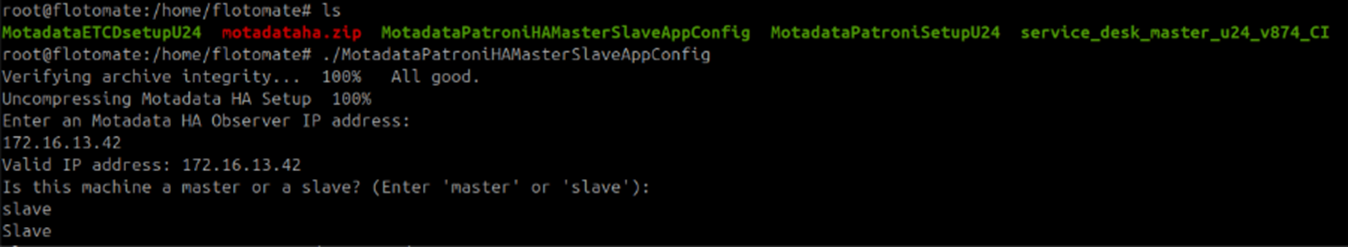

4. Enter slave when asked for the machine role.



5. Enter the Master application's DB password when prompted.



DB Password Must Match

Copy the DB password directly from the Master. The password must be identical on both nodes.

Slave application configuration is complete.

Step 7: Run DB Configuration on the Master

Run the following steps on APP + DB Node 1 / Master (172.16.12.171).

1. Retrieve the application DB password:

   cat /opt/flotomate/main-server/lib/boot-hosted-exec.conf

2. Copy MotadataPatroniHADBConfig from /opt/HA to the home directory.

3. Give it execute permissions and run it:

   chmod 777 MotadataPatroniHADBConfig
   ./MotadataPatroniHADBConfig

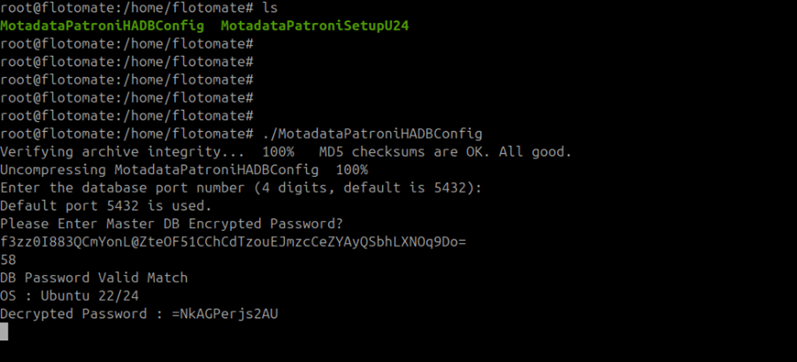

4. Enter the DB password when prompted.

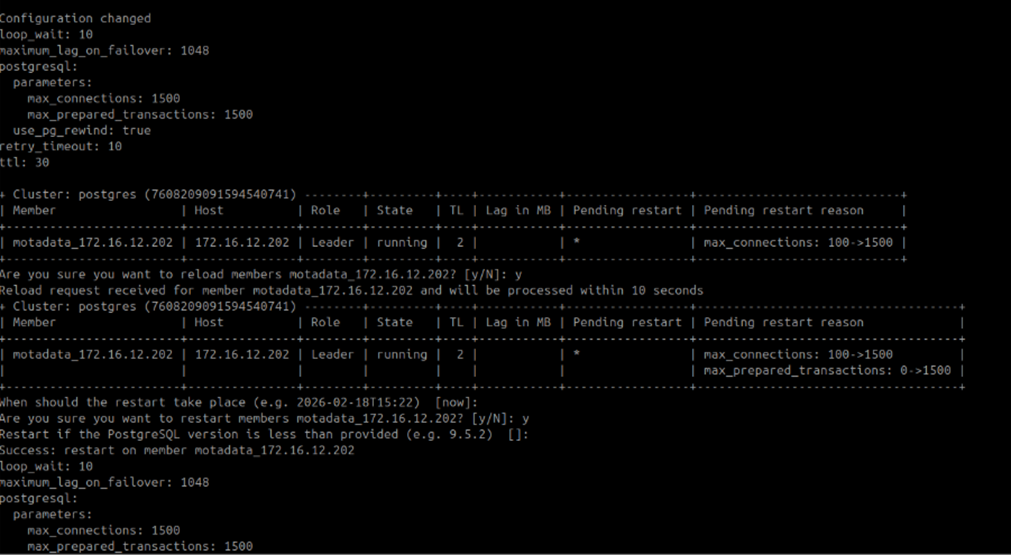

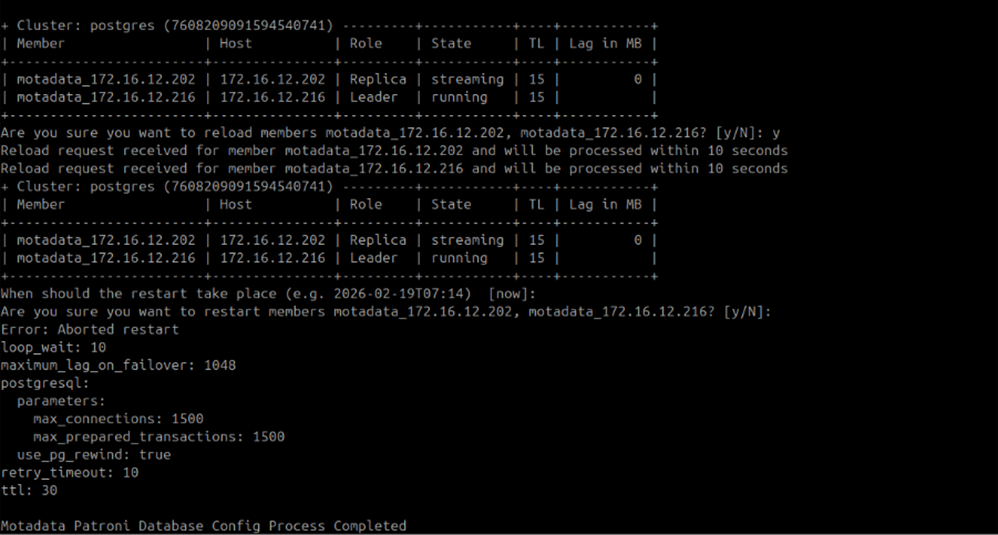

5. Enter y when asked to reload and restart Patroni members. Perform this twice and if the version is given then press enter.



Master DB configuration is complete.

Step 8: Run DB Configuration on the Slave

Run the following steps on APP + DB Node 2 / Slave (172.16.12.177).

1. Run MotadataPatroniHADBConfig:

   chmod 777 MotadataPatroniHADBConfig
   ./MotadataPatroniHADBConfig

2. Enter the same DB password you used in Step 7.



   Slave DB configuration is complete.

3. Check the status of patroni service using the command: systemctl status patroni

Remove Old HA Configuration

If an old HA configuration already exists, remove it after taking a backup:

rm -rf /opt/HA

Step 9: Configure the Application HA Observer

Run the following steps on the Observer machine (172.16.13.42).

Run as a Standard User

Run this script as a normal user. Do not use root or sudo. The script will fail if run as root.

1. Give MotadataAppHASetup execute permissions and run it:

   chmod 777 MotadataAppHASetup
   ./MotadataAppHASetup

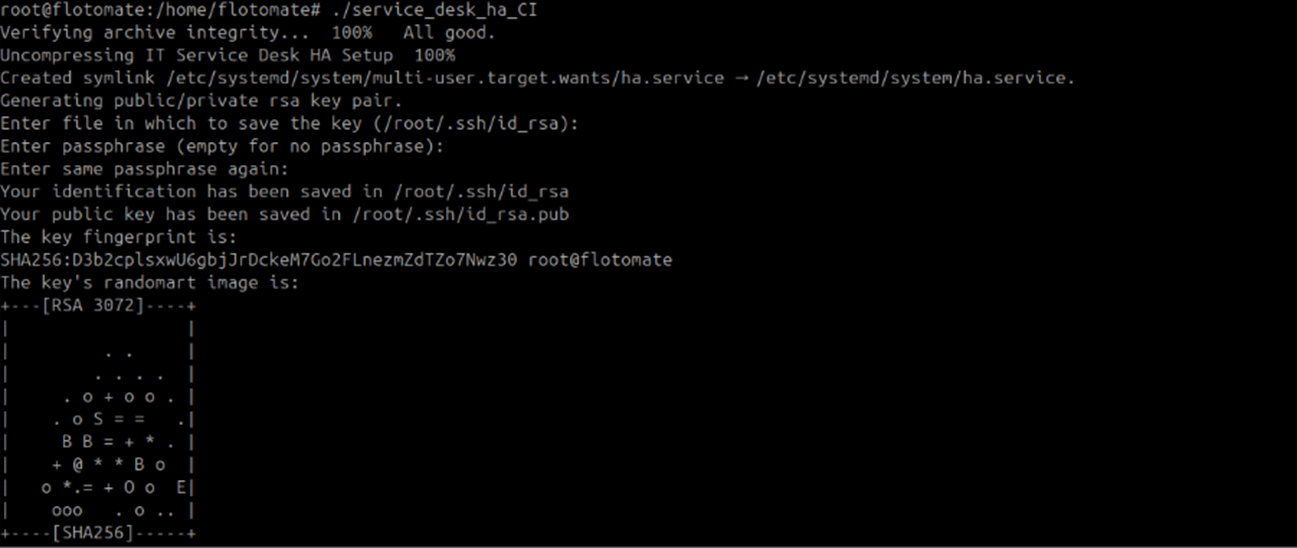

2. Press Enter at every key-pair generation prompt until key generation completes.

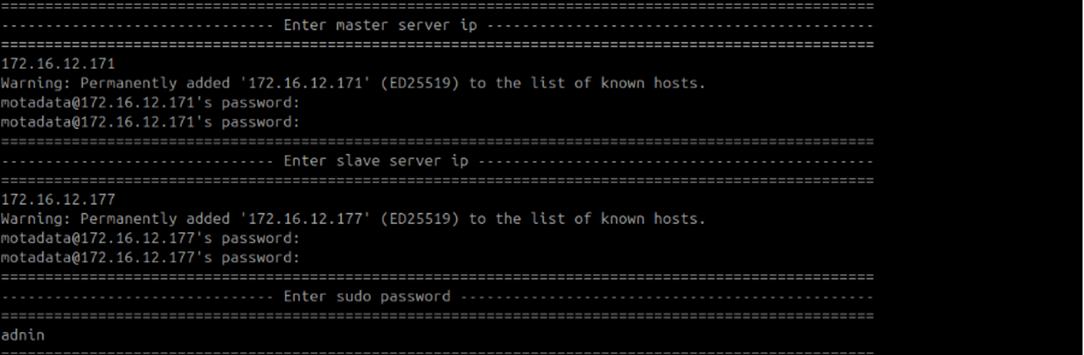

3. Enter the following values when prompted:

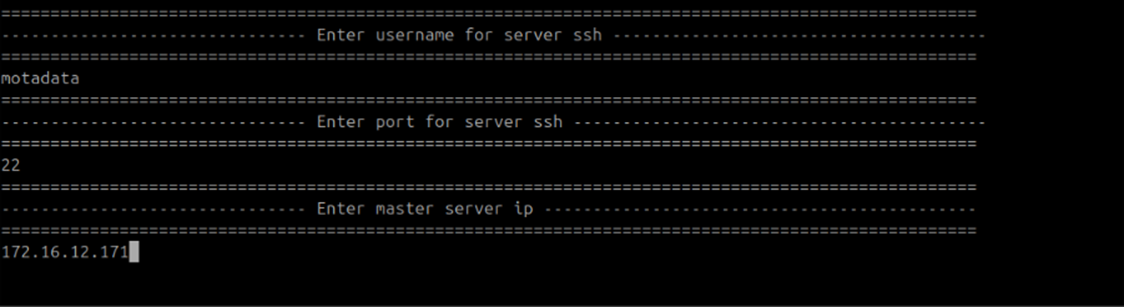

   Prompt	Value
   Username for SSH	Common SSH username for both nodes
   Port for SSH	SSH port (default: 22)
   Master Server IP	172.16.12.171
   Master Server Password	Enter twice when prompted
   Slave Server IP	172.16.12.177
   Slave Server Password	Enter twice when prompted





4. Press Enter twice at the second key-pair generation prompt.

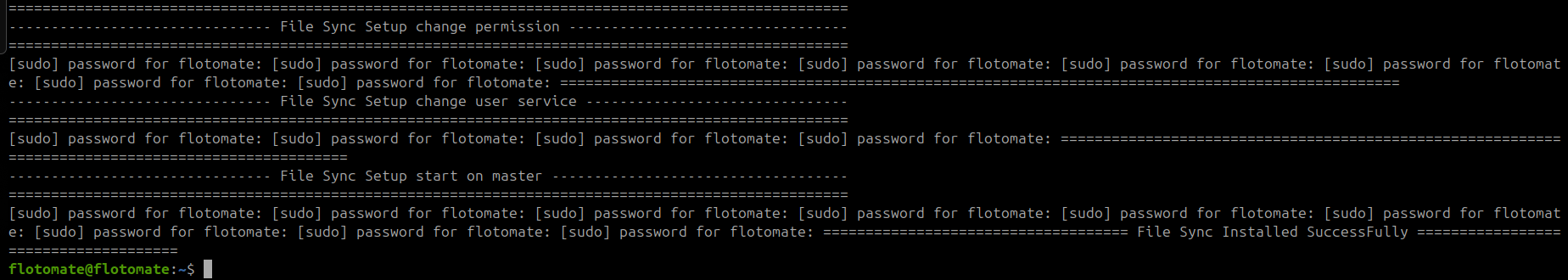

Application HA Observer configuration is complete. Verify the setup by checking logs at /opt/HA/logs.

Troubleshooting

Use this section to diagnose common issues after completing the 3-machine standalone setup.

Nginx is active on the Slave after setup

Cause: Nginx started automatically during the Slave setup. An active Nginx service on the Slave causes routing conflicts with the Observer.

Fix: Stop Nginx on the Slave and verify all services are inactive before proceeding:

systemctl stop nginx

/opt/HA permission error during setup

Cause: The /opt/HA directory is owned by a different user than the one running the setup scripts.

Fix: Correct the ownership on the affected machine:

chown -R motadata:motadata /opt/HA

Machines cannot communicate with each other

Cause: One or more required firewall ports are blocked between machines.

Fix: Confirm the following ports are open between each machine pair:

Source	Destination	Ports
Observer	APP + DB Node 1 and Node 2	80 (optional), 443
Observer	APP + DB Node 1 and Node 2	5432, 8008
APP + DB Node 1 (Master)	Observer	2379, 2380, 5000
APP + DB Node 2 (Slave)	Observer	2379, 2380, 5000
APP + DB Node 1 (Master)	APP + DB Node 2 (Slave)	5432, 8008

Check both OS-level and network-level firewall rules on each machine.
