Upgrade Guide for High Availability (HA) Deployment

A comprehensive guide for upgrading ServiceOps applications in High Availability (HA) environments to ensure zero downtime and maintain cluster health during version transitions.

High Availability (HA) upgrades require special consideration to maintain cluster stability and prevent automatic failover during the upgrade process. This guide covers the upgrade process for HA environments, ensuring both master and standby instances are upgraded successfully while maintaining data synchronization.

Key Benefits of HA Upgrades

  • Zero Downtime: Maintains service availability during upgrades
  • Cluster Stability: Prevents automatic failover during upgrade process
  • Data Synchronization: Ensures database and file synchronization across nodes
  • Rollback Capability: Provides recovery options if upgrade fails
  • Health Monitoring: Comprehensive cluster health verification

Supported Operating Systems

  • Ubuntu: 22, 24
  • RedHat: 9.2, 9.4
Version Compatibility

From version v8.2, incremental upgrades are not required. You can upgrade directly from v8.2 to the latest available release version. Starting from v8.6.0, you can upgrade ServiceOps using a single common installer across supported operating systems.

Pre-Upgrade Requirements​

Before initiating the HA upgrade, complete the following checks and actions:

  • HA Cluster Status: Verify both master and standby nodes are healthy and synchronized.
  • Network Connectivity: Ensure a stable network connection exists between HA nodes.
  • Disk Space: Confirm there is sufficient space for upgrade packages and backups on both nodes.
  • ServiceOps Version: Ensure the current version is compatible with the HA environment.
  • Stop HA Observer Service: Before upgrading, it is critical to stop the HA Observer service to prevent automatic failover.
Critical Timing

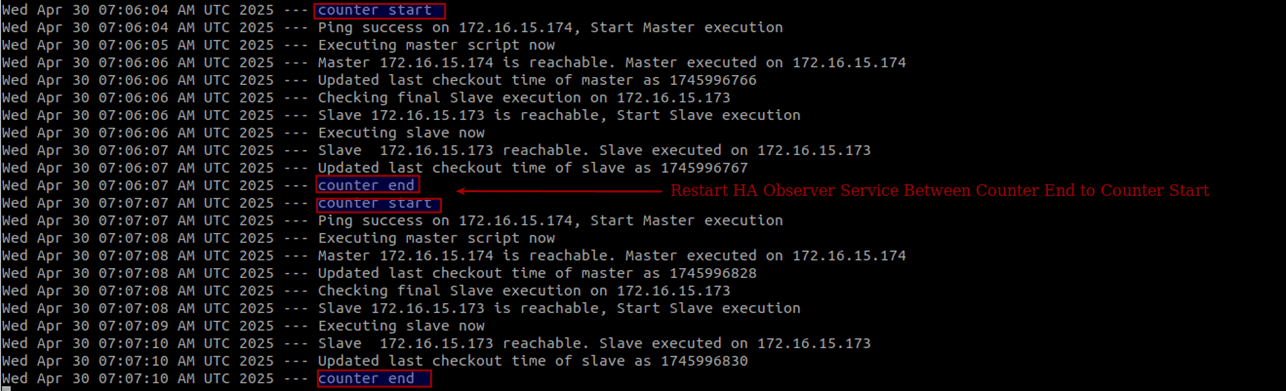

Before stopping the Observer service, monitor the logs to ensure no swapping or synchronization process is in progress. Stopping the Observer service abruptly may lead to instability in the HA cluster.

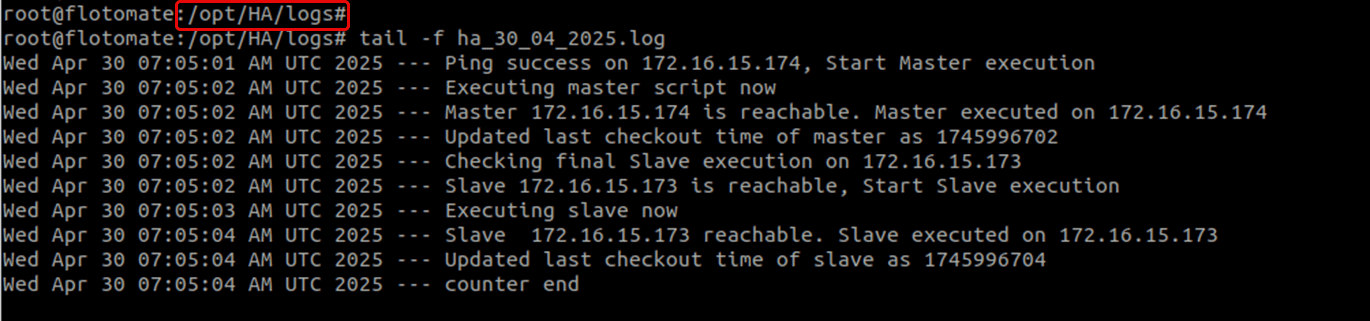

1. Monitor HA Observer Logs

View the latest log activity to ensure no critical processes are running.

tail -f /opt/HA/logs/ha_<date>.log

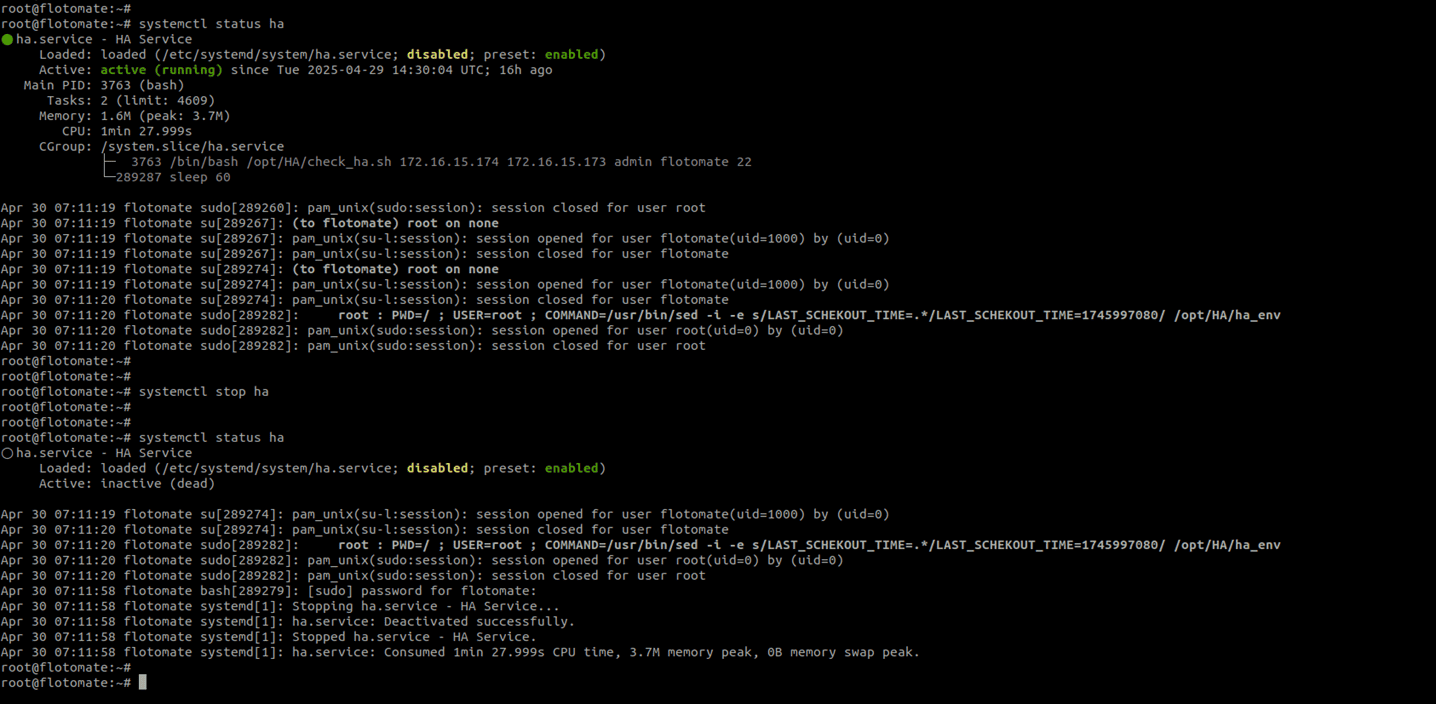

2. Stop the Observer Service

Once you confirm that no processes are running, stop the service.

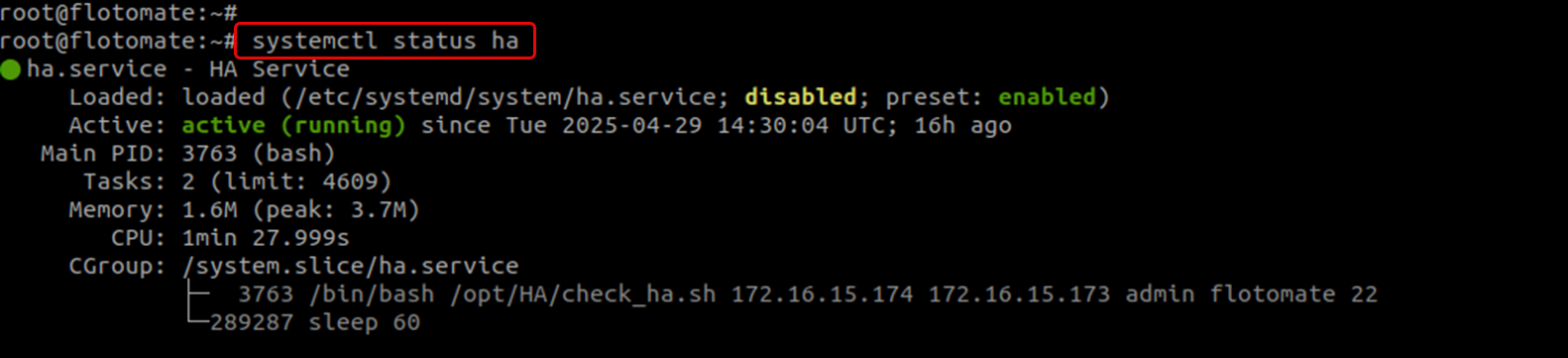

sudo systemctl status ha
sudo systemctl stop ha
sudo systemctl status ha

  • Application Backup: Backup the application and filedb folder on the master node.
  • Database Backup: Take a complete database backup from the master node.
  • VM Snapshot: Take a snapshot of both master and standby VMs for recovery.
  • Network Connectivity: Test connectivity between HA nodes.
  • Maintenance Window: Schedule the upgrade during low-usage periods.
  • Team Notification: Inform stakeholders about the planned upgrade.
Backup Requirements

Always perform complete backups before HA upgrades. Refer to the Backup Process for detailed backup procedures.

Application Upgrade Steps​

Step 1: Download the Release Build

Download the latest Common Installer build from the Latest Download Links.

Step 2: Upgrade Master Application Instance

Prepare the Installer

  1. Copy Installer: Copy the MotadataServiceOpsCommonUpgrade installer to the Master ServiceOps application instance.

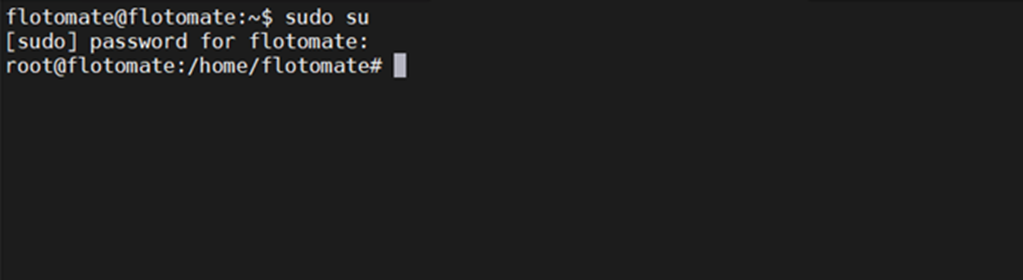

  2. Login with Root Privileges:

    sudo su

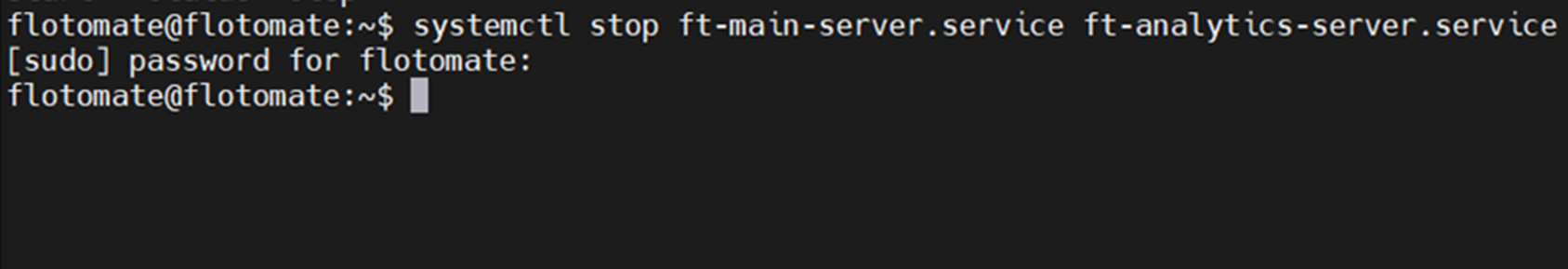

  1. Stop Services: Stop the main server and analytics server services:

    sudo systemctl stop ft-main-server.service ft-analytics-server.service

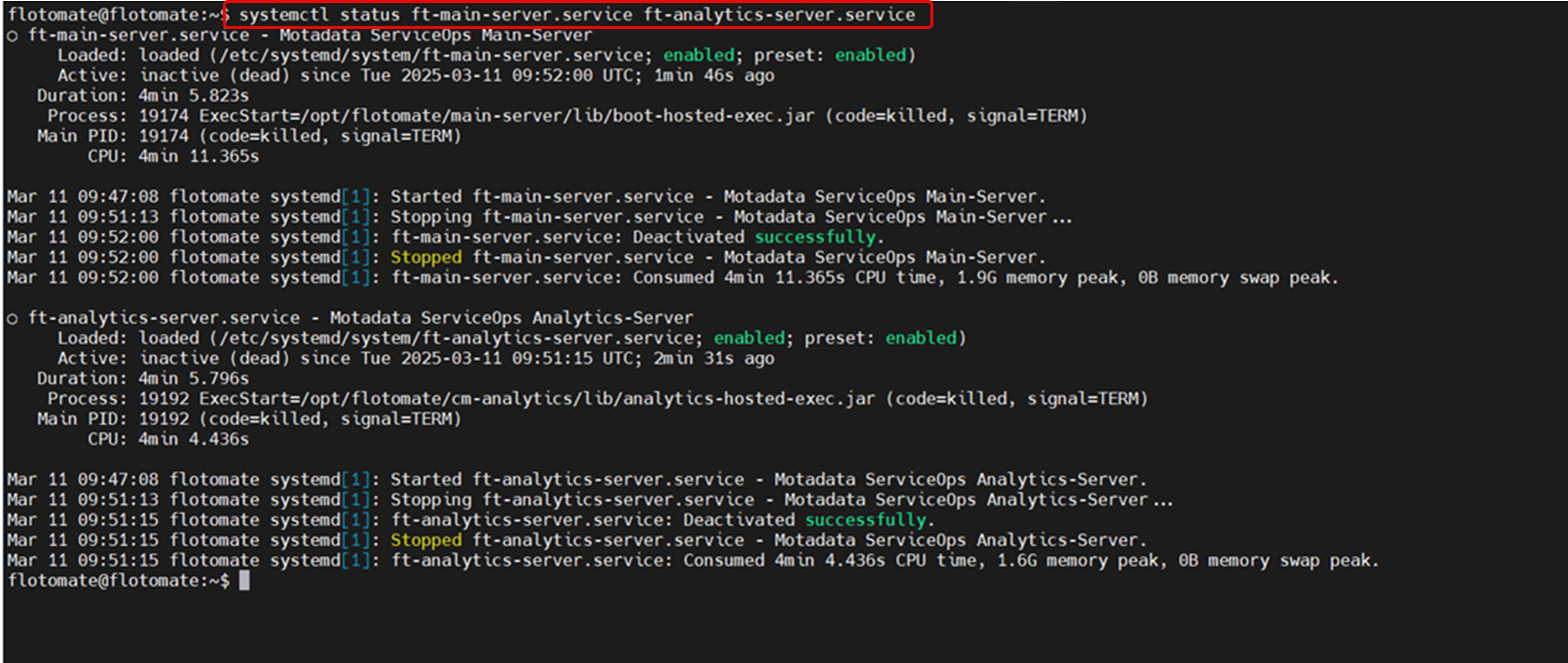

  2. Verify Service Status:

    sudo systemctl status ft-main-server.service ft-analytics-server.service

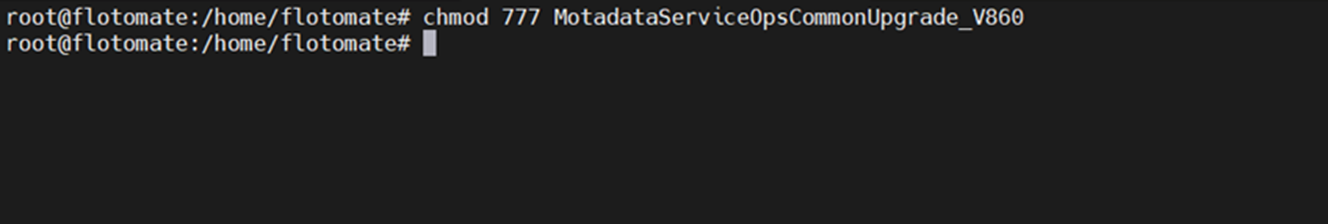

  3. Grant Execute Permissions:

    chmod 777 MotadataServiceOpsCommonUpgrade_V860

Run the Installer

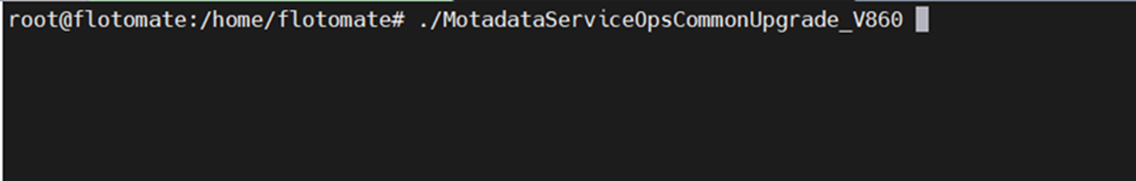

  1. Execute Upgrade: Run the upgrade installer:

    ./MotadataServiceOpsCommonUpgrade_V860

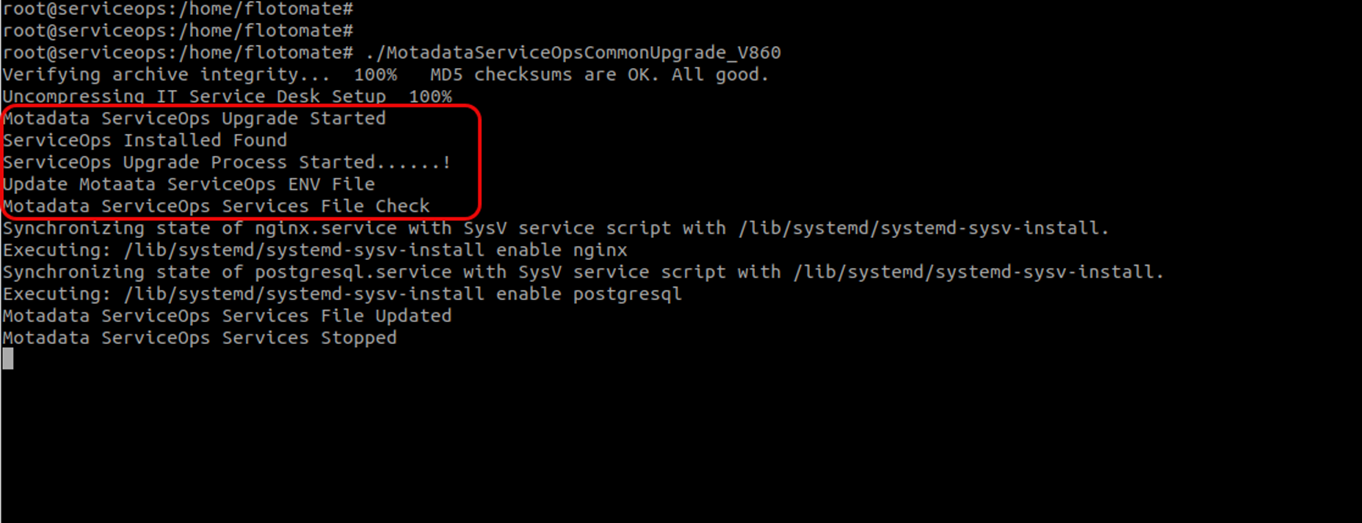

  2. Monitor Upgrade Process: The upgrade process will begin automatically.

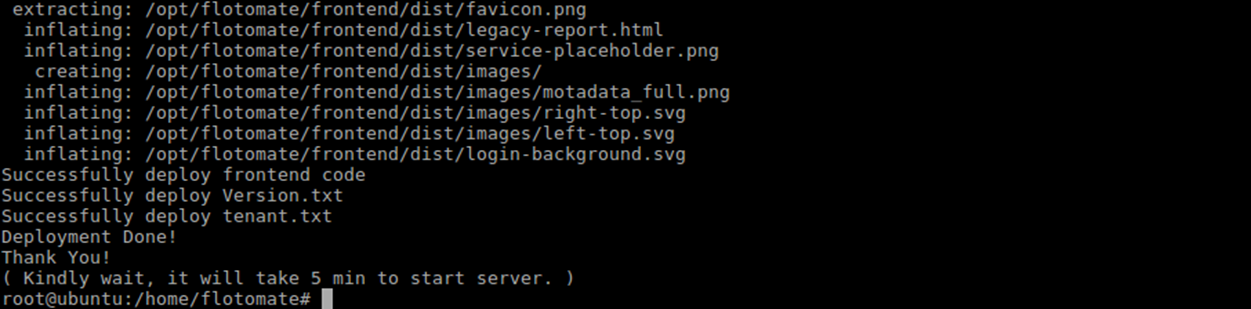

  3. Verify Completion: Once the upgrade process is completed successfully, the completion screen will appear.

Step 3: Upgrade Standby Application Instance

To upgrade the ServiceOps standby instance, repeat the same steps used for the master instance:

  1. Prepare the Installer (same as master procedure)
  2. Run the Installer (same as master procedure)
Service Management on Standby Node

After the upgrade on the standby node is complete, ensure all application services (e.g., ft-main-server, ft-analytics-server) remain in a stopped state. The standby node's services should not be running; they will be managed by the HA service once it's restarted.

Database Upgrade Steps (Optional)​

Pre-Upgrade Steps​

  1. Stop HA Observer Service: Stop the HA Observer service using the below command:

    sudo systemctl stop ha-observer

Step 1: Upgrade Master Node​

Refer to the Standalone PostgreSQL Upgrade Guide and upgrade the master node first.

Step 2: Upgrade Slave Node​

In HA, the Slave node is in read-only mode. To upgrade it, you must first promote it to a temporary master.

  1. Promote Slave to Master:

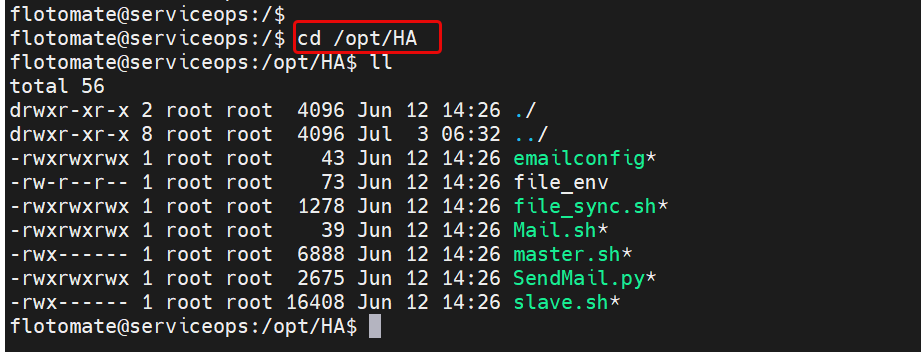

    • On the Slave node, navigate to the HA directory:

      cd /opt/HA

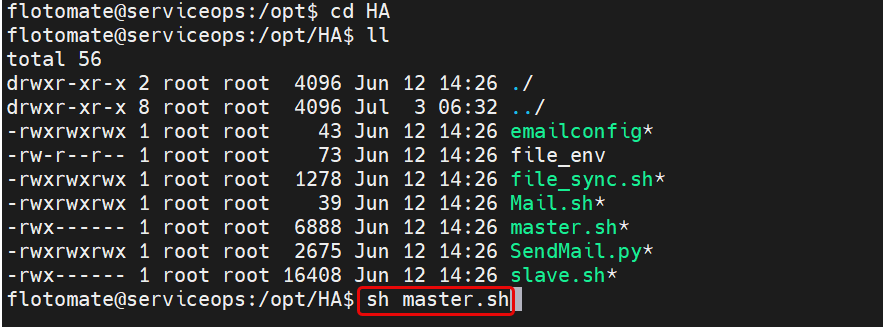

    • Run the master promotion script:

      sh master.sh

      This will convert the slave node to a temporary master mode.

  2. Upgrade the Node: Once the node is in master mode, follow the same Standalone PostgreSQL Upgrade Guide to upgrade it.

Step 3: Reconfigure HA​

Once both database nodes are upgraded, you must re-establish the HA replication. Refer to the High Availability (HA) Deployment Setup guide and follow the steps to reconfigure the cluster.

Post-Upgrade Verification​

Once the upgrade is completed on all nodes, follow these steps to finalize the process and verify the health of the HA cluster.

Step 1: Start Observer Service

After both Master and Standby servers and their databases are upgraded, start the Observer Service to re-enable the HA functionality.

sudo systemctl start ha
sudo systemctl status ha

Step 2: Check High Availability Cluster Health Status

Ensure the database and the filedb folder are properly synchronized.

Database Sync Check

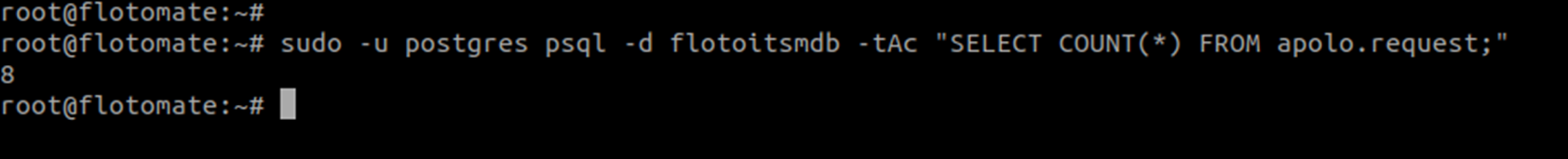

Check if the Master and Standby databases are in sync by comparing request counts:

sudo -u postgres psql -d flotoitsmdb -tAc "SELECT COUNT(*) FROM apolo.request;"

Test Ticket Validation

Create a test ticket on the Master server and confirm that the same record appears on the Standby to validate synchronization.

FileDB Sync Check

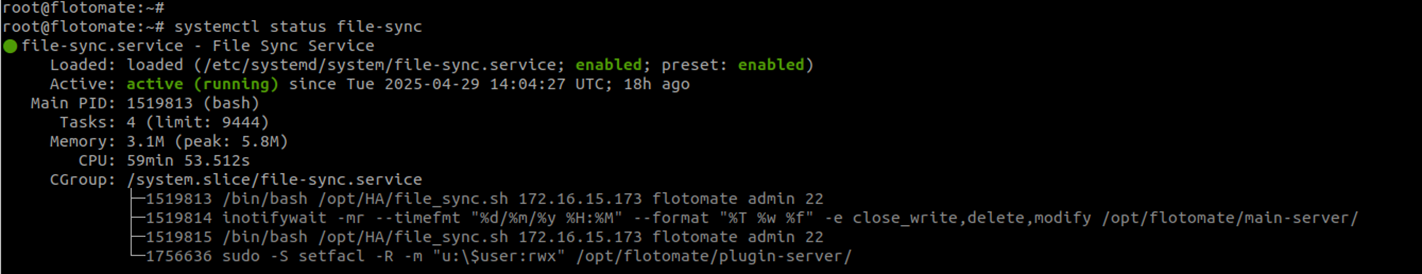

  1. Verify File-Sync Service: Ensure the file-sync.service is running on the Master and stopped on the Standby.

    sudo systemctl status file-sync

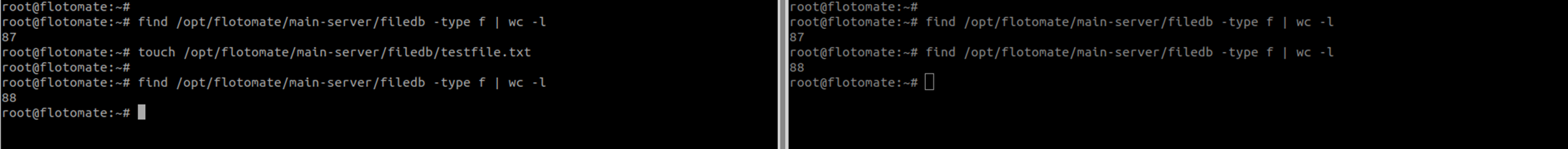

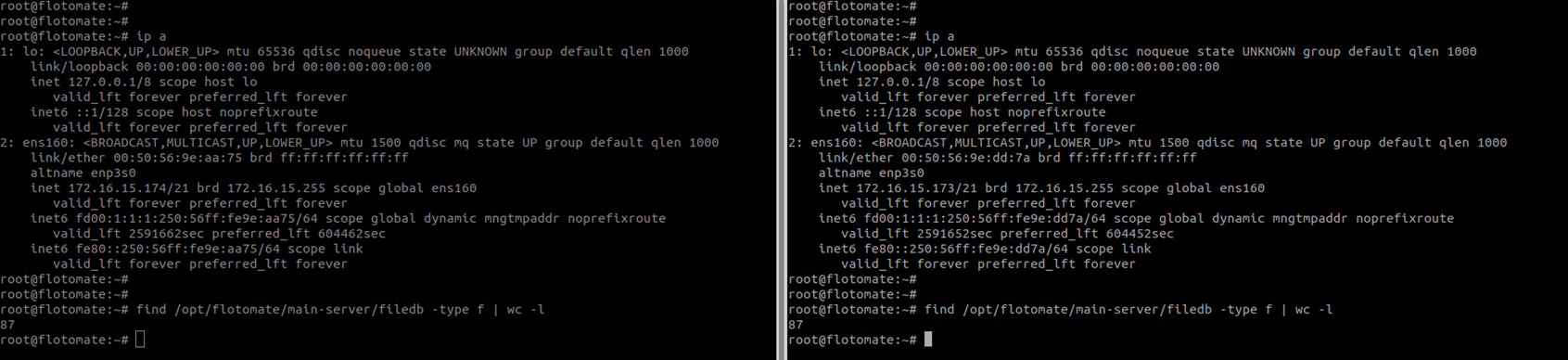

  2. Compare File Counts: Compare the number of files in the filedb directory on both Master and Standby:

    find /opt/flotomate/main-server/filedb -type f | wc -l

    The file counts should be identical.

  3. Test File Synchronization: Create a test file in the Master's filedb folder and confirm it appears on the Standby node.

Step 3: Service Health Verification

  1. Check All Services: Verify the status of all services on the master node:

    sudo systemctl status ft-main-server.service ft-analytics-server.service elasticsearch.service nginx.service postgresql.service file-sync.service

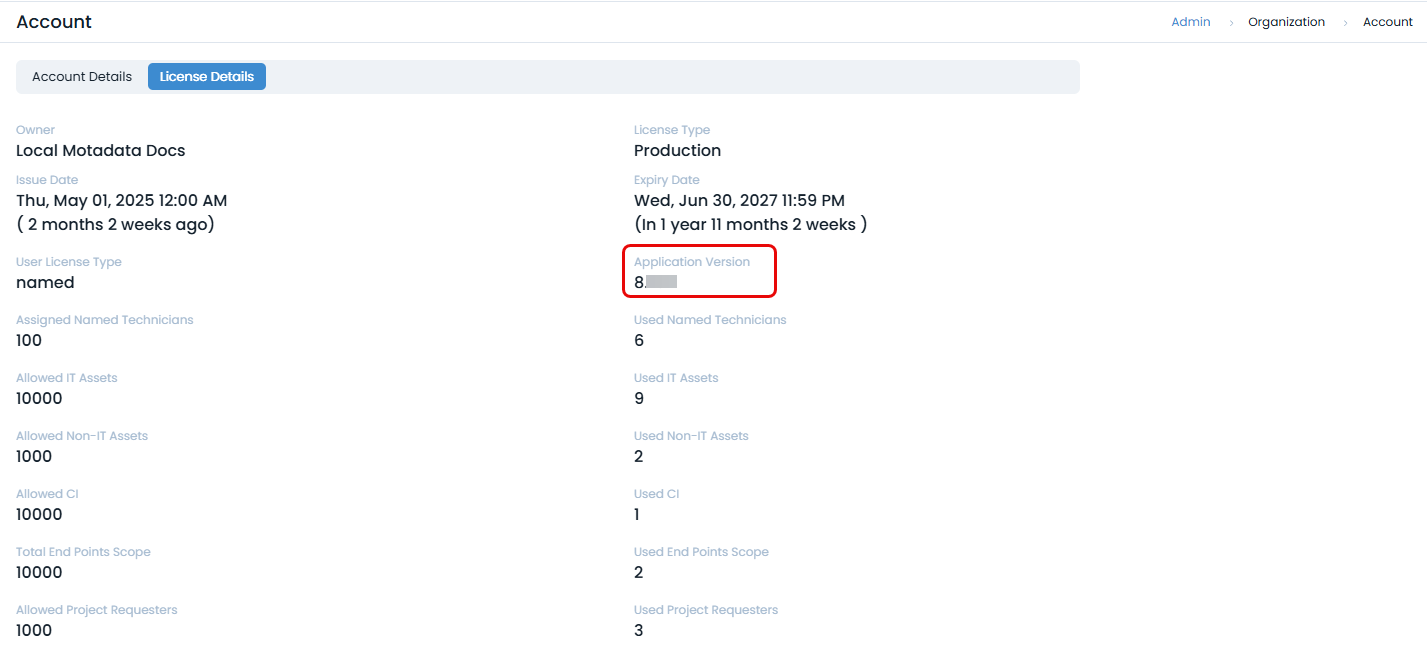

  2. Application Access: Login to the ServiceOps Portal and verify the application version from Admin > Organization > Account > License Details.

  3. Sanity Checks: Test functionality and verify all features are working as expected.

Step 4: Performance Monitoring

  1. System Resources: Monitor CPU, memory, and disk usage on both nodes.
  2. Network Performance: Verify network connectivity between HA nodes.
  3. Service Response Times: Monitor application response times.
  4. Error Rates: Watch for any increased error rates in logs.

Troubleshooting​

Common HA Upgrade Issues

Observer Service Issues

Symptoms: Observer service fails to start or stop properly

Resolution:

  1. Check observer service status: sudo systemctl status ha
  2. Review HA logs: tail -f /opt/HA/logs/ha_<date>.log
  3. Verify network connectivity between nodes
  4. Restart observer service if needed: sudo systemctl restart ha
Database Synchronization Problems

Symptoms: Database sync issues between master and standby

Resolution:

  1. Check PostgreSQL service status on both nodes
  2. Verify network connectivity between database nodes
  3. Check database replication logs
  4. Restart PostgreSQL services if needed
File Synchronization Issues

Symptoms: FileDB not synchronizing between nodes

Resolution:

  1. Check file-sync service status: sudo systemctl status file-sync
  2. Verify rsync connectivity between nodes
  3. Check file permissions and ownership
  4. Restart file-sync service if needed: sudo systemctl restart file-sync
Service Startup Failures

Symptoms: Services fail to start after upgrade

Resolution:

  1. Check service status: sudo systemctl status <service-name>
  2. Review service logs: sudo journalctl -u <service-name>
  3. Verify dependencies are installed
  4. Restart services in proper order

Recovery Procedures

Rollback to Previous Version

If upgrade fails and you need to rollback:

  1. Stop Observer Service: Stop the HA observer service
  2. Restore from VM Snapshot: If available, restore from VM snapshot
  3. Restore from Backup: Restore ServiceOps from backup if needed
  4. Reinstall Previous Version: Install the previous ServiceOps version
  5. Restart Services: Restart all services in proper order
  6. Start Observer Service: Start the HA observer service
Cluster Recovery

If HA cluster becomes unstable:

  1. Stop All Services: Stop all ServiceOps services on both nodes
  2. Restore from Backup: Restore ServiceOps from backup
  3. Verify Dependencies: Ensure all required packages are installed
  4. Restart Services: Restart services in proper order
  5. Restart Observer: Start the HA observer service

Log Analysis

HA Observer Logs

Check HA observer logs for errors:

tail -f /opt/HA/logs/ha_<date>.log
Service Logs

Monitor ServiceOps service logs:

sudo tail -f /opt/flotomate/main-server/logs/common/error
File Sync Logs

Check file synchronization logs:

sudo journalctl -u file-sync.service

Performance Optimization​

Post-Upgrade Optimization

After successful HA upgrade, consider these optimizations:

  1. Service Optimization: Optimize service configurations for HA environment
  2. Network Optimization: Ensure optimal network connectivity between nodes
  3. Database Tuning: Optimize PostgreSQL configuration for HA
  4. File Sync Optimization: Configure optimal file synchronization settings

Monitoring and Maintenance

  1. Regular Health Checks: Schedule regular HA cluster health checks
  2. Performance Monitoring: Monitor system performance on both nodes
  3. Backup Scheduling: Ensure regular backups are maintained
  4. Log Monitoring: Monitor logs for any issues or warnings

Security Considerations​

HA Security

  1. Network Security: Ensure secure communication between HA nodes
  2. Access Control: Verify proper access controls on both nodes
  3. Audit Logging: Enable and monitor audit logs
  4. Firewall Configuration: Configure firewalls appropriately for HA

Post-Upgrade Security

  1. Service Permissions: Verify service permissions are correct
  2. Database Security: Check database security settings
  3. File Permissions: Verify file permissions and ownership
  4. Network Security: Test network security between nodes
