Go Instrumentation

This guide explains how to instrument a Go application by selecting the appropriate deployment type in Motadata APM for trace ingestion.

Prerequisites​

  • The Motadata Agent must be installed and running on the Linux server where the Go application is deployed. Also, the otelcol should be running as part of the Motadata Agent.
    To check the agent status, open a Linux terminal and run:
service motadata status

  • The Motadata Agent version must be:

    • 8.2.0 or higher for Host/VM
    • 8.2.0 or higher for Docker

  • The application must be developed on Go version 1.18 or higher.

  • The Linux kernel version must be 4.4 or higher.

  • The application path must be known before configuring instrumentation.

  • For Docker deployment:

    • Docker version must be 20.1 or higher.
    • The Motadata Agent must be installed on the host machine, but not inside the container.
info

If two or more Docker containers use the same Go application path, they cannot be instrumented.

For example:

Container1: /app/main
Container2: /app/main

To instrument containers independently, each container must use a different Go application path (for example, /app/order-service and /app/payment-service). If multiple containers currently use the same path, rebuild the containers so that each service runs from a unique application path.

  • The application must already be working and able to start without errors.
  • You need root/sudo access if you encounter permission issues.

Configuration Steps​

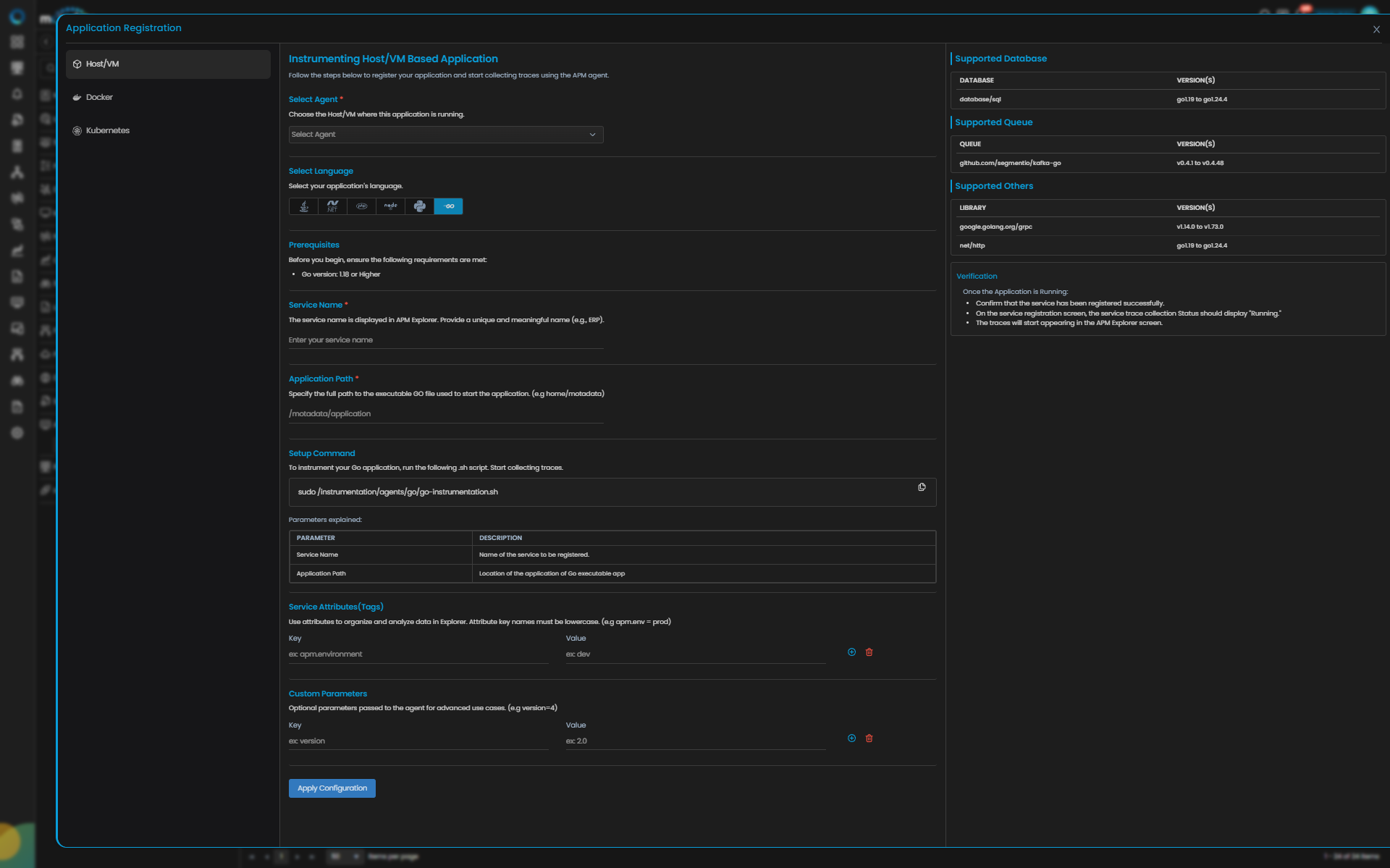

Step1: Register the Application Service in Motadata APM

Go to Menu > Settings > APM > Application Registration. Clicking the Application Registration button, you can register a new application.

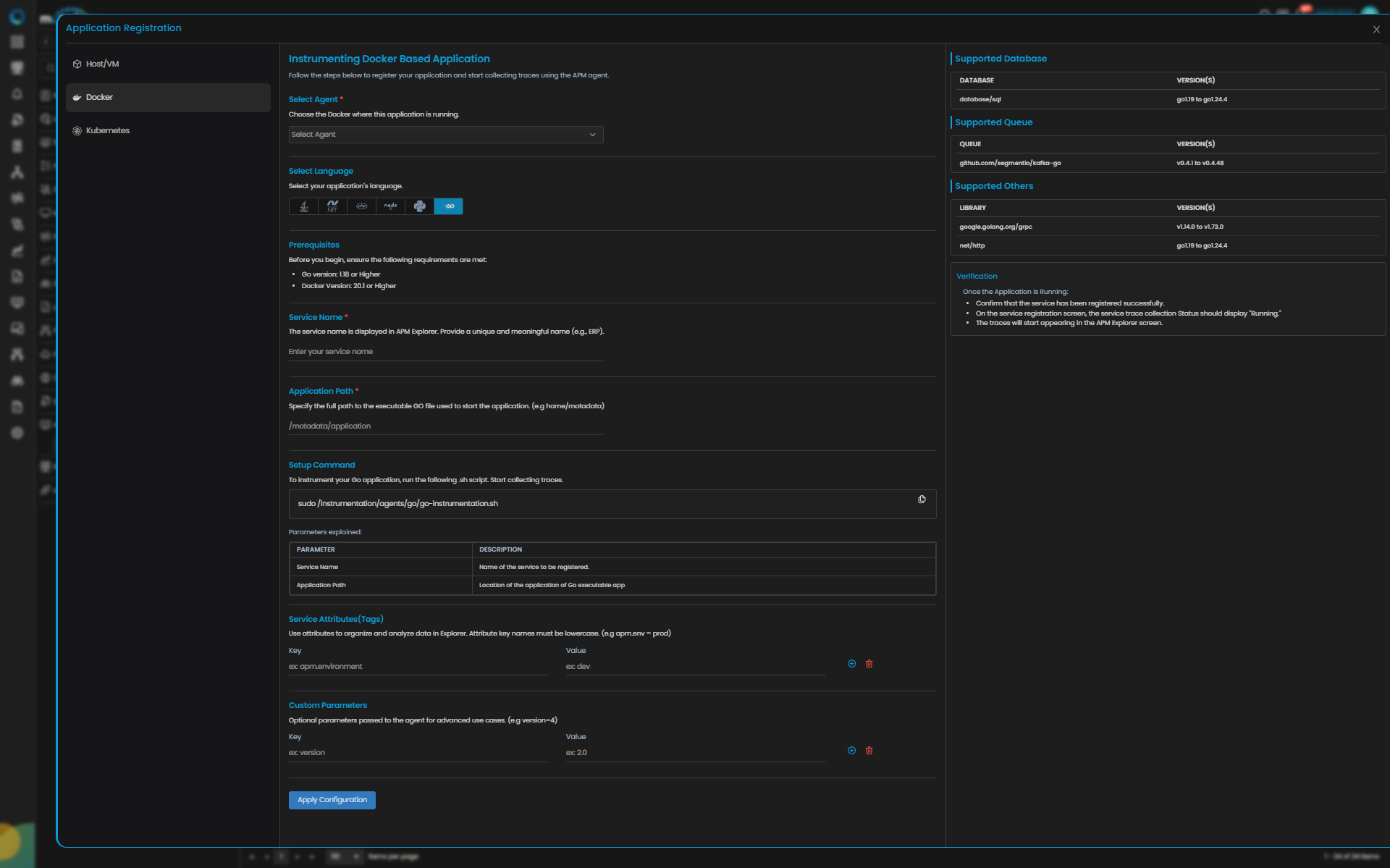

From the application registration screen, select the instrumentation type Host/VM or Docker.

Go Trace Configuration​

FieldDescription
Select AgentSelect the Host/VM where this application is running.
LanguageSelect Go from the language icons.
Service NameProvide a unique and meaningful name (for example, order_service, billing_service, or inventory_service).
Application PathSpecify the full path to the executable Go application used to start the service (for example, /opt/apps/order-service/order-app or /motadata/application).

Providing these details displays the Setup Command to instrument your Go application.

Step2: Configure Go Instrumentation

Instrument Go on Linux Host/VM​

Run the setup command generated in the UI on the same Linux host where the Go application is running.

The setup command is similar to the following:

sudo /motadata/motadata/instrumentation/agents/go/go-instrumentation.sh {ServiceName}

Replace the values in the UI-generated command as applicable to your environment.

info

There is no need to restart the Go application after executing the command.

To verify that the Go instrumentation service is running, execute:

sudo systemctl list-units --type=service --all "go-instr@*"

If the Go application is stopped, restart the associated instrumentation service manually:

systemctl restart go-instr@<service-name>
note

Go tracing may not appear if the application path is incorrect, the instrumentation service is not active, the kernel version is unsupported, or the application is stopped after instrumentation and its associated go-instr@<service-name> unit is not restarted.

Step 3: Provide Optional Details

Setting up the instrumentation you can also add further below details:

FieldDescription
Service Attributes (Tags)Add key–value tags to your application for better filtering and organizing data in Explorer. Attribute key names must be lowercase.
Add Custom ParametersAllows you to define custom parameters for advanced use cases.

Clicking the Apply Configuration button, the ingestion gets started.

Step4: Verify Trace Collection

Once the application is running, verify the below points:

  • Confirm that the service has been registered successfully.
  • On the service registration screen, the Service Trace Collection Status should display "Running."
  • The traces will start appearing in the APM Explorer screen.

Enable Database in GO​

To get database related information for GO application you need to follow the below mentioned SOP:

With DB parsing flags enabled, execute the below commands:

export OTEL_GO_AUTO_INCLUDE_DB_STATEMENT=true

export OTEL_GO_AUTO_PARSE_DB_STATEMENT=true

eBPF can reliably populate with:

db.operation.name

db.collection.name

db.query.text

As db.system is defined at connection creation time and remains inside internal driver and database objects. OTEL eBPF probes execute later at query level, so this value is not available to eBPF instrumentation.

Fix for db.system​

To populate db.system, the database connection must be wrapped using otelsql at connection creation time.

Generic pattern:

db, err := otelsql.Open(driver, dsn,
    otelsql.WithAttributes(semconv.DBSystemNamePostgreSQL),
)

Supported Databases and Required Constants​

info

Constant naming varies by semconv version.

Databaseotelsql.Open Driver NameSemantic Constant (v1.21.0+)Semantic Constant (v1.4.0 - v1.20.0)
PostgreSQL"postgres" / "pgx"semconv.DBSystemNamePostgreSQLsemconv.DBSystemPostgreSQL
MySQL"mysql"semconv.DBSystemNameMySQLsemconv.DBSystemMySQL
MariaDB"mysql"semconv.DBSystemNameMariaDBsemconv.DBSystemMariaDB
SQLite"sqlite"semconv.DBSystemNameSQLitesemconv.DBSystemSQLite
Microsoft SQL Server"sqlserver"semconv.DBSystemNameMicrosoftSQLServersemconv.DBSystemMSSQL
CockroachDB"pgx" / "postgres"semconv.DBSystemNameCockroachDBsemconv.DBSystemCockroachDB
ClickHouse"clickhouse"semconv.DBSystemNameClickHousesemconv.DBSystemClickHouse
Oracle"ora"semconv.DBSystemNameOracleDBsemconv.DBSystemOracle
Trino"trino"semconv.DBSystemNameTrino(not available)
note

The semconv package version is pulled in as a transitive dependency.

  • semconv v1.21.0+ uses constants like DBSystemNamePostgreSQL
  • semconv v1.4.0 - v1.20.0 uses constants like DBSystemPostgreSQL. Check your imported semconv version and use the corresponding constant names.
// For semconv v1.21.0 and later (including v1.27.0)
db, err := otelsql.Open(driver, dsn,
    otelsql.WithAttributes(
        semconv.DBSystemNamePostgreSQL, // replace as per table above
    ),
)

Example (For Older semconv Versions v1.4.0 - v1.20.0)​

// For semconv v1.4.0 through v1.20.0
db, err := otelsql.Open(driver, dsn,
    otelsql.WithAttributes(
        semconv.DBSystemPostgreSQL, // replace as per table above
    ),
)
info

The below are not supported through database/sql.

DatabaseReason
MongoDBNative driver, not database/sql
RedisNative client
DynamoDBAWS SDK
CassandraNative driver
ElasticsearchNative client

If the driver registers itself using sql.Register(...), otelsql works. Otherwise, a dedicated OTEL instrumentation library is required.

Required dependencies for otelsql​

Add the following dependencies in go.mod:

require (
    go.opentelemetry.io/otel v1.39.0
    github.com/XSAM/otelsql v0.29.0
)

Then run:

go mod tidy

Required imports​

import (
    "database/sql"

    "github.com/XSAM/otelsql"
    semconv "go.opentelemetry.io/otel/semconv/v1.27.0"

    _ "github.com/lib/pq"
)

otelsql is a wrapper library. It does not replace the actual database driver, so the required SQL driver must still be imported.

Trace continuity requirement​

OTEL Go Auto-Instrumentation eBPF does not create trace context. It only propagates existing context if that context is passed into the database call.

Do not use:

db.Query(...)
db.Exec(...)
db.QueryRow(...)
db.Prepare(...)
db.Begin()
tx.Query(...)
tx.Exec(...)

Use:

db.QueryContext(ctx, ...)
db.ExecContext(ctx, ...)
db.QueryRowContext(ctx, ...)
db.PrepareContext(ctx, ...)
db.BeginTx(ctx, ...)
tx.QueryContext(ctx, ...)
tx.ExecContext(ctx, ...)

Generic replacement table​

RemoveReplace with
db.Query(q, args...)db.QueryContext(ctx, q, args...)
db.Exec(q, args...)db.ExecContext(ctx, q, args...)
db.QueryRow(q, args...)db.QueryRowContext(ctx, q, args...)
db.Prepare(q)db.PrepareContext(ctx, q)
db.Begin()db.BeginTx(ctx, nil)
tx.Query(q, args...)tx.QueryContext(ctx, q, args...)
tx.Exec(q, args...)tx.ExecContext(ctx, q, args...)

Context import requirement​

If context is not already imported, add it:

import (
    "context"
    "database/sql"
)

If ctx is not available​

Preferred approach:

func getUserData(ctx context.Context, userID int) error {
    rows, err := db.QueryContext(ctx, "SELECT * FROM users WHERE id = ?", userID)
    // ...
}

Fallback approach:

func getUserData(userID int) error {
    ctx := context.Background()
    rows, err := db.QueryContext(ctx, "SELECT * FROM users WHERE id = ?", userID)
    // ...
}

Combined support matrix​

ScenarioTrace continuitydb.system
Pure eBPFNoNo
Context APIs onlyYesNo
otelsql onlyNoYes
Context APIs + otelsqlYesYes

Troubleshooting​

Problem 1: Go instrumentation service is not running​

Cause The instrumentation command may not have completed successfully, or the service may not be active for the selected Go application.

Remedy Check the Go instrumentation services:

sudo systemctl list-units --type=service --all "go-instr@*"

If the application was stopped after instrumentation, restart the associated service:

systemctl restart go-instr@<service-name>

Problem 2: Traces are not visible even though the Go application is running​

Cause The application path may be incorrect, the kernel version may not be supported, the instrumentation service may be inactive, or the Motadata Agent may not be running correctly.

Remedy

  1. Verify the Motadata Agent status:
service motadata status
  1. Verify the kernel version:
uname -r
  1. Confirm the application path used during configuration matches the running executable path.
  2. Check whether the Go instrumentation service is active:
sudo systemctl list-units --type=service --all "go-instr@*"
  1. If required, restart the associated instrumentation service:
systemctl restart go-instr@<service-name>

Problem 3: Traces stop appearing after the Go application is stopped and started again​

Cause For Go instrumentation, stopping the application can require a manual restart of the corresponding instrumentation service.

Remedy Restart the associated Go instrumentation service manually:

systemctl restart go-instr@<service-name>

Then verify the service registration status again from Motadata APM.

Problem 4: Go database spans appear without correct database identification​

Cause Pure OTEL eBPF instrumentation can capture query details, but it cannot capture db.system by design.

Remedy Wrap the database connection using otelsql at connection creation time.

Example:

db, err := otelsql.Open(driver, dsn,
    otelsql.WithAttributes(semconv.DBSystemNamePostgreSQL),
)

Also ensure that the correct SQL driver is imported.

Problem 5: Database spans appear as orphan spans or start new root traces​

Cause The application is using database APIs that do not accept context.Context, so OTEL cannot link the DB span to the parent trace.

Remedy Replace non-context APIs with context-aware variants.

Use:

db.QueryContext(ctx, ...)
db.ExecContext(ctx, ...)
db.QueryRowContext(ctx, ...)
db.PrepareContext(ctx, ...)
db.BeginTx(ctx, ...)
tx.QueryContext(ctx, ...)
tx.ExecContext(ctx, ...)

Do not use:

db.Query(...)
db.Exec(...)
db.QueryRow(...)
db.Prepare(...)
db.Begin()
tx.Query(...)
tx.Exec(...)

Problem 6: ctx is undefined while migrating to context-aware DB APIs​

Cause The application code is using *Context(...) APIs without making ctx available in the current function scope.

Remedy Either accept context.Context as a function parameter, or initialize a fallback context.

Preferred:

func getUserData(ctx context.Context, userID int) error {
    rows, err := db.QueryContext(ctx, "SELECT * FROM users WHERE id = ?", userID)
    // ...
}

Fallback:

func getUserData(userID int) error {
    ctx := context.Background()
    rows, err := db.QueryContext(ctx, "SELECT * FROM users WHERE id = ?", userID)
    // ...
}

Problem 7: Go application uses non-database/sql database clients​

Cause otelsql only works with drivers that register through database/sql.

Remedy For databases such as MongoDB, Redis, DynamoDB, Cassandra, or Elasticsearch, use a dedicated OTEL instrumentation library instead of otelsql.
