Plugin Server Setup Guide

Enables extensible automation capabilities by hosting and executing custom plugins that integrate with ServiceOps to perform specialized functions and integrations.

The Plugin Server is a specialized component of ServiceOps that hosts and executes custom plugins to extend the platform's functionality. This guide provides step-by-step instructions for installing and configuring the Plugin Server on Ubuntu and Red Hat Enterprise Linux systems.

The Plugin Server architecture enables:

  • Extensibility: Add custom functionality without modifying the core platform.
  • Isolation: Separate plugin execution from the main application.
  • Scalability: Run plugins on dedicated servers for better performance.

Prerequisites​

Before installing, ensure your environment meets the following requirements.

System and Network Requirements

System Requirements

  • Operating System: Ubuntu 22.04 LTS+ or Red Hat Enterprise Linux 9.2+
  • Hardware: Minimum 4GB RAM (8GB recommended), 20GB disk space.
  • Software: Java Runtime Environment (JRE) 8 or later.

Network Requirements

  • Ports: The Plugin Server uses port 8080 by default. Ensure it is open and that there is bidirectional communication with the main ServiceOps server (typically on port 80/443).
  • Firewall: Configure firewall rules to allow traffic on the required ports.

Main Server Requirements

  • ServiceOps Version: v8.3.9 and above.
  • Access: Administrative access to configure plugins.

Installation and Configuration​

Step 1: Install the Plugin Server​

  1. Download: Get the appropriate package for your OS from the Download Links.

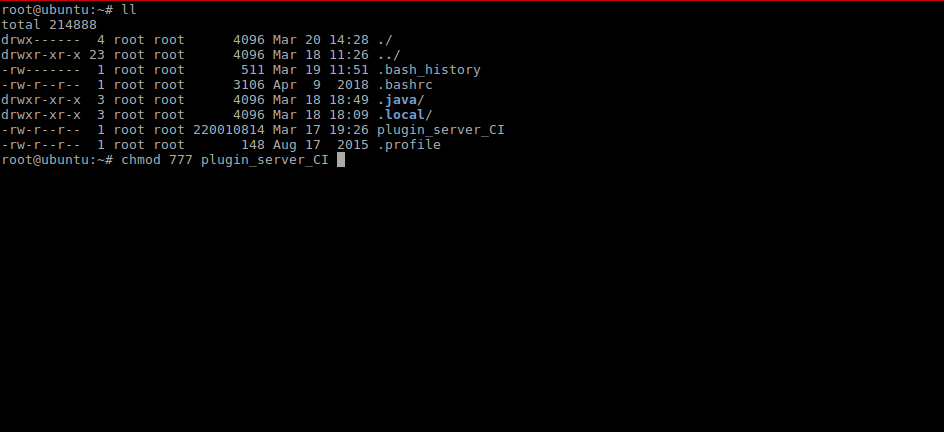

  2. Prepare: Transfer the file to your server and set execute permissions:

    sudo chmod 777 plugin_server_CI

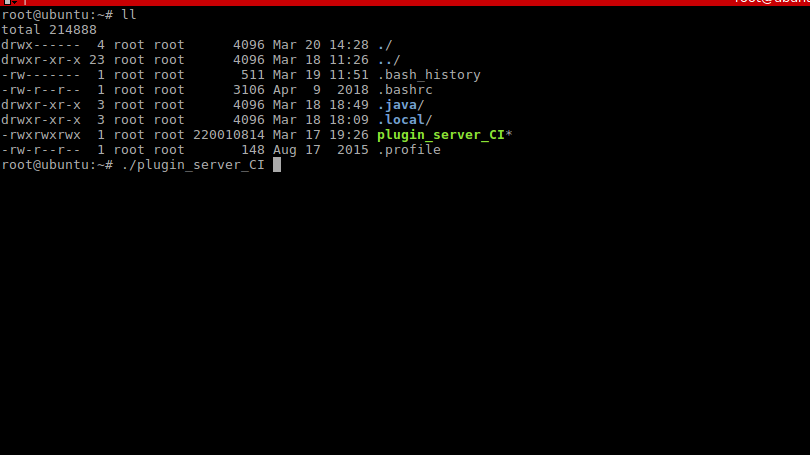

  3. Install: Run the installation script:

    sudo ./plugin_server_CI

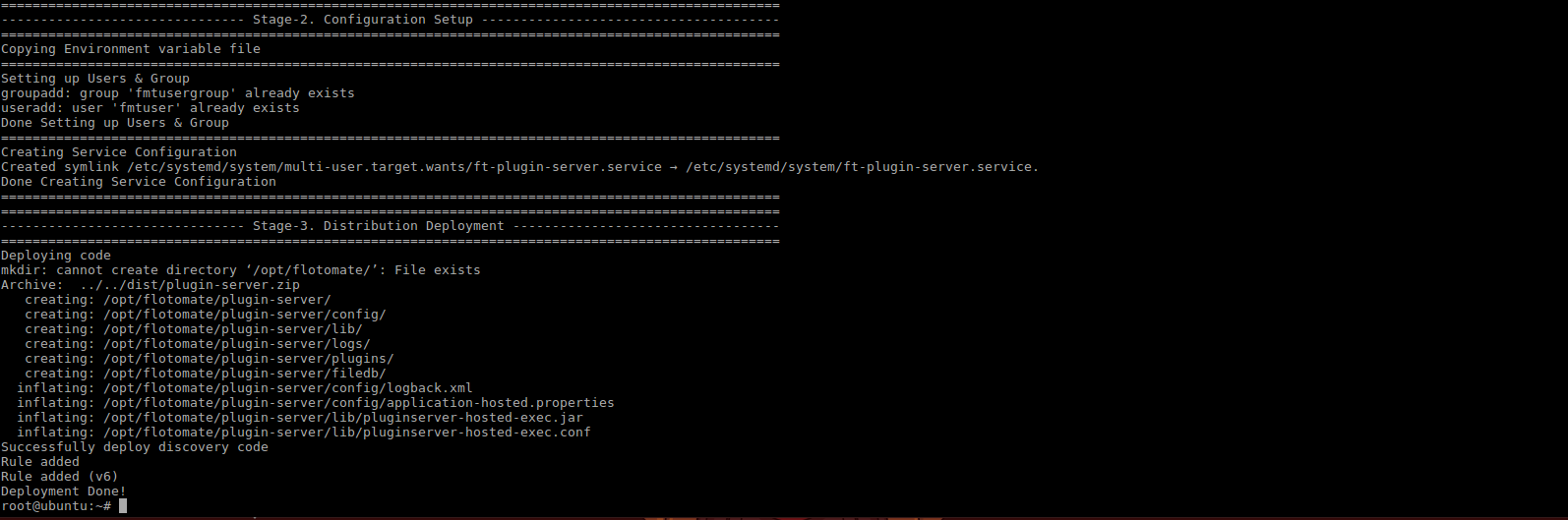

    A success message will be displayed upon completion.

  4. Verify: Check that the service is active and running:

    systemctl status ft-plugins-server

Step 2: Configure Main Server Connection​

The Plugin Server must be able to communicate with the main ServiceOps server.

  1. Edit the configuration file:
    sudo nano /opt/flotomate/plugin-server/config/application-hosted.properties
  2. Update the connection URL to point to your main server's IP and port if it's not on localhost:
    com.flotomate.mainserver.connection.url=http://your-main-server-ip:port/api
  3. Restart the service:
    sudo systemctl restart ft-plugins-server

Operations and Plugin Management​

Service Management
Manage the Plugin Server service using systemctl commands.
  • Start: sudo systemctl start ft-plugins-server
  • Stop: sudo systemctl stop ft-plugins-server
  • Restart: sudo systemctl restart ft-plugins-server
  • Enable Auto-Start: sudo systemctl enable ft-plugins-server
Plugin Management

After installing the Plugin Server, upload and register plugins through the ServiceOps UI.

  1. Login as an administrator.
  2. Navigate to Admin > Automation > Integrations > Plugin.
  3. Upload the desired .fp plugin file.
  4. Register the uploaded plugin from the dropdown menu.

Supported Plugin Types:

  • Standard: For custom automation and third-party integrations.
  • Report: To generate custom reports and export data.
  • Chat: To integrate with customer bots and train AI models.
Monitoring and Maintenance

Monitoring Logs

  • Real-Time Logs: sudo journalctl -u ft-plugins-server -f
  • Log Files: Check /opt/flotomate/plugin-server/logs/ for plugin-server.log and error.log.

Regular Maintenance

  • Log Rotation: Implement log rotation to manage disk space.
  • Updates: Regularly update plugins and the Plugin Server itself.
  • Backups: Periodically back up the configuration and plugin directories.

Troubleshooting​

Common Installation and Performance Issues

Permission Denied Errors

  • Solution: Ensure you are running commands with sudo and have set execute permissions on the installer.

Service Fails to Start

  • Solution: Check the service logs with journalctl. Verify that Java is installed and that the required ports are not in use by another service.

Connection Issues with Main Server

  • Solution: Use ping and telnet to verify network connectivity to the main server. Check the connection URL in application-hosted.properties and verify firewall rules.

Performance Issues

  • Solution: For high memory usage or slow plugin execution, monitor system resources (htop) and consider adjusting the JVM memory settings in the Advanced Configuration.
