Advanced Configuration

Provides advanced configuration options for Plugin Server deployment, including memory optimization, port configuration, security settings, and performance tuning for production environments.

This guide covers sophisticated setup options for the Plugin Server that go beyond basic installation, essential for production environments and high-performance deployments.

Core Configurations​

Memory Configuration

Memory configuration is critical for plugin performance.

Prerequisites

  • Plugin Server installed and running
  • Administrative access
  • Knowledge of your server's total memory

Memory Allocation Guidelines

Total Server MemoryPlugin Server Min MemoryPlugin Server Max Memory
16GB512MB1536MB
32GB512MB2048MB
64GB512MB2048MB

Configuration Steps

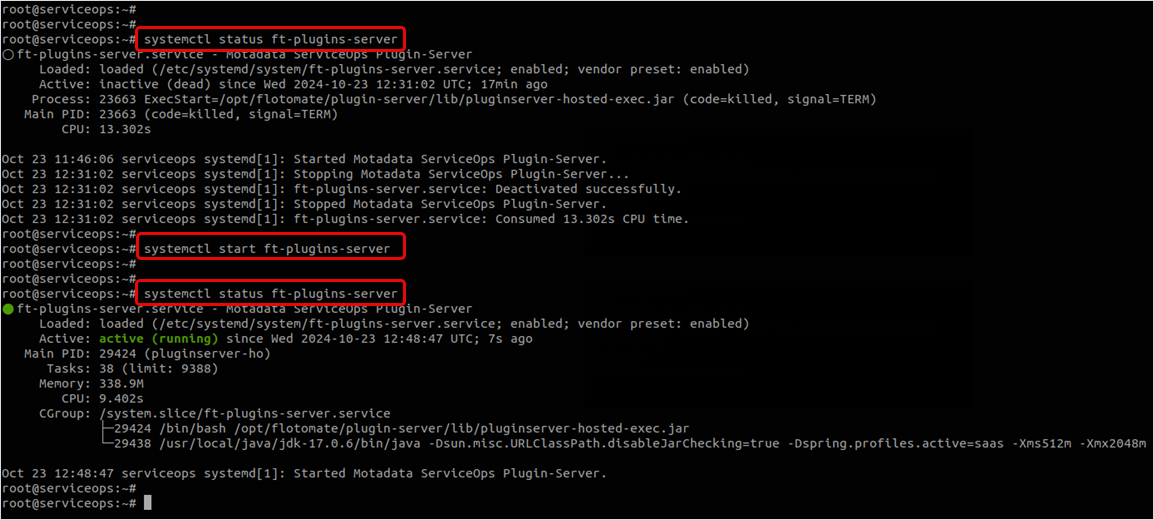

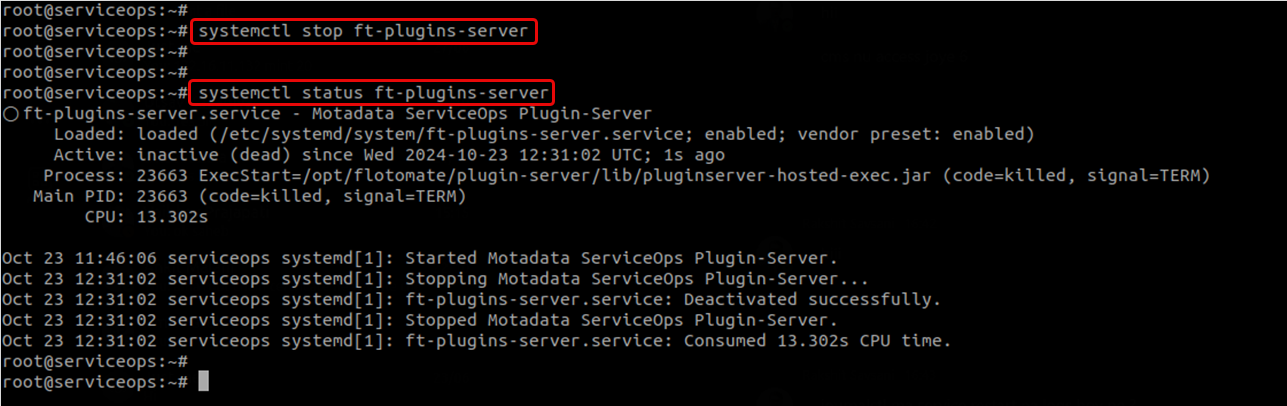

  1. Stop the service: sudo systemctl stop ft-plugins-server

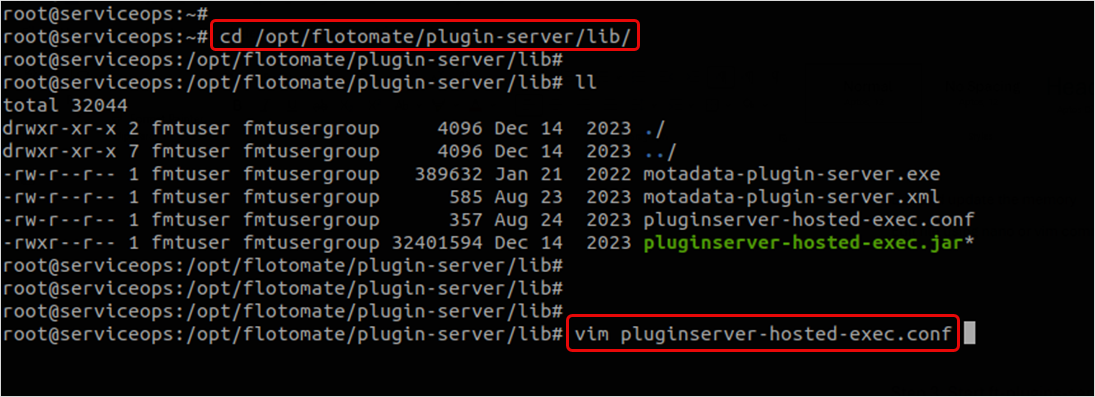

  2. Edit the configuration file: sudo nano /opt/flotomate/plugin-server/lib/pluginserver-hosted-exec.conf

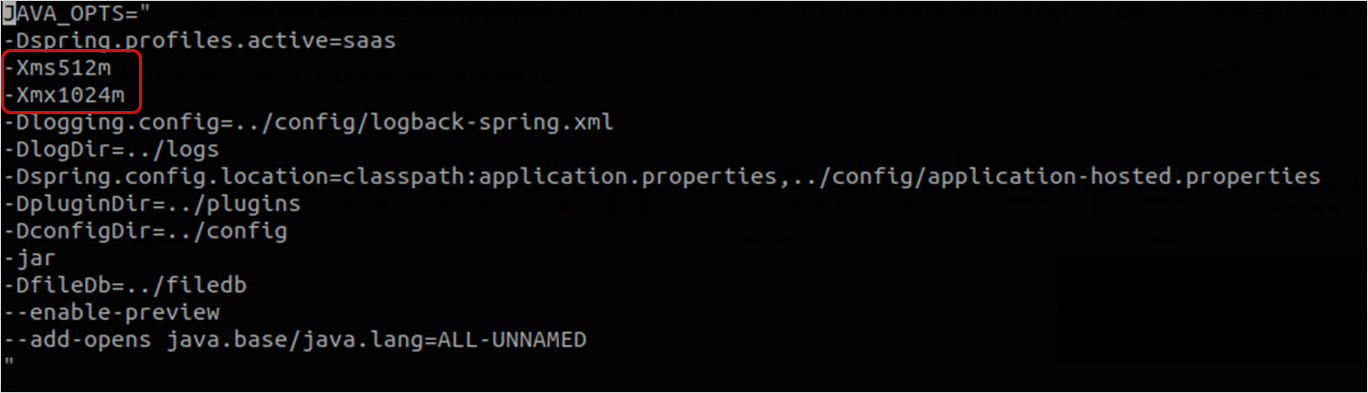

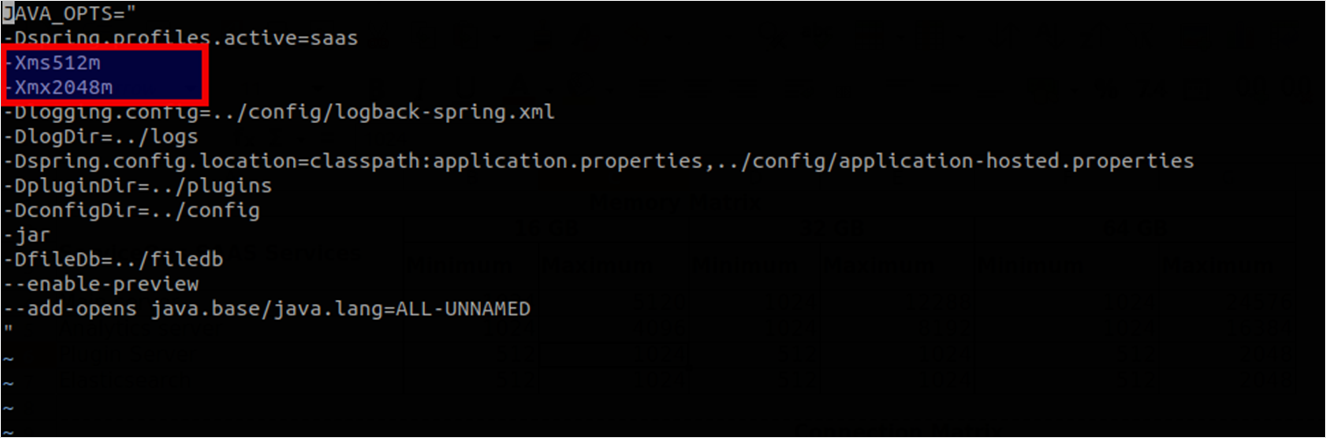

  3. Modify memory settings: Locate the line with -Xms and -Xmx and update the values based on your server capacity. For a 64GB server, you might use: -Xms512m -Xmx2048m

  1. Save and restart: Save the file and restart the service:

    sudo systemctl start ft-plugins-server

Best Practices

  • -Xms: Set to 512MB for most deployments.
  • -Xmx: Should not exceed 50% of total server memory.
  • Monitor memory usage and consider GC tuning for large deployments.
Port Configuration

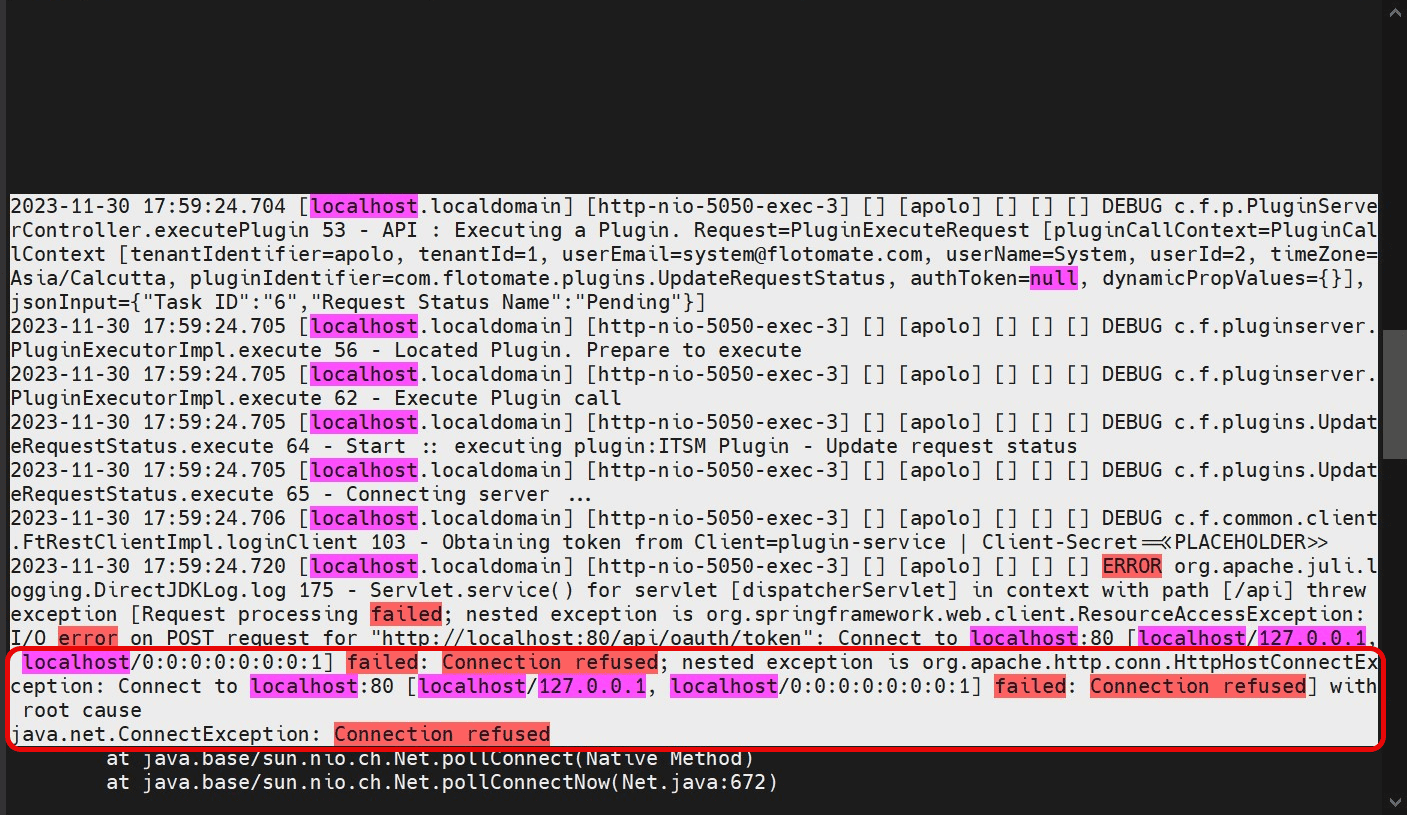

The default Plugin Server port is 5050. Change it to avoid conflicts or meet security requirements. This is required for ServiceOps v8.3.9 and above if you encounter a "Connection refused" error.

Configuration Steps

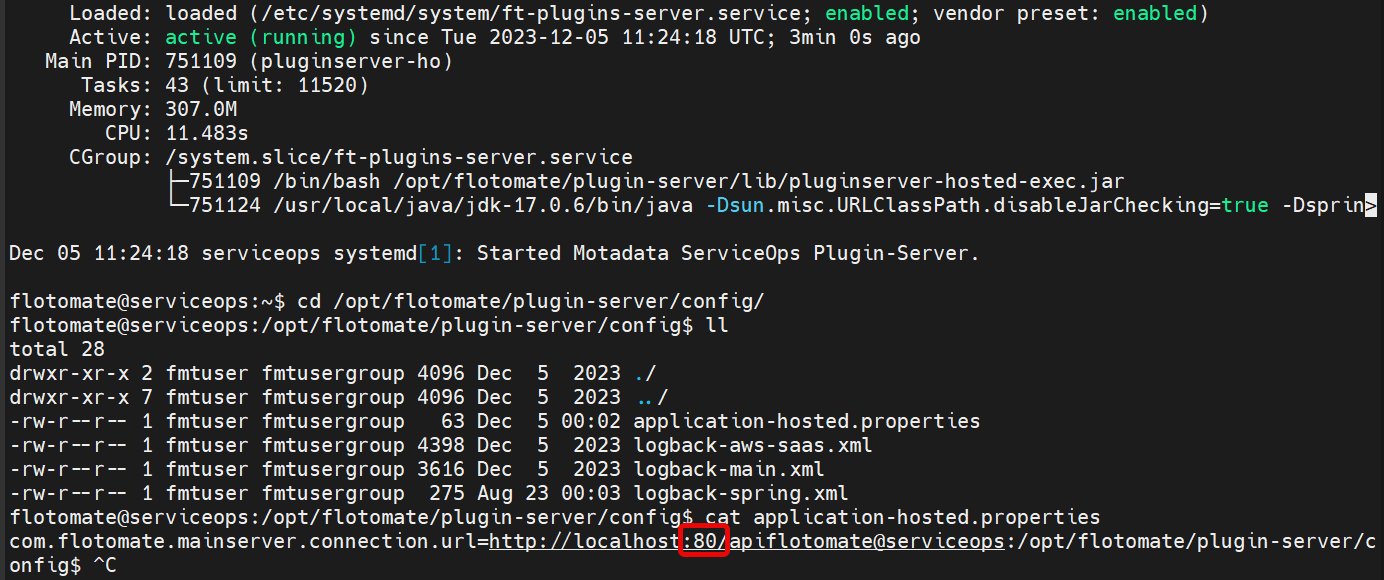

  1. Navigate to the config directory: cd /opt/flotomate/plugin-server/config/

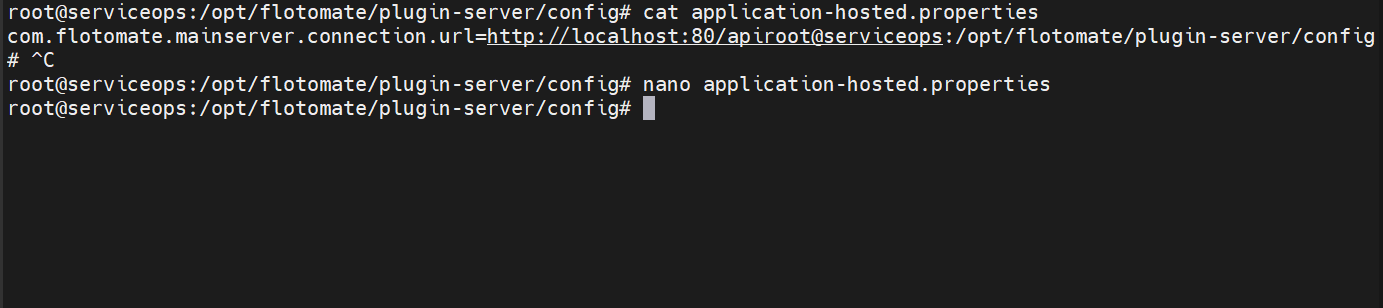

  2. Edit the properties file: sudo nano application-hosted.properties

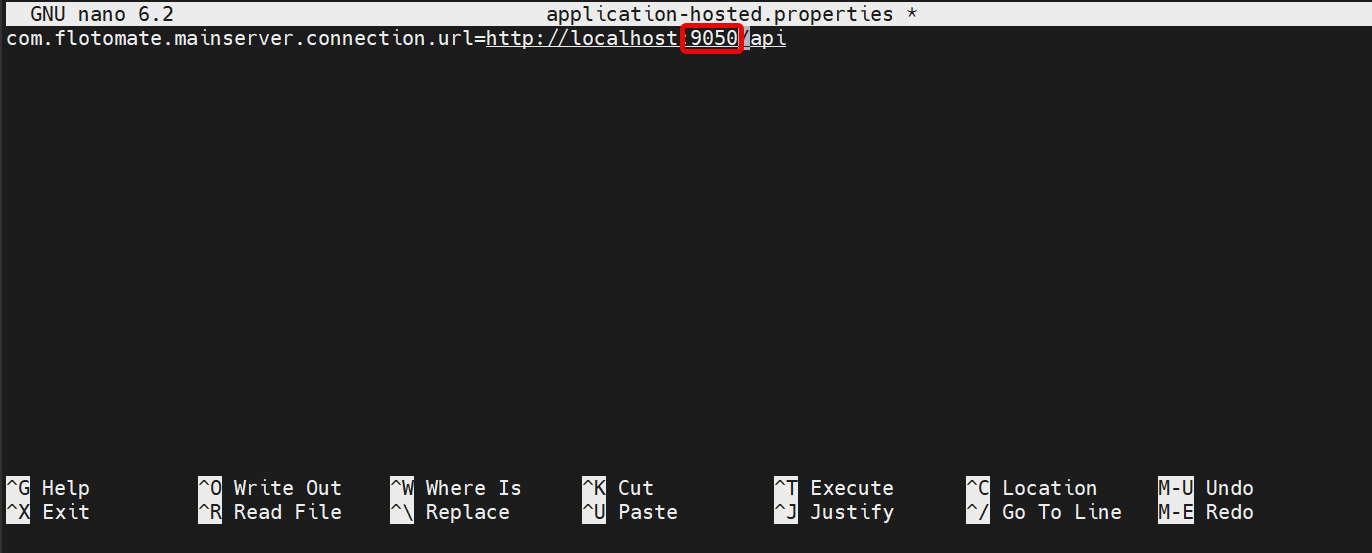

  3. Update the connection URL with the new port number. For example:

    com.flotomate.mainserver.connection.url=http://localhost:9050/api

  4. Save and restart the ft-plugins-server service.

Best Practices

  • Document port changes and update firewall rules accordingly.

Security and Performance​

Security Configuration (SSL/TLS and Firewall)

Implement SSL/TLS

For production, secure communication with an SSL/TLS certificate.

  1. Obtain a certificate (e.g., generate a self-signed one for testing with openssl).
  2. Place certificate files in a secure directory (e.g., /opt/flotomate/plugin-server/ssl).
  3. Edit application-hosted.properties to enable SSL and provide the keystore path and password.
  4. Update the main server connection URL to use https.
  5. Restart the service.

Configure Firewall Rules

Implement firewall rules to restrict access to the Plugin Server port.

  • UFW (Ubuntu): sudo ufw allow 5050/tcp
  • firewalld (RHEL/CentOS): sudo firewall-cmd --permanent --add-port=5050/tcp
  • It is highly recommended to only allow traffic from specific IP ranges.
Performance Optimization (Connection Pooling and JVM Tuning)

Configure Connection Pooling

Optimize database connections for better performance by adding HikariCP settings to application-hosted.properties.

Deployment SizeMin ConnectionsMax Connections
Small (1-50 users)520
Medium (50-200 users)1050
Large (200+ users)20100

JVM Tuning

Optimize JVM settings in pluginserver-hosted-exec.conf by adding parameters for garbage collection and performance.

properties
# Example GC tuning
-XX:+UseG1GC
-XX:MaxGCPauseMillis=200

Advanced Operations​

High Availability and Backup

High Availability Configuration For HA, configure multiple Plugin Servers behind a load balancer (e.g., HAProxy, Nginx) and use shared storage for plugin files.

Backup and Recovery Implement an automated backup script to regularly back up the /opt/flotomate/plugin-server/config/, /plugins/, and /logs/ directories. Document and test your recovery procedures.

Troubleshooting and Debugging

Common Issues

  • Memory Issues: Check memory usage (free -h), review JVM settings, and consider horizontal scaling.
  • Performance Issues: Monitor server resources, optimize plugin code, and tune JVM settings.
  • Security Issues: Verify SSL certificates, firewall rules, and authentication credentials.

Advanced Debugging

  • Enable Debug Logging: Edit logback.xml to set the root level to DEBUG.
  • Network Diagnostics: Use tools like telnet, netstat, openssl s_client, and tcpdump to diagnose connectivity issues.
