Host Mapper

Host Mapper helps you in defining a host name with the trap IP address. This hostname reflects as a column in the trap menu.

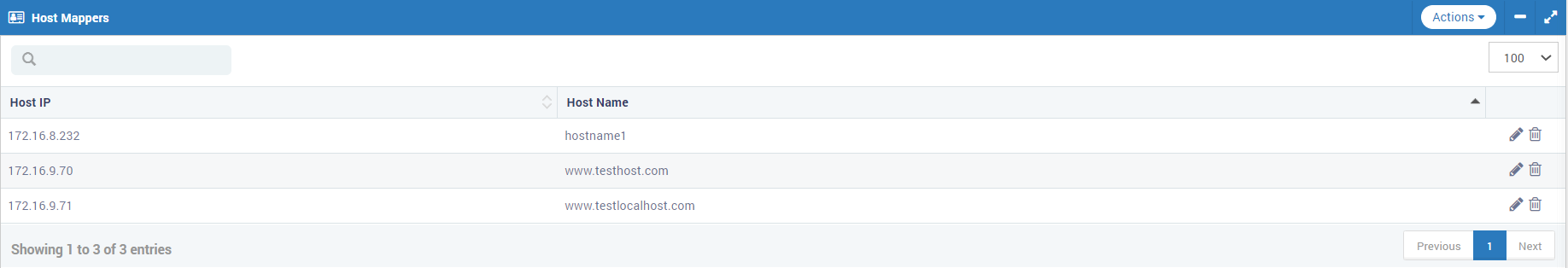

Host Mapper List

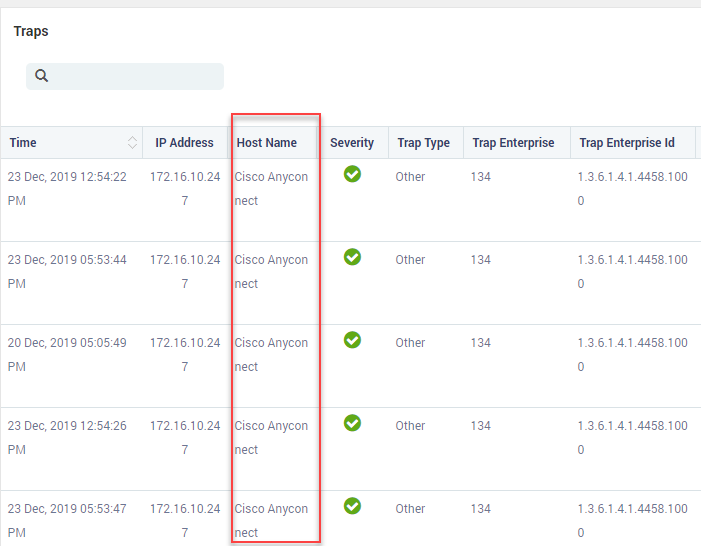

Trap output with hostname column

Create New Host Mapper​

Click on the ‘Actions’ button to Create a new Host Mapper entry. A popup opens up for you to create entry. You can add entry in two ways:

Upload CSV: You can enter bulk entries through a CSV file. For this, use a 2 column CSV file. In the first column, mention all the IP addresses. In second column, type all the hostname. System will match the IP and hostname row wise and import it into the system. You can also download the provided Sample CSV to avoid mismatches.

note

Don’t create a header in CSV file.

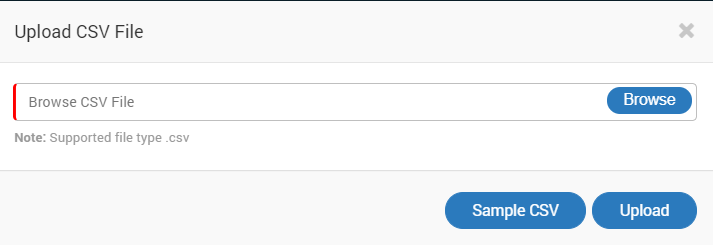

Add Host Mapper using upload csv

  • Create: Here you can perform a Single entry by adding IP Address and Host Name in respective columns.

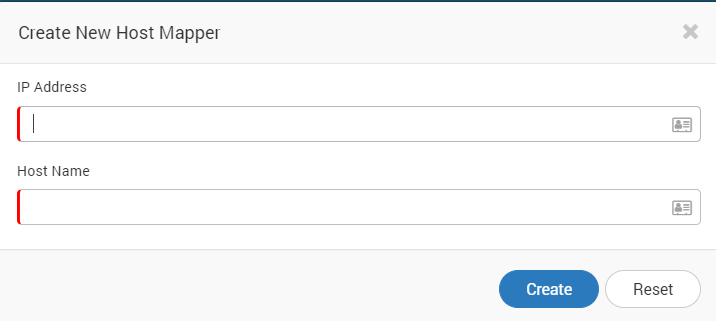

Add Host Mapper

Edit and Delete Host Mapper​

You can edit the host name in the DNS entry. Click on the edit button to edit the entry and delete button to delete the entry.

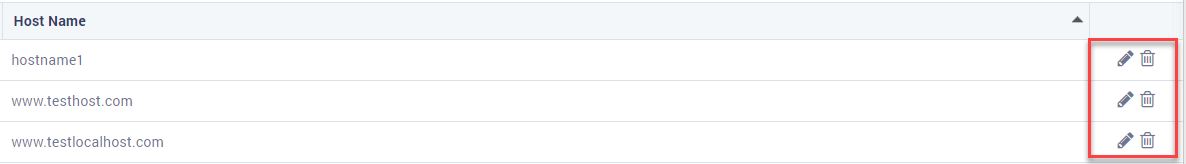

Edit DNS Entry
