Alert Settings

Alert settings is a section to manage the behavior of alerts in Motadata. Manage the following settings related to alerts in Motadata:

  • Business hours - Motadata sends a notification only in the business hours.
  • Mail Server - Configure the email address using from which you want to receive Motadata’s emails.
  • Severities - Change the severities color or name. Severities are used to indicate the health of the monitor.
  • Availability Status - Shows the status values used in Motadata for each availability status
  • Trap Filters - Type the OID for which Motadata SHOULD NOT receive traps.
  • Trap Forwarders - Type the IP and port of the device on which you want to forward the trap.
  • Trap Listener - Type the credentials to to enable monitoring of V3 type of traps.
  • Alert Correlation File Upload - Select to upload the Correlation file in form of .csv. Here, to upload the file, flag of Auto Correlation needs to be enabled in Global Settings. You can either upload the existing file with .csv or download the sample file and make required changes.

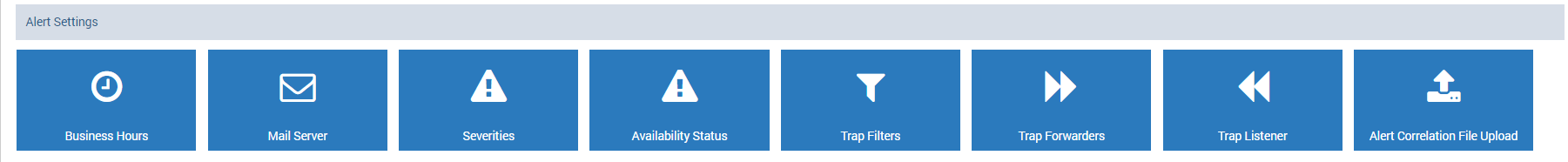

Alert Settings

Alert Settings

Business Hours

Create the business hours profile in this section. A business hours profile contains the selection of working days and hours of a week. You’ll use these profiles across Motadata to manage the time of the notifications. Once you have configured the business hours profile with the alert, Motadata will evaluate the associated profile to send the alert. By default the business hour in Motadata server is 24x7.

Create/Edit Business Hours

Create/Edit Business Hours

Click on the +New button to create a new profile or to edit an existing profile. The GUI is same for both operations.

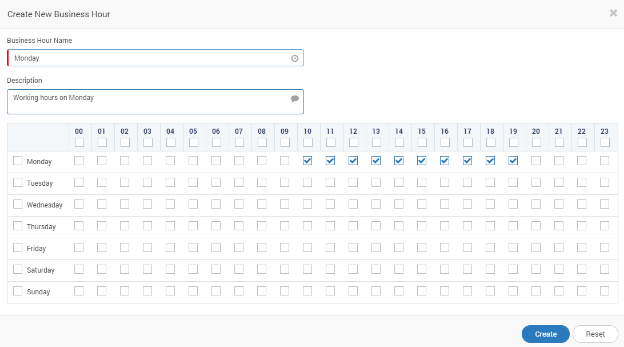

Create new business hours

Manage Business Hours

Use the grid of weekdays and hours to manage a profile. For each day (say Monday), select the hours on which Motadata should send the alerts. For example, if the business hours are from 10 AM to 7 PM, select all the checkboxes from 10 to 19.

note

Here, whatever last end time is selected in Business Hours, you will get an email for “+1 hour”. For Example. If you have selected Business Hours as 07:00AM-8:00AM you will get an email alert till 9:00 AM.

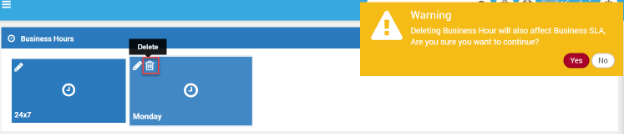

Delete Business Hours: Click on the delete button to delete the business hours. Note that, when you delete the business hours profile, the SLA using the profile will be affected. Motadata gives you a warning message to prevent accidental deletion of profile.

Delete Business Hours Profile

Delete Business Hours Profile

Mail Server

Motadata sends alert as the email using the mail server. Motadata uses SMTP for authentication. You can find the SMTP settings of the mail server on internet.

Configure Mail Server: To configure Mail Server, you need to mention the following parameters:

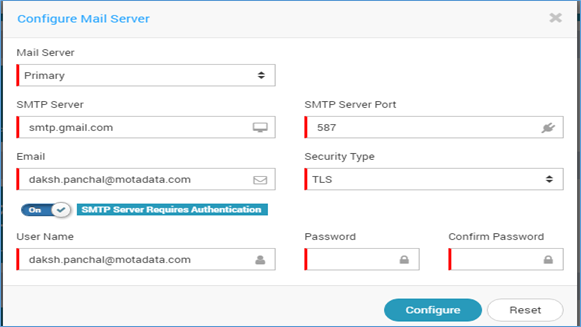

configure mail server

Configure Mail Server

Mail Server

You can use two email servers:

- Primary: Default email server

- Secondary: If primary is not available, secondary will be in use

SMTP ServerType the SMTP value of your email server.
SMTP Server PortType the port number of your SMTP email server.
EmailType the email address using which Motadata will send email.
Security TypeType the security-type used by your SMTP server.
UsernameType the username to authenticate the email address.
PasswordType the password to authenticate the email address.
Confirm PasswordType the password again to authenticate the email address.

Severities

Motadata comes along with 10 pre-defined severities in ascending order based on the level of security. You’ll use these severities across the Motadata platform. Severity helps in indicating the health of your network. These severities are used while creating the alerts. Monitor alerts use Warning, Major, Critical, Unreachable and None severities while flow/log alerts uses all severities to create actions.

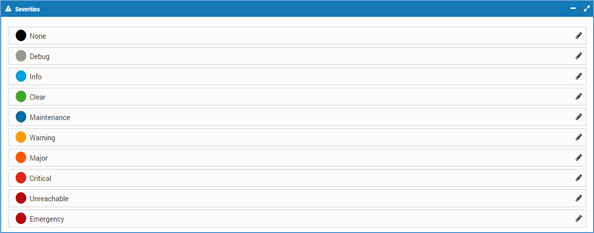

Severity Information: The order cannot be changed but the color associated with the severity can be changed.

severity Information

Severity Information

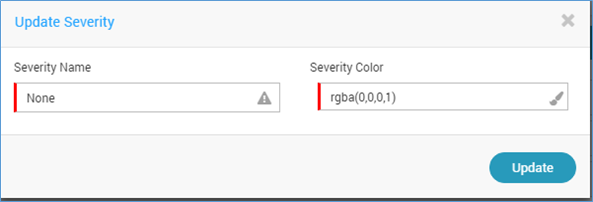

Update Severity: Select the name of severity and provide a new color code to it.

update severity

Update Severity

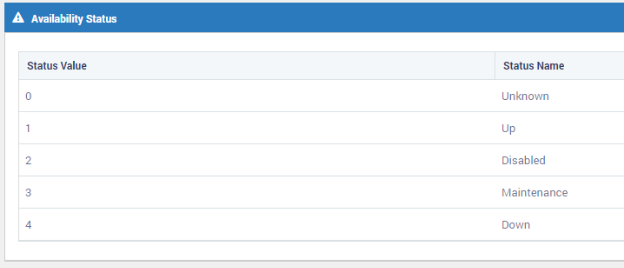

Availability Status

Availability status shows the status values against each availability status. These status are used across Motadata while creating the alerts or SLA.

Availability Status

Availability Status

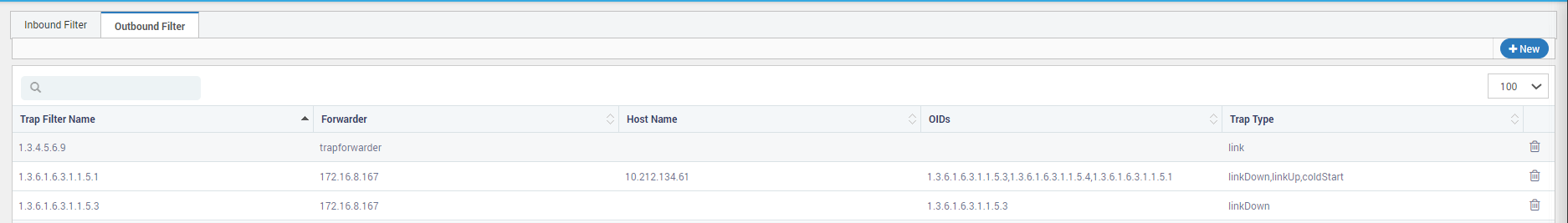

Trap Filters

With SNMP, each appliance sends SNMP traps for various component failures or status changes. To exclude the traps of certain SNMP devices, we create filters based on their OID. Using trap filters, you can create filters based on OID and/or Hostname. Click on the +New button to create a trap filter.

Trap Filters

Trap Filters

  • In ‘Filter By’, select how you want to filter the traps. There are 2 types for the creation of the filters:

    a. Inbound Filter

    • You can create a filter based on OID, hostname or both.

    • Based on the selection, type the OID and/or Hostname.

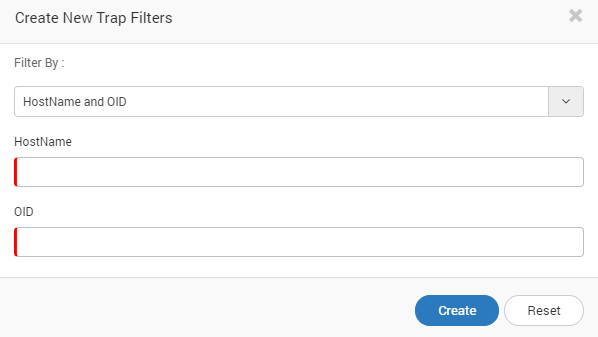

Create Inbound Trap Filter

Create Inbound Trap Filter

b. Outbound Filters

  • We can create a filter based on trap OID, type and hostname and link it with the trap forwarder
  • Based on selection select the trap forwarded to be linked from the drop-down

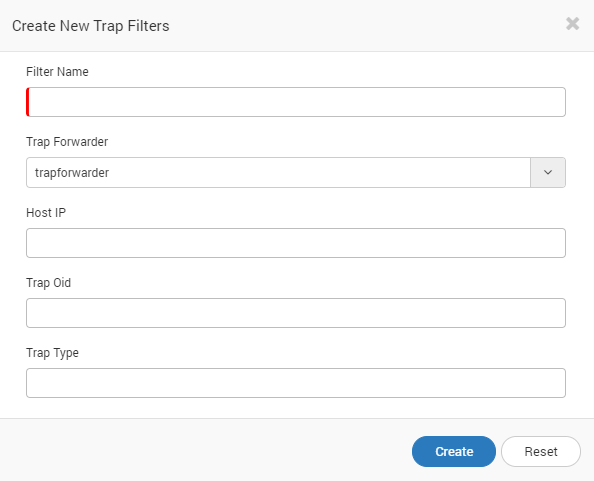

Create Outbound Trap Filter

Trap Forwarders

Trap forwarding is a feature that helps you to forward SNMP traps from Motadata to another devices. The traps can be forwarded to the device by only configuring the host (to where you want to forward the trap) and port in Motadata. Though you can send the traps to any device, that device should have sufficient resources to receive and read the traps. Note that, when you set ‘Trap Forwarding’, Motadata forwards ALL of the Trap data and doesn’t keep a local copy. Hence, if the receiving device is not capable enough, the trap data could be lost.

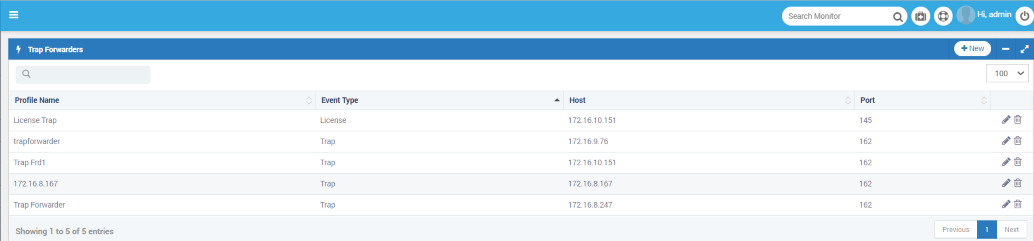

Trap Forwarders

Trap Forwarders

Click on the +New button to set the new trap forwarding address or click on the button to edit an existing address.

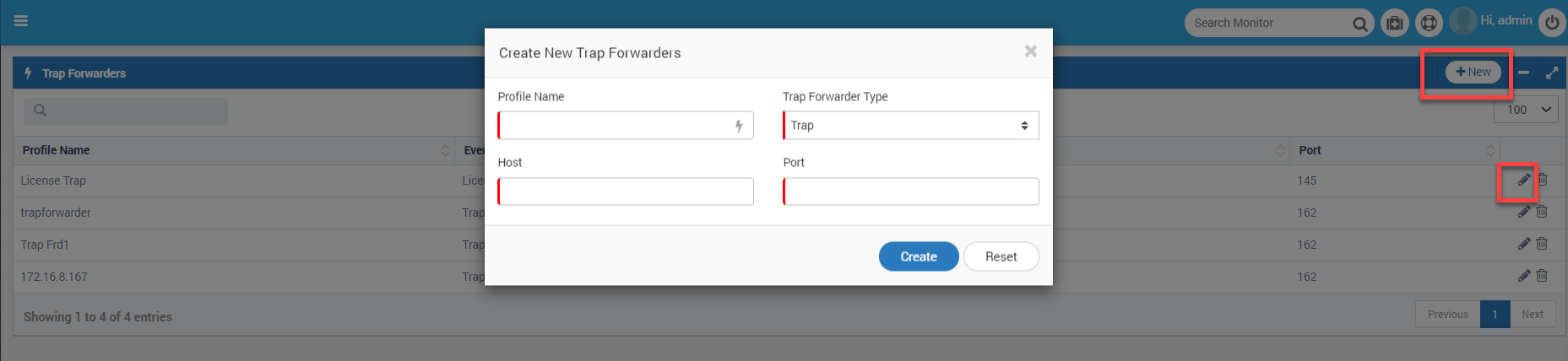

Trap Forwarding Settings

Trap Forwarding Settings

  • Profile Name: Mention the desired name of the trap
  • Trap Forwarder Type: You can select the Forwarder Type from the drop-down. Available options are: Trap and License
  • Host: Mention the IP of the host to where you want to forward the trap
  • Port: Mention the Port of the host

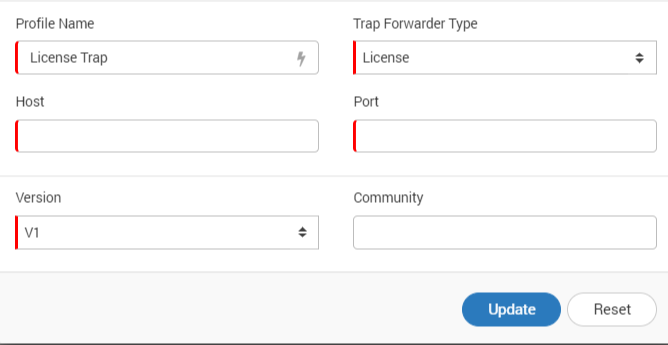

License Trap Forwarding

License Trap forwarding is mostly useful in case of notification or intimation about the expiry. Click on the +New button to set the new License trap forwarding address or click on the button to edit an existing address. Fill up the below fields for trap creation.

License Trap Forwarding

  • Profile Name: Mention the desired name of the trap
  • Trap Forwarder Type: You can select the Forwarder Type from the drop-down. Available options are: Trap and License
  • Host: Mention the IP of the host to where you want to forward the trap
  • Port: Mention the Port of the host
  • Version: Select the version of the Trap from the drop-down. Selection of the correct trap version is mandatory for trap forwarding
  • Community: Mention the community of the trap as desired. This is an optional field. It can be blank.

Trap Listener

Trap Listener allows Motadata to monitor the V3 version of traps. The V1 and V2 versions are available by default in Motadata. To enable monitoring of V3 version, configure the v3 version trap profile. You can configure only 1 v3 profile at a time. If you want a different profile, you can replace the existing profile. Also, you need to restart Motadata service after creating/updating the trap listener profile.

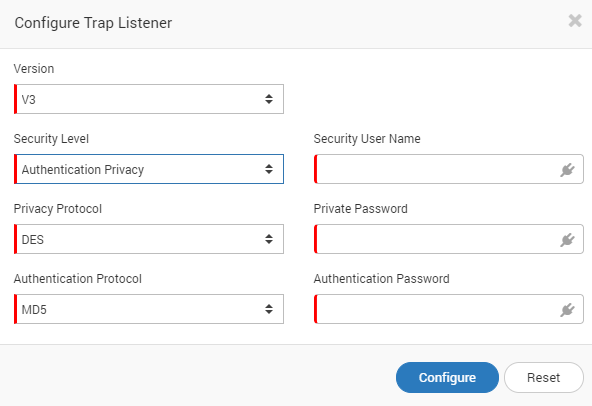

Trap Listener

Trap Listener

FieldDescription
VersionName of the trap version
Security Level

Level of security required by trap

- No Authentication No Privacy

- Authentication No Privacy

- Authentication Privacy

Security UsernameType the username to access the traps
Authentication Protocol

Select from the authentication protocol:

- SHA

- MD5

Authentication PasswordType the password to authenticate accessing the traps
Privacy Protocol

Select from the list of privacy protocols:

- DES

- 3DES

- AES128

- AES192

- AES256

Private PasswordType the password for the privacy protocol
note

Some options may appear/disappear based on the level of security you select in ‘Security Level’.

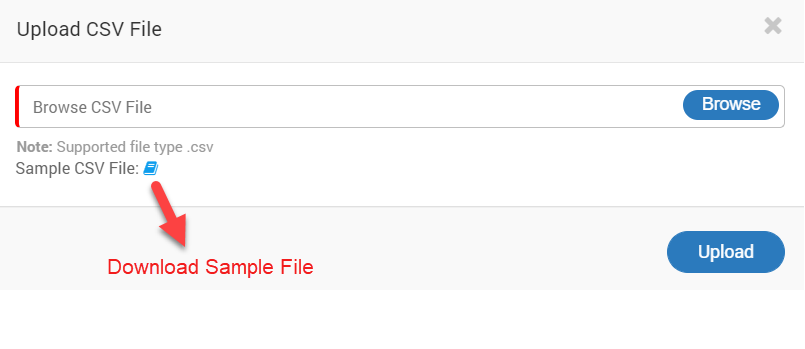

Auto Correlation file Upload

Auto Correlation file upload allows you to upload a CSV file for establishing alert relations between any Child/Parent Devices or Monitors.

Here, you can upload a csv file from your local setup or download the Sample CSV provided and make the required changes.

Auto Correlation file Upload
