Telnet Runbook
A Telnet runbook sends commands over Telnet to legacy devices that do not support SSH, and shows the raw response on the result screen.
When to Use
Use Telnet only when the target device cannot be reached over SSH. Telnet transmits credentials and output in cleartext, so prefer SSH whenever the device supports it.
Fields
| Field | What to enter |
|---|---|
| Runbook Name | A short, unique name. |
| Description | One line on what the runbook does. |
| Runbook Category | Diagnostics, Performance Monitoring, Troubleshooting, System Management, Log Collection, Network Config, or Integration. |
| Monitor | Pick by Group, Tag, IP/Host, or Monitors. |
| Credential Profile | The Telnet credential. Click Create Credential Profile if none fits. |
| Port | Telnet port. Defaults to 23. |
| Timeout | Seconds to wait before marking the run Failed. |
| Telnet Script | The command sequence the agent sends over the Telnet session. |
| Add Variable | Prompts the user for a value at run time. Reference it as $$$variable.name$$$ in the script. |
note
The Telnet form has no Script Language, no Parsing Script, and no sample parser panel. The result screen shows the raw Telnet response.
Steps

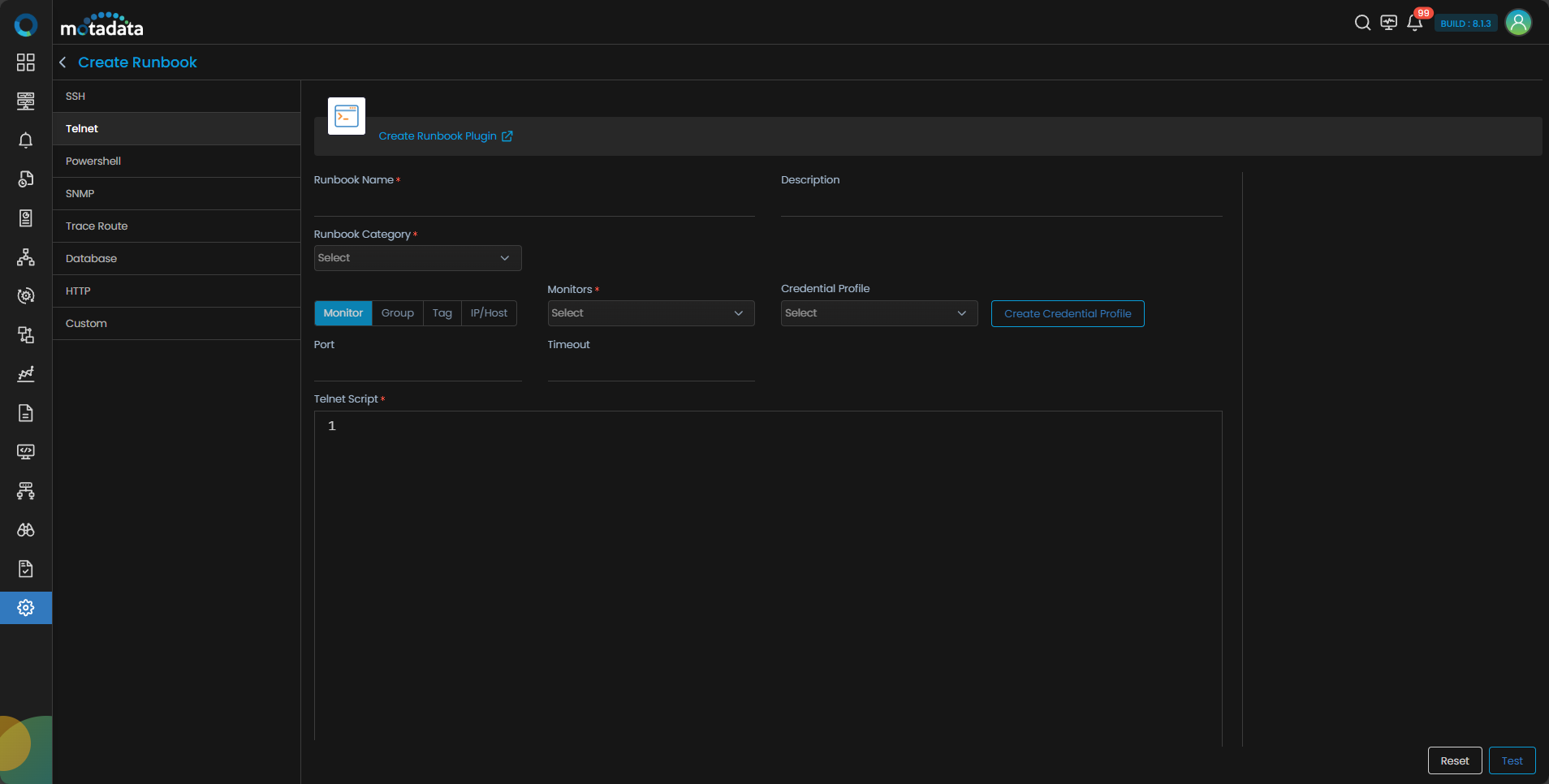

- Open Settings > Plugin Library > Runbook and click Create Runbook Plugin.
- Pick Telnet from the top menu.
- Fill in the fields above.
- Click Test to open a Telnet session to the monitor, send the script, and show the response.
- Click Save.
