Visualize NetRoute

Overview

NetRoute within Motadata AIOps delivers comprehensive network visibility by presenting a topological view of end-to-end network paths. This feature enables users to gain a clear understanding of traffic flow and routing across their infrastructure.

Real-time monitoring capabilities allow for the detection of route changes and the analysis of multi-path traffic, while hop-by-hop performance metrics highlight active paths and identify critical issues such as packet loss and slowdowns.

By providing historical path analysis, NetRoute facilitates in-depth insights into network availability, latency, and bandwidth utilization over time. This historical perspective is crucial for understanding network behavior and identifying recurring issues.

Dashboard

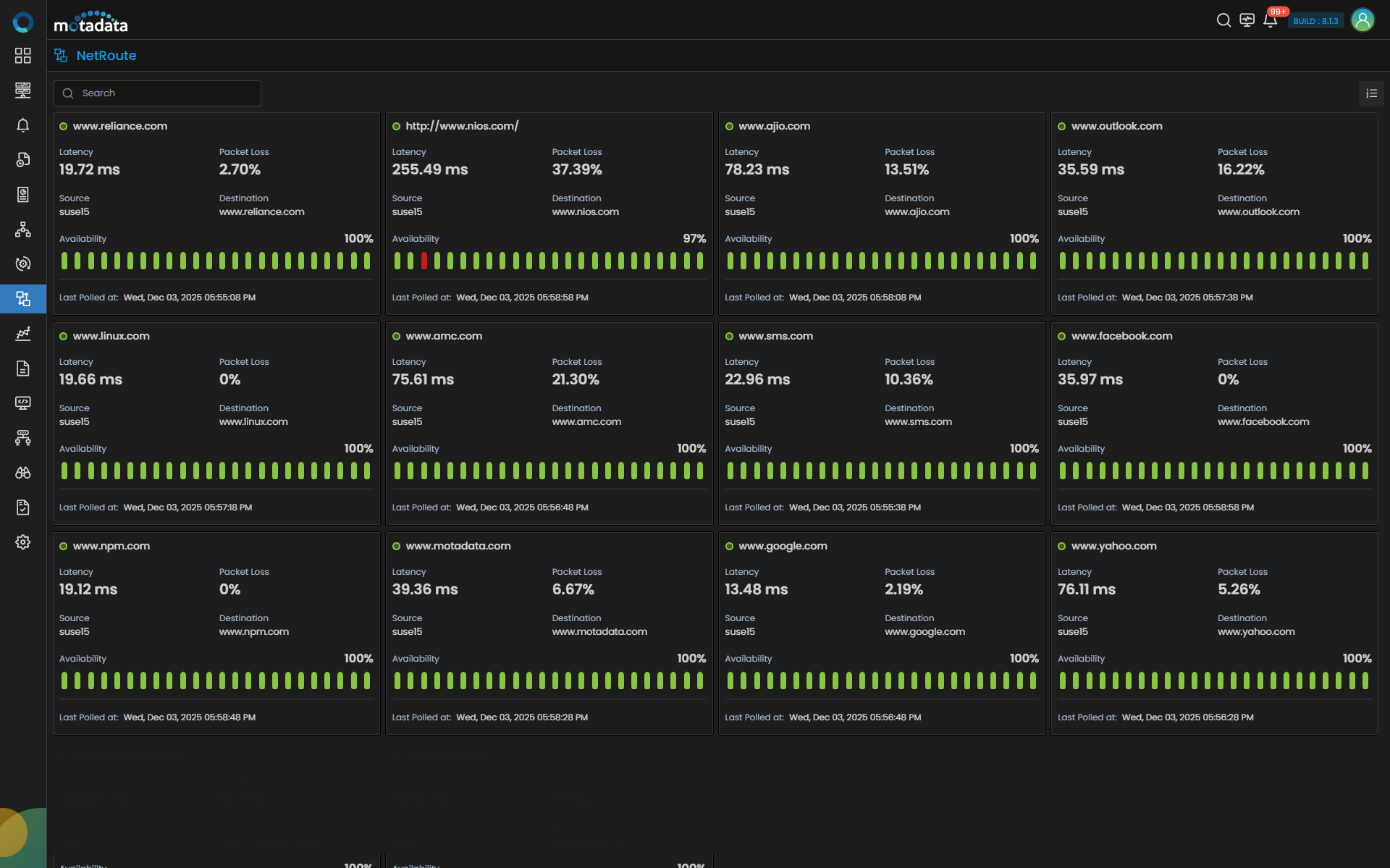

NetRoute dashboard houses the list of all the configured network paths. It displays the path name, path source, path destination, connection port, and even the last polling timestamp.

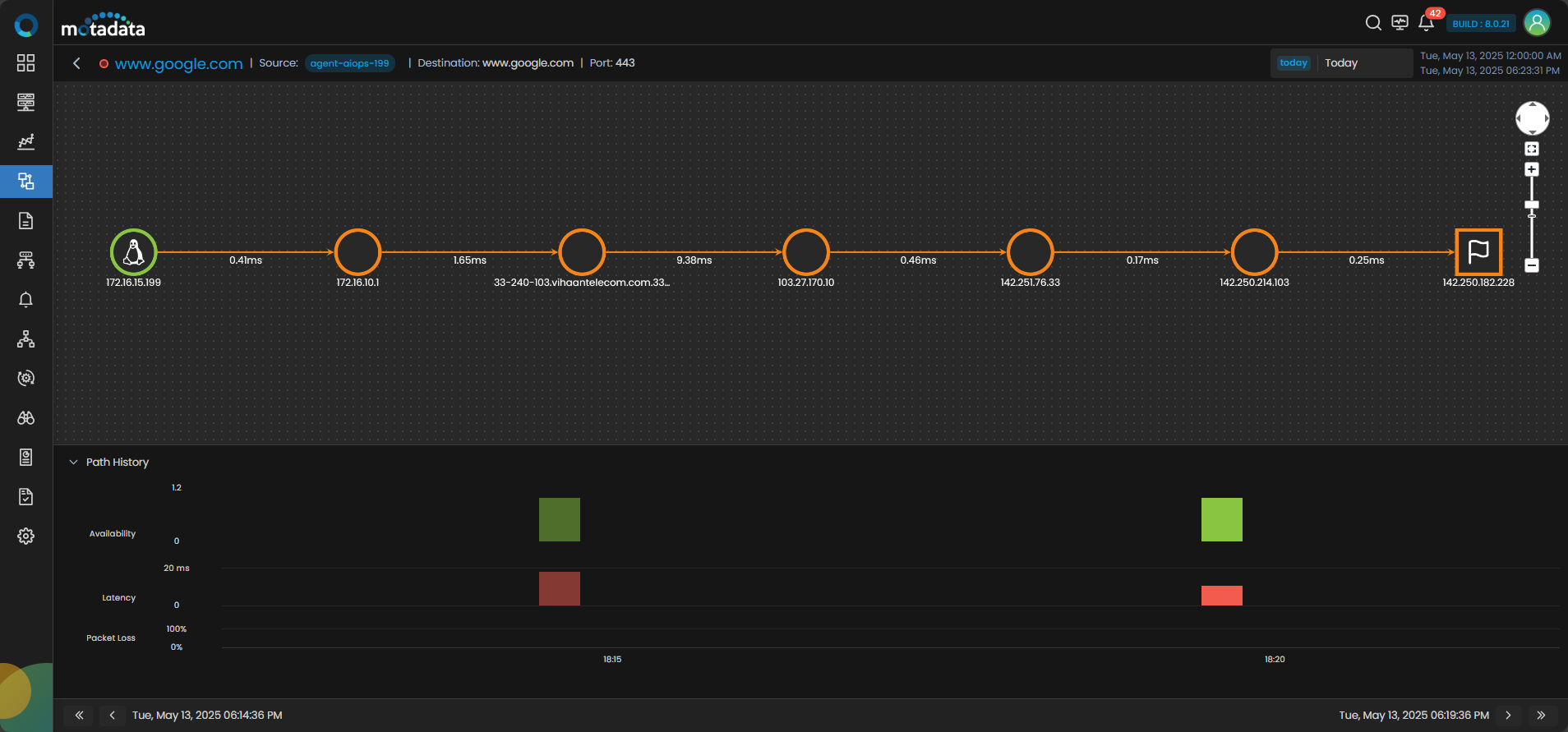

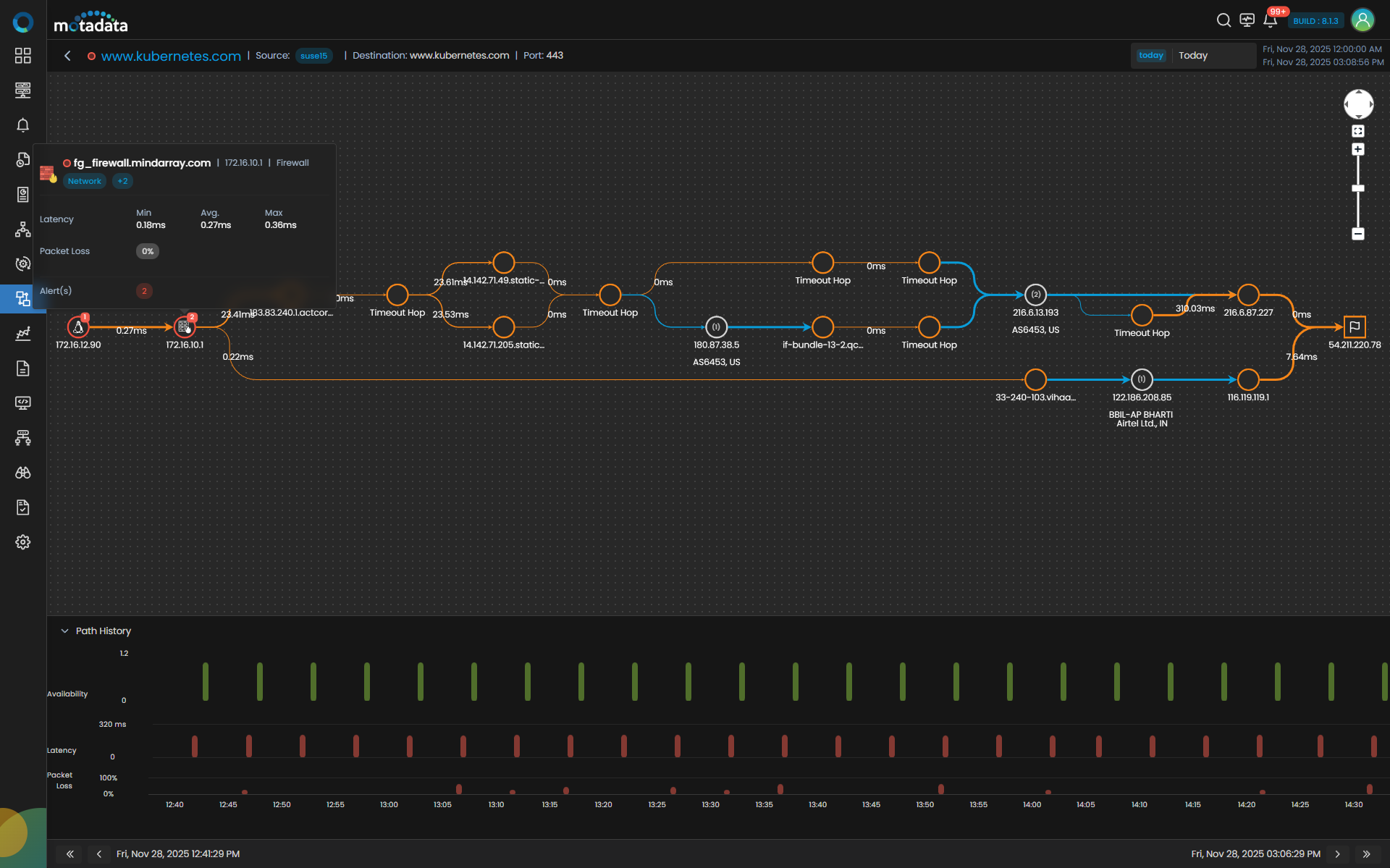

Clicking on a Route Name in the dashboard opens detailed information about the NetRoute, as shown in the image below.

Use the bottom bar to adjust the time frame for better visualization of the bar chart. Click the and navigate by days, or use the and to shift the view by specific time intervals.
