Monitor Actions

Individual Monitor Actions are available for every monitor (in monitor’s details page). The actions are:

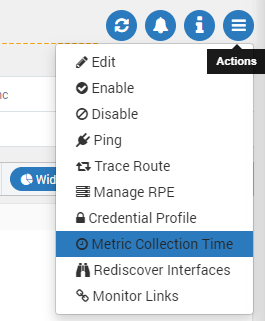

Monitor Actions for Individual Monitor

Edit

Edit the monitor by changing its properties on monitor’s IP address.

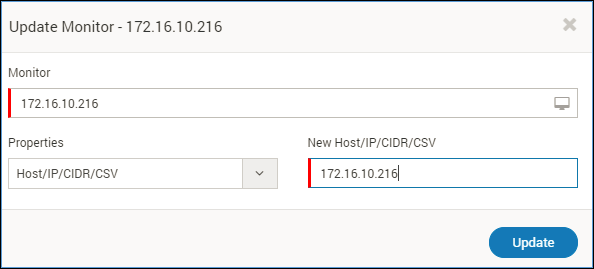

Update the Metric Name and details

Enable

This will enable the monitor. If you enable a monitor, Motadata will start polling its details. By default all monitors are enabled.

Disable

If you disable a monitor, Motadata will stop polling its details.

Ping

This is used to ping a monitor to know if the device is up or down. Ping details are as:

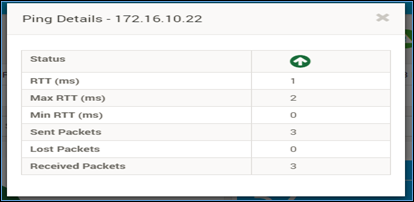

Ping details

Trace Route

You can find the hop count and RTT in MS if you trace route for the destination monitor.

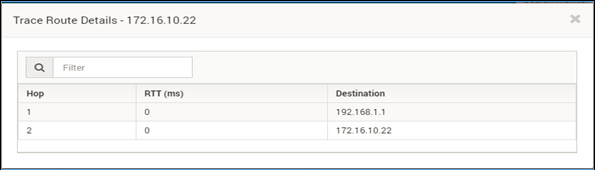

Trace Route information

Manage RPE

RPE servers in Motadata are configured to be used either as standalone or in fail-safe approach. Based on your Motadata’s configuration, you’ll see either of the two options:

1. Either you’ll be able to select only 1 RPE from the list.
2. Or you’ll be able to select multiple RPE servers from the list.

The standalone mode is the legacy mode where you select which RPE should poll the monitor. In this fashion, you can assign only 1 RPE to the monitor. There are two choices while selecting the RPE:

• Select Master RPE
• Select Client RPE

note

Before moving from legacy RPE to fail-over Lite RPE configuration (or vice versa), move all your monitors to master RPE. Motadata uses Disconnect Timeout value (say 5 minutes) to determine the availability of RPE. If the client RPE doesn’t revert with poll data for 5 minutes, Motadata will consider it as down.

In Lite mode, you can select either master RPE server or multiple client RPE servers to poll your monitor. When client RPE servers are selected, Motadata uses round robin fashion to select RPE. This way when one RPE server is down, monitor is polled through another server. You can select list of client RPE servers that will be used for polling.

You can manage the RPE Admin > Distributed Monitoring

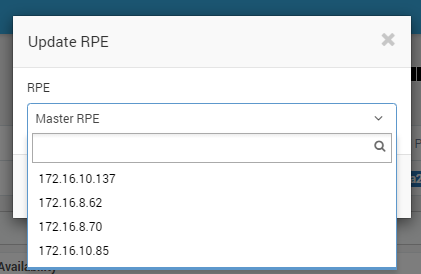

List of RPE in Standalone RPE Mode

Select Master or Lite RPE in Lite RPE Mode

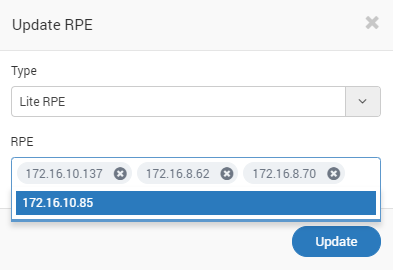

Select multiple monitors for Lite RPE fashion

Credential Profile

Assign credential profile for selected monitor. Credential profile comes into place during Network Discovery Settings.

Assign Credential Profile

Credential Profile List View

Metric Collection Time

You can assign the specific metric collection time. Motadata will poll the monitor at your defined interval. By default the metric collection time is set as 300 seconds. Click on the metric collection time and Motadata will display the current settings in a popup. Edit the settings to define new collection time.

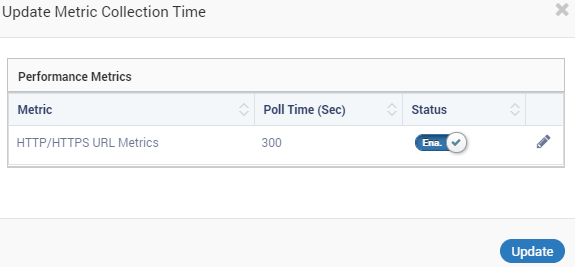

Metric Collection Time

Rediscover Interfaces

This section provides a functionality to discover only selected interfaces. For the first time, all interfaces will be displayed.

To rediscover a particular interface:

• Select Monitor > Actions > Rediscover Interfaces. select the interfaces you want to discover.
• The interface polls both 32 bit and 64 bit interfaces (only applicable for SNMP)
• Click Update.
• System will poll selected interfaces only.
• Selected interfaces will display in interface tab.

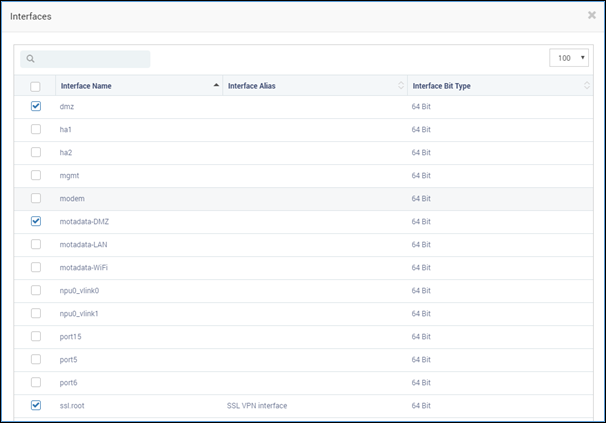

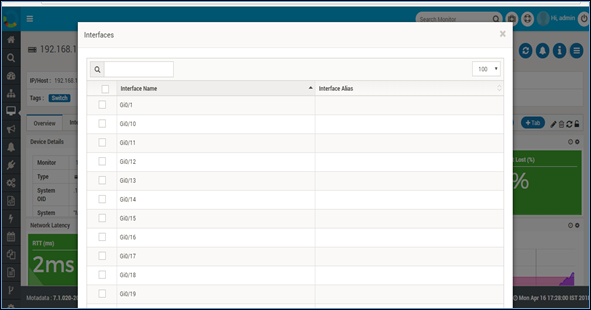

Rediscover Interfaces - Interface Selection Screen

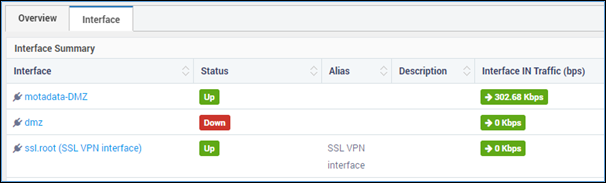

Rediscovered Interfaces in Interface Tab

Monitor Links

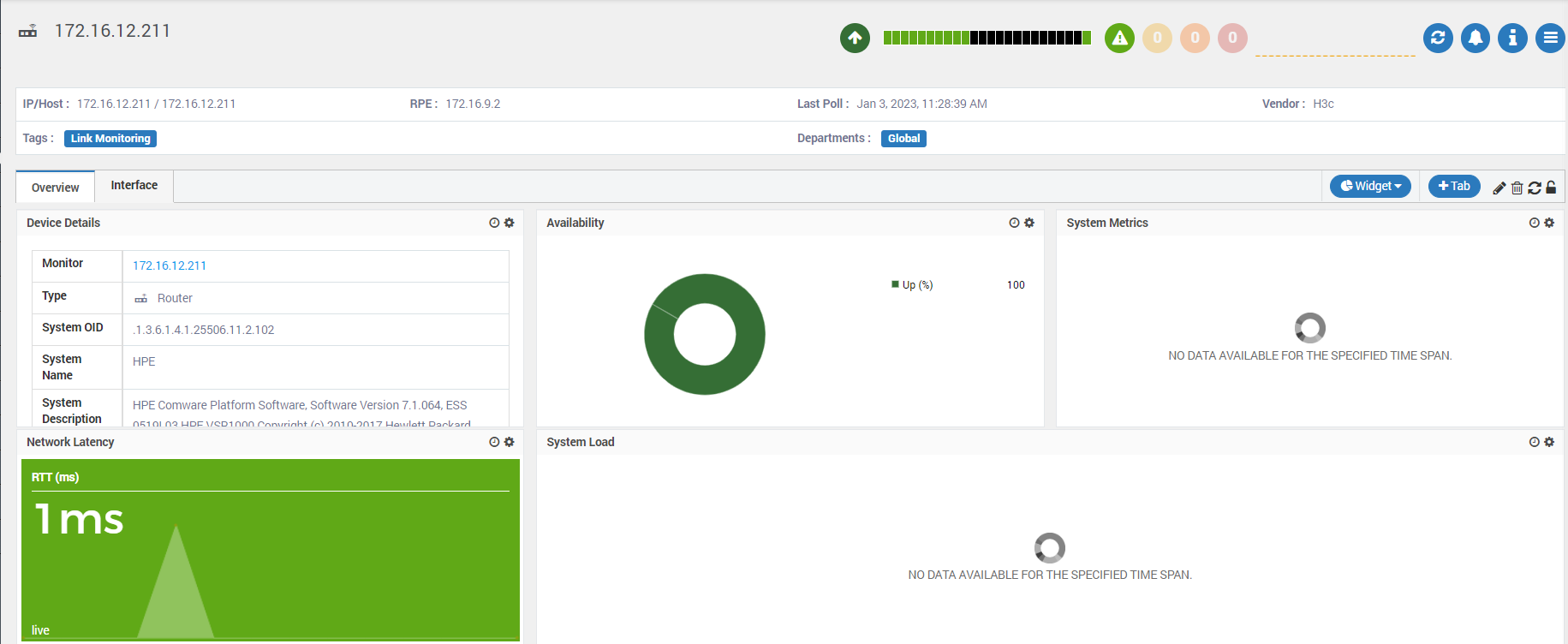

Here, the link status of the primary monitor (router) can be viewed. When other monitors are linked with the primary device the status of the device needs to be monitored. As shown below we can see the primary device’s present details and status:

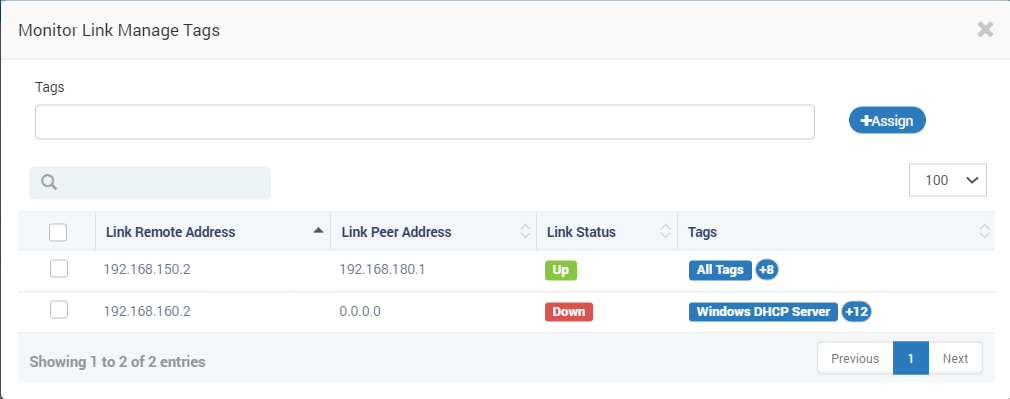

When the option of the Monitor Links in details page is clicked, it redirects to the available linked devices for monitoring. Here, the tags can also be associated with the monitors as per the requirement.
