Alerts Section

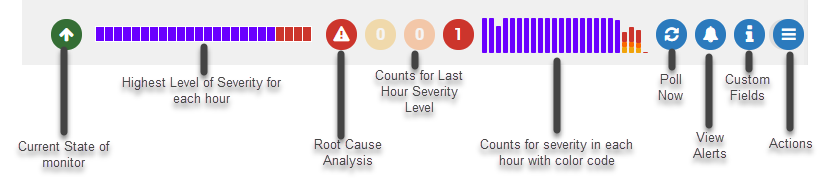

Options to see alert trends

Options to see Alert Trends

See the alert trend for quick analysis of monitor’s behavior in last 24 hours. Using the standard color codes of Motadata, the section shows the color of highest level severity in each hour. Starting from the left you’ll see:

  • Current state of monitor
  • Highest level of severity for each hour (of last 24 hours). Click on the bar to see the list of alerts triggered in that hour.
  • Root cause analysis to examine each alert in great detail.
  • Counts of the severity level for each color code. The count of severity is of current hour only.
  • Counts of the severity level for each hour in last 24 hours. The color of bar shows the highest level of severity for that hour.

Root Cause Analysis: Click on the icon to drill-down on monitor health: this will launch Root-cause analysis details for selected monitor.

Root cause analysis

Root Cause Analysis

User can further see alert details with alert state.

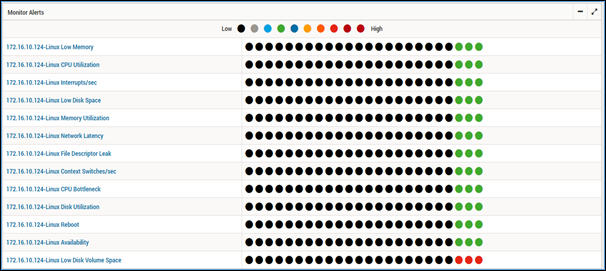

Alert Trends

Alert Trends

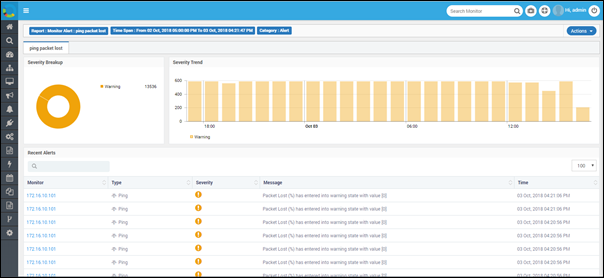

Click no the alert name to view details of a particular alert that contains Alert’s Severity breakup, Severity Trend and Recent Alerts.

detailed alert analysis

Poll Now​

To refresh the information in the monitor’s dashboard, click on button. This will poll the fresh details of the selected monitor.

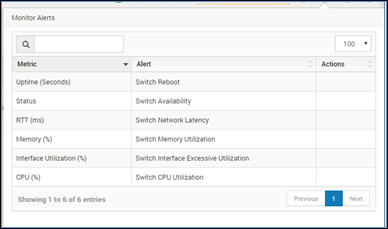

View Alerts​

You can view which alerts are configured for the monitor by clicking on button.

alerts of monitor

Alerts of Monitor

Custom Fields​

Custom Fields: User can set custom fields from admin section and same is displayed in monitoring. To view the custom fields, click on button.

list of custom alerts

List of Custom Alerts

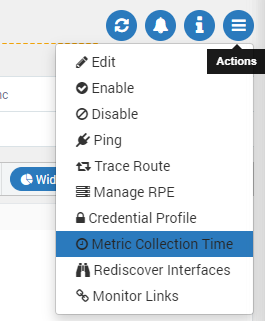

Actions​

Click on the Actions to see the options available for a monitor. The options may vary for different monitors (based on source).

Monitor Actions

Actions Menu for Individual Monitor
