Topology Builder Job

Topology builder job scraps the earlier topology diagram and creates a new one. This is useful when monitors in network are added/removed in random fashion. The topology diagram created by the job is out of any region/node (See Topology menu for details). However, if any monitor is already assigned to a region/node, the new diagram will not affect it.

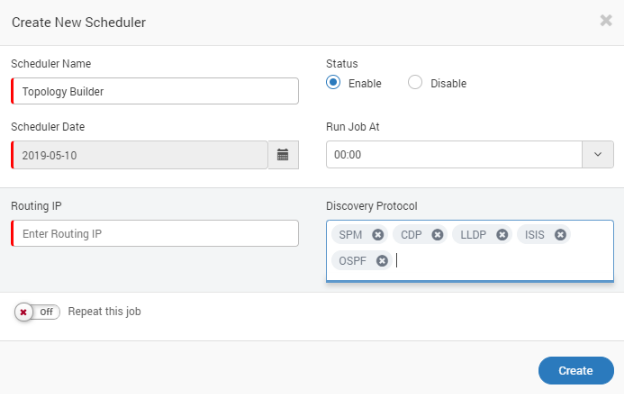

Scheduler for Topology Builder Job

Scheduler for Topology Builder Job

  • Routing IP: Enter the IP addresses (separated by comma and without space). The job will create a topology diagram around these IP.
  • Discovery Protocol: you can decide what monitors you want to see while creating a scheduler for Topology job builder. The protocols shows following type of monitors:
    • SPM: Monitors associated with all cisco devices.
    • CDP: Network devices connected with cisco devices and their current neighbours
    • LLDP: Network devices connected with other network devices (except cisco) and their current neighbours
    • ISIS: Shows all layer 3 devices
    • OSPF: Shows the layer-3 devices
