Create New Report

Report generation options are dynamic i.e. all reports include some widgets. Creating the report is a two step process:

1 Create the report template. 2 Add and manage the widgets in the template.

Create a Template

Create a new template by clicking on + Icon. You need to add the Report Name, Report category and the description.

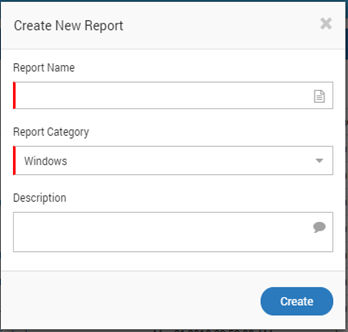

Create New Report

If the category is not available in the drop down, then simply type the name of the category. A new category will be automatically created when you click on the Create button. The template will appear as the blank template under the defined category.

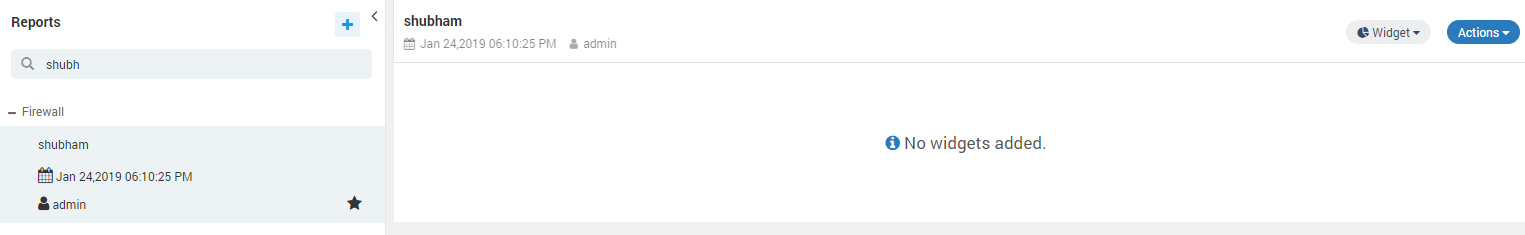

Blank Template

Once you have created a report, you need to add required widgets to the report’s dashboard.

Add Widgets in reports

Select Existing Widget

1. Search for the report and the widget you want to clone into your report
2. Click on the settings icon and then on Clone Widget icon. A popup will appear.

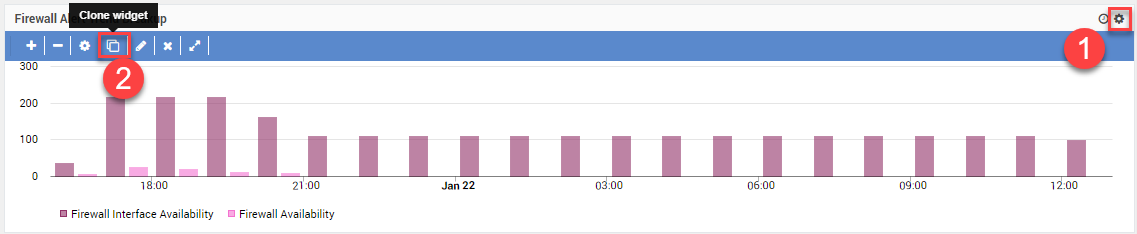

Clone Button in Widget

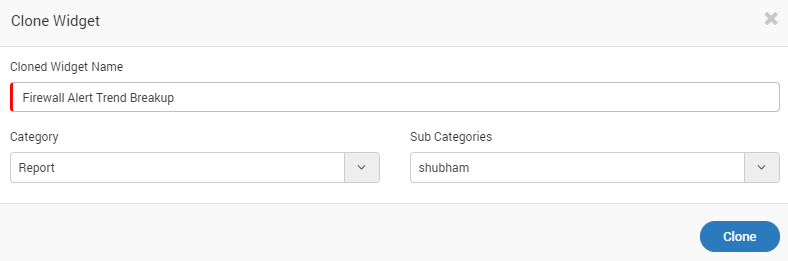

Popup for Clone Widget Settings

3. Change the name if you want.
4. In Category, select ‘Report’.
5. In Sub Categories, select your report.
6. Click ‘Clone’. The widget will appear in your report.

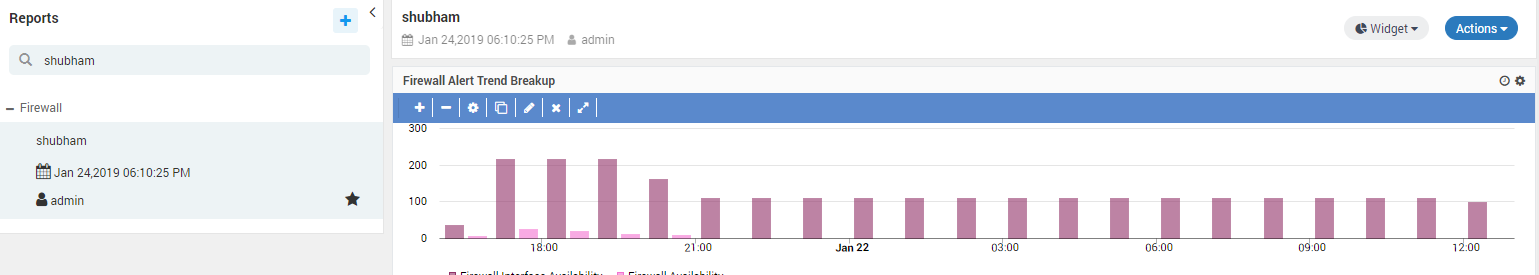

Widget Created by Cloning

Create a New Widget

You can create a new widget or select from existing widget. The widget can be from following types:

Report Widgets

• Metric: The following types of views are available for Metric:

  • Gauge
  • Historical
  • Top N/Least N
  • Grid
  • Metric

• Flow: The following types of views are available for Metric:

  • Gauge
  • Historical
  • Top N/Least N
  • Grid
  • Tree Map
  • Chord
  • Map
  • Chart

• Log: The following types of views are available for Metric:

  • Gauge
  • Historical
  • Top N/Least N
  • Grid
  • Tree Map
  • Chord
  • Map
  • Log

• Availability: The following types of views are available for Metric:

  • Gauge
  • Historical
  • Top N/Least N
  • Grid
  • Heat Map

• Alert: The following types of views are available for Metric:

  • Gauge
  • Historical
  • Top N/Least N
  • Grid
  • Heat Map
  • Chart
  • Map

• Health: Only Gauge is available.

Example: Availability Report

You can create an availability report for the monitors to see the trend of their availability. This report has following features:

• Custom Time Range: You can manage the time range of the report data in real time.
• Graphical Presentation: You can create the graphical representation of data to quickly compare availability of different monitors.
• Availability Trend: You can change the graph types (visualizations) in real time for analysis.

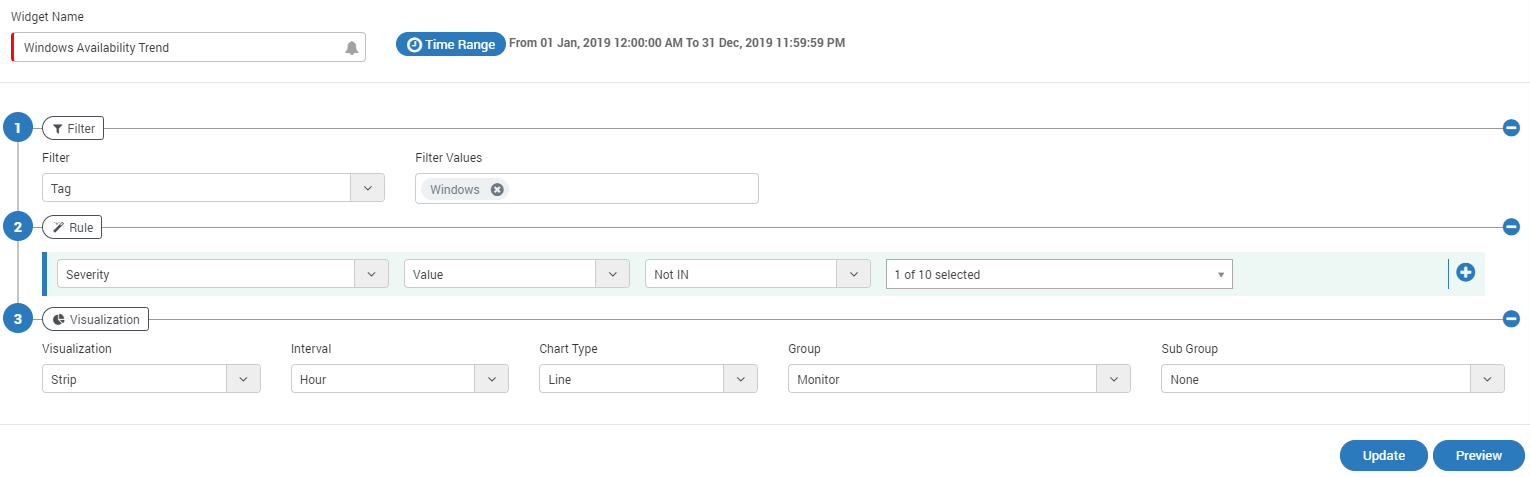

Create Availability Widget

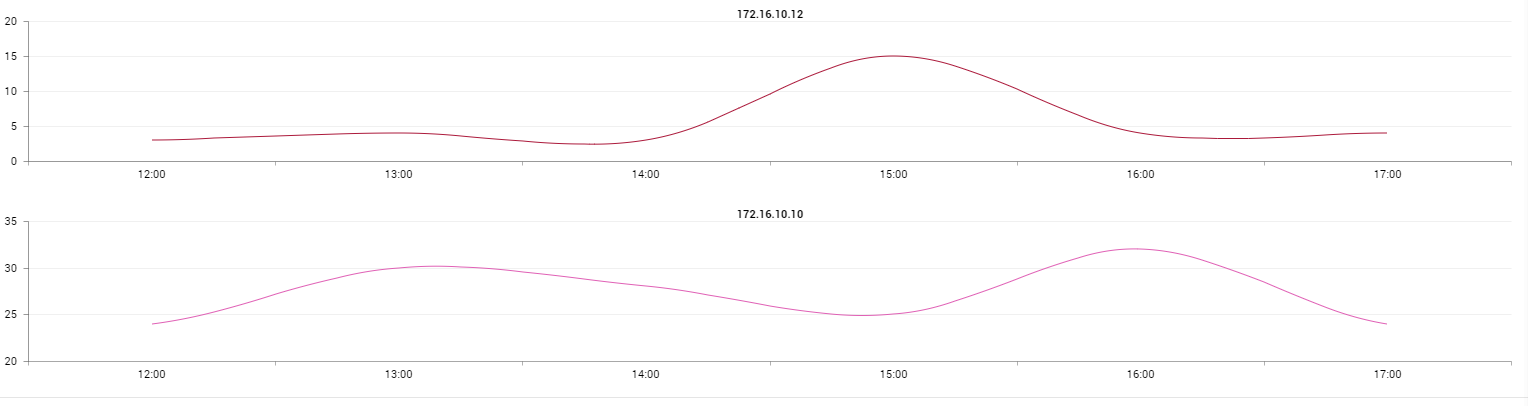

Availability Widget Example

Device Availability/Uptime Report Calculation

Polling Interval

The specific interval or the Polling Interval that is monitored for a device whether it is up or down is 2 minutes.

• The number of polls per hour = 30
• The number of polls per day = 720

Device availability calculation conditions

• For Report {From Date = 2022-01-01 00:00:00 and To Date = 2022-01-31 23:00:00}
• Polling Date {First Polling = 2022-01-01 00:04:00 and Last Polling = 2022-01-31 23:58:00}

Calculation

• min_time = first polling time - report from date= 4 mins

[If, min_time is less than 3 mins then we consider report from date otherwise we consider first polling time So here, we are considering time as first polling time]

• max_time = report to date - last polling time= 2 minutes

[If, max_time less than 3 mins then we consider report to date otherwise we consider last polling time So here, we consider time as report to date]

Thus, final time interval is (report to date - first polling time)

note

We have taken constant 3 mins time difference to decide whether to consider(while calculating time) report from/to date or first/last poll time (2 mins for standard availability + 1 min for buffer). If considered in worst conditions, the observed time difference maximum will reach to 6 mins in total time.

3600 seconds = 1 hour

86400 seconds = 24 hours

Report Calculation Formula

Availability Percentage = (Uptime Count) / (Total Count) * 100

Down percentage = (Downtime Count) / (Total Count) * 100

To calculate node availability count over a selected time period, the sum of all Polling Response Count for the mentioned node over the selected time period is divided by the selected time period. This provides an average availability over the selected time period. It must be noted that the availability duration is derived from the percentage and not vice-versa. The system calculates the average up and down percentage over a given time period, and is a standard practice amongst the most notable Network Monitoring Systems.

note

• If any difference is observed in decimal values, it will get added automatically to the difference in Uptime.
• Time will be stored in seconds for both hourly and daily calculation.
• Here, calculation of time is based on percentage. Thus, the sum amount of time of two months individually (manually) will not be equal to the sum of the two whole months.
