10.9.1. Custom Asset TypesΒΆ

We have introduced the concept of Asset Type Hierarchy to make cataloging of Assets simple. It is a predefined catalog of Asset Types, which serves the purpose of giving you a generic umbrella term for every Asset in the CMDB.

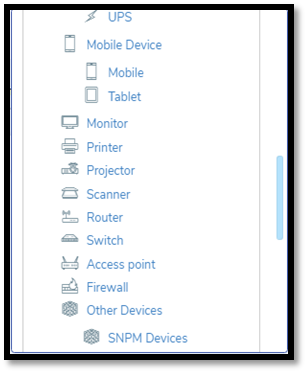

figure 134.1

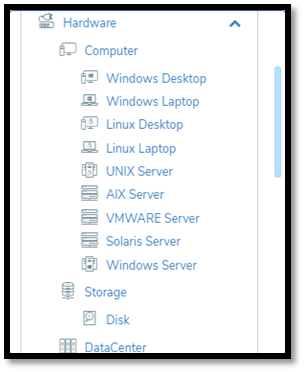

figure 134.2

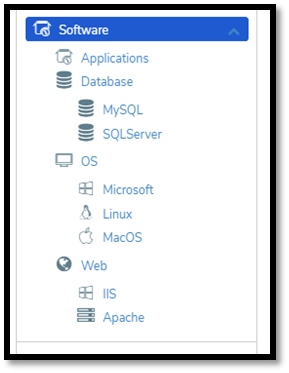

figure 134.3

Motadata allows you to add custom Asset Sub-Types in the Asset Type Hierarchy. You can create sub-types up to two levels.

To add an Asset Type:

  • Go to Admin (A Navigation Tab) >> Asset Types (Asset Management).

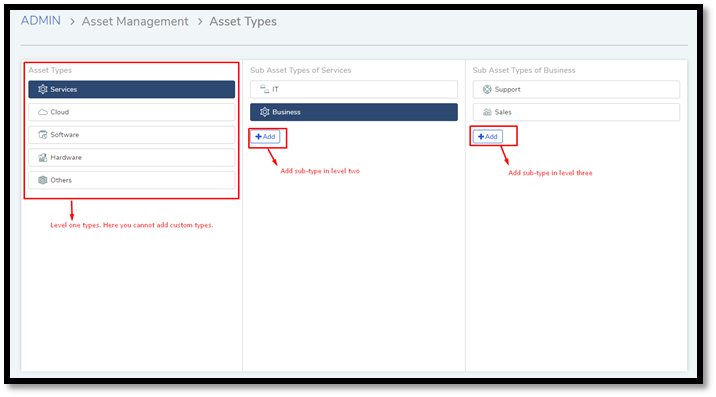

figure 135

  • The Asset Types page opens. Here you can add your sub-types in level two and three using the Add button. While adding the type, you can also add the icon file (max: 5 mb file size). The allowed file types are: JPG, JPEG.

Editing Custom Types

  • Go to Admin >. Asset Types.

  • You can change the name of any custom type using the Edit Icon or delete any type using the Delete Icon.

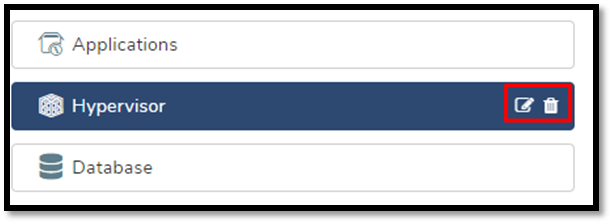

figure 136
