Monitor Slider

Monitor slider is a quick view of the monitor details. Click on the IP address/HOST name of the monitor to open the slider. Alternatively, you can click on the external link icon to open monitor-details page in a new tab.

note

Monitor sliders are available throughout the Motadata application. Click on the monitor name, anywhere in the application, it will open monitor slider.

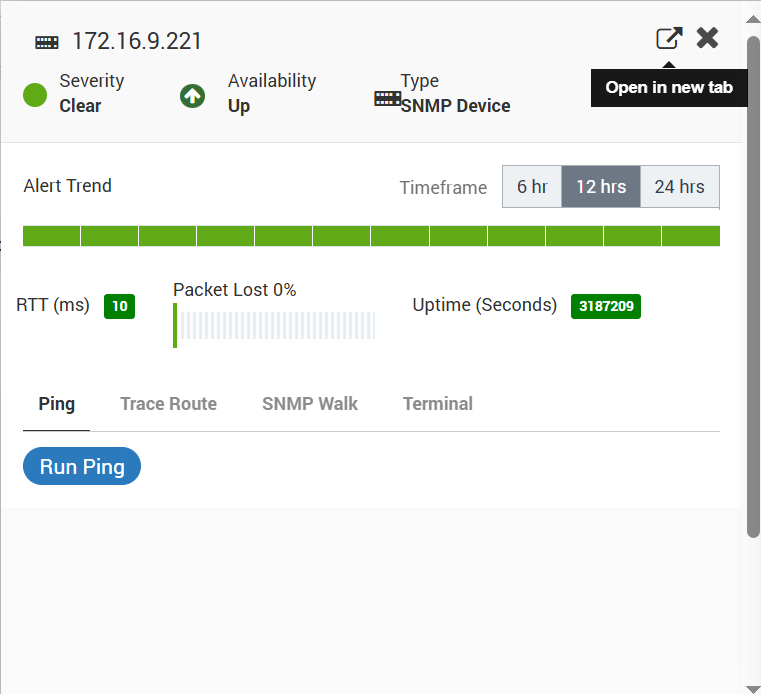

Monitor Slider

The slider contains following details:

  • Severity: Displays current severity of the monitor
  • Availability: Displays current availability of the monitor
  • Device Type: Shows the device type of the monitor
  • Alert Trend: Hourly alerts can be seen here in 6hrs, 12 hrs and 24 hrs timeline.
  • Plugin Metrics Parameter: You can monitor the real time plugin metrics information in monitor slider screen as per network device selection.

For example: For ping type network devices like: RTT, Memory and CPU, you can see the ping type plugin metrics information. In case when device is down, unreachable or has no information, metrics parameter will display N/A.

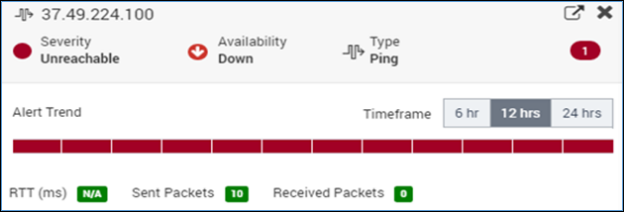

Metric Parameters when Device is Down

Metric Parameters when Device is Down

  • Ping, Trace, SNMP Walk, and Terminal: You can run ping and trace route for a network device; and ping, trace route, and SNMP walk for an SNMP device. Also, you can connect to the Terminal of the NCM device.

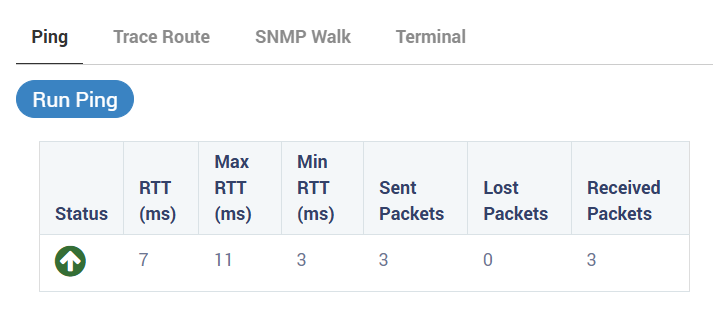

    • Ping: You can Run Ping for a device and it will display ping details as below:

run ping for device

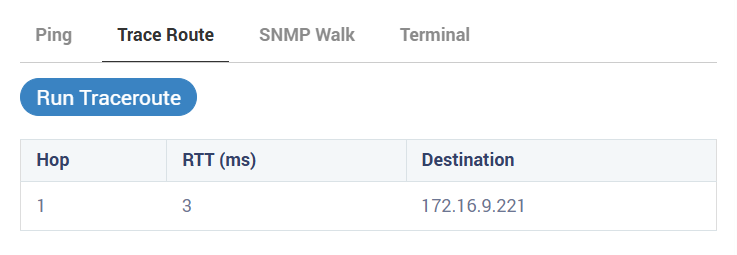

  • Trace: Trace route details can be tracked as shown below:

Trace route of device

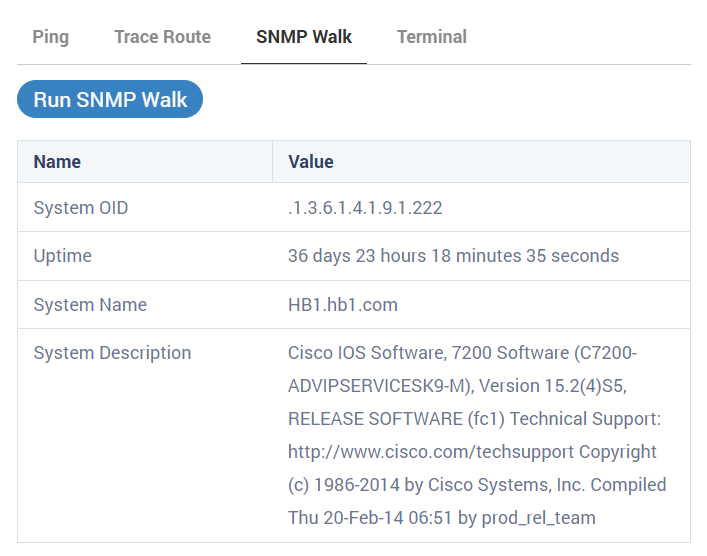

  • SNMP Walk: If you have any SNMP device in Motadata then SNMP walk option will be enabled and will display below information once you run it.

snmp walk values of SNMP device

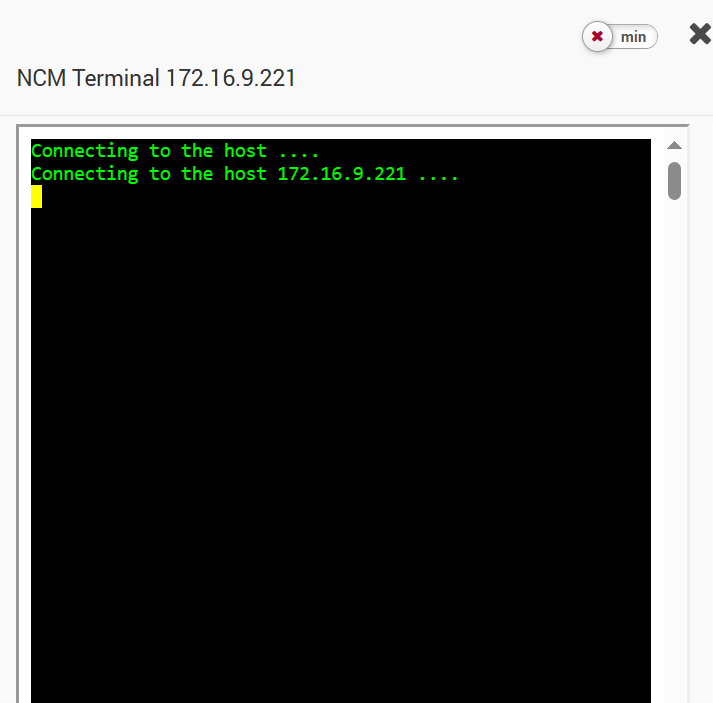

  • Terminal: You can connect to the terminal of the NCM device.
