Top 10 Interfaces by Traffic (Live)

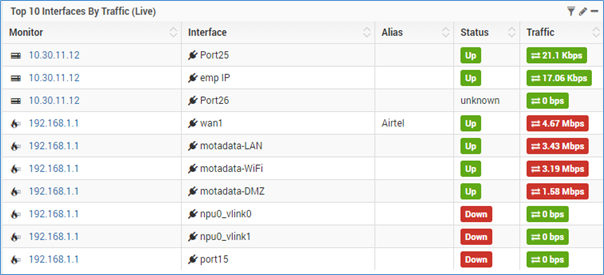

This widget lists top 10 interfaces based on the traffic associated with them. The widget shows the following details about the interface:

• Monitor: This field lists the names of the monitors. Click on the IP address of the monitor to see the in-detail view for that particular monitor.
• Interface: This field lists the interfaces associated with monitor.
• Alias: Alternative name for the interface defined in Firewall. It is blank when no alias is defined.
• Status: Status of the interface: Up or Down.
• Traffic: Overall network speed associated with the interface. It is calculated based on traffic transfer between two interfaces per unit second.

Additional Read: Widget Options

• Filter Widget
• Edit Widget
• Collapse Widget
• Export Data
