Amazon Redis

  • version: 7.7
  • Compatibility: v 7.7.7
  • Requires: Access Key (Mandatory), Secret Key (Mandatory), Metric Collector Interval - Seconds (Mandatory)
  • Operation: Collects information from Amazon Redis
  • Change from Last Version: Improvement: Added default template.

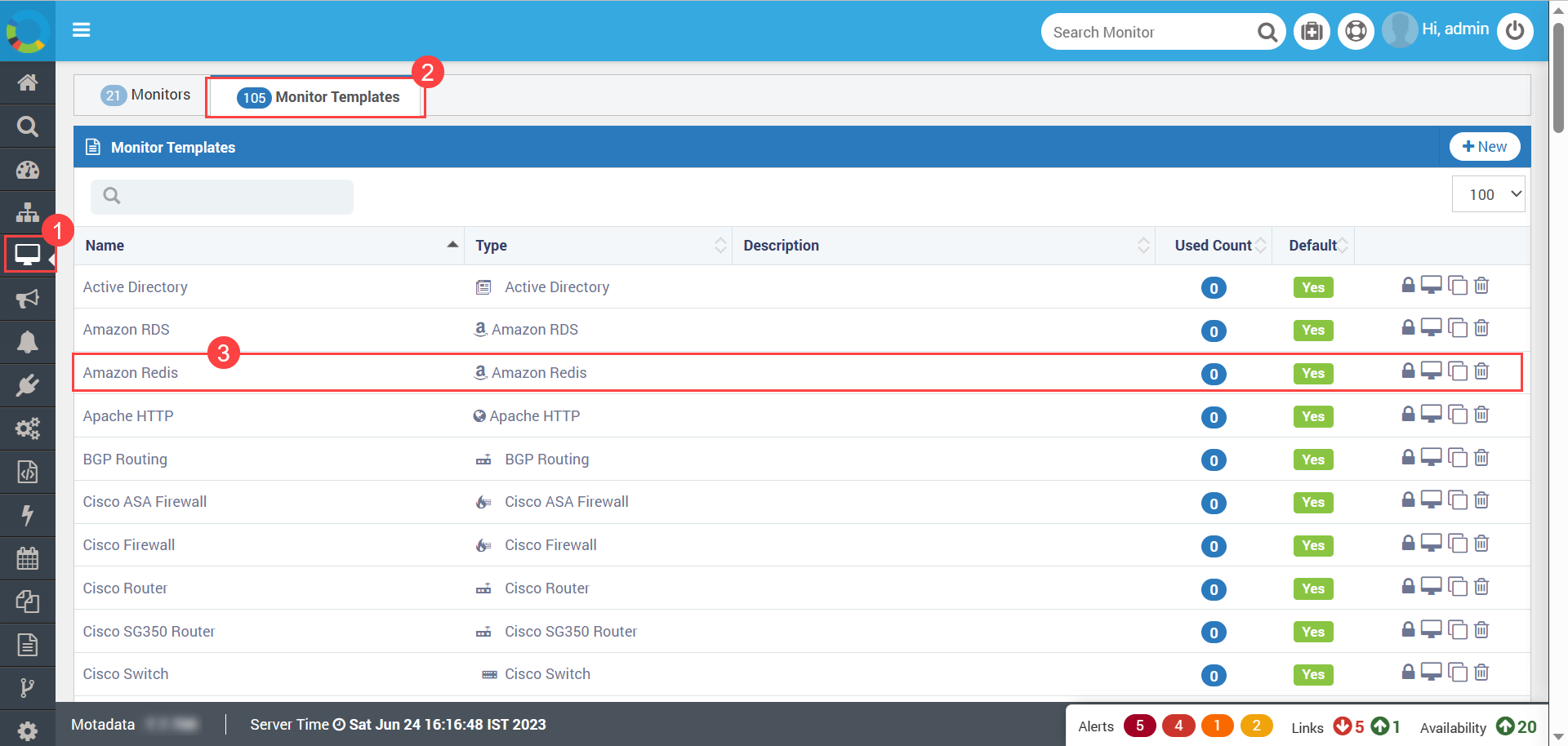

Default Template

  • version: 7.6
  • Compatibility: v 7.7.4
  • Requires: Access Key (Mandatory), Secret Key (Mandatory), Metric Collector Interval - Seconds (Mandatory)
  • Operation: Collects information from Amazon Redis
  • Change from Last Version: Bug Fix: Fixed the errors in plugin
  • version: 1.2
  • Compatibility: v 7.6.8
  • Requires: Access Key (Mandatory), Secret Key (Mandatory), Metric Collector Interval - Seconds (Mandatory)
  • Operation: Collects information from Amazon Redis
  • Change from Last Version: Improvement: Test Methods added for Demo Server
  • version: 1.1
  • Compatibility: v 7.5.3
  • Requires: Access Key (Mandatory), Secret Key (Mandatory), Metric Collector Interval - Seconds (Mandatory)
  • Operation: Collects information from amazon Redis.
  • Plugin-Metrics:
MetricData Type
Cache Cluster:String
Engine:String
Configuration EndPoint:String
Cache Parameter Group:String
Cache Parameter Apply Status:String
Cache Cluster Create Time:String
Replication Group Id:String
Auto Upgrade:String
Cache Cluster Status:String
Cache Nodes:Numeric
Client Download Landing Page:String
Preferred Availability Zone:String
Engine Version:String
Cache Node Type:String
Notification Configuration:String
Preferred Maintenance Window:String
Pending Cache Nodes:Numeric
Pending Modified Engine Version:String
Pending Removed Nodes:Numeric
Cache Used (Bytes):Numeric
Cache Hits:Numeric
Cache Misses:Numeric
Current Connections:Numeric
Evictions:Numeric
HyperLog Log Based Command:Numeric
Connections:Numeric
Reclaimed:Numeric
Replication (Bytes):Numeric
Replication Lag (Sec):Numeric
Save In Process:Numeric
Current Cache Item:Numeric
Get Type Commands:Numeric
Hash Based Commands:Numeric
Key Based Commands:Numeric
List Based Commands:Numeric
Set Based Commands:Numeric
Set Type Commands:Numeric
Total Set Based Commands:Numeric
Total Based Commands:Numeric
CPU (%):Numeric
Free Memory (MB):Numeric
Network Read (Bytes):Numeric
Network Write (Bytes):Numeric
Swap Memory (MB):Numeric
  • Cache Security
    • Cache Security Group:

Cache Security Group: String Cache Security Status: String

  • Data Models

data-models:

primary: 'Amazon Redis Metrics' instance:

  • name: 'Amazon Redis Cache Security Group Metrics' columns: 'Cache Security Group,Cache Security Status'
